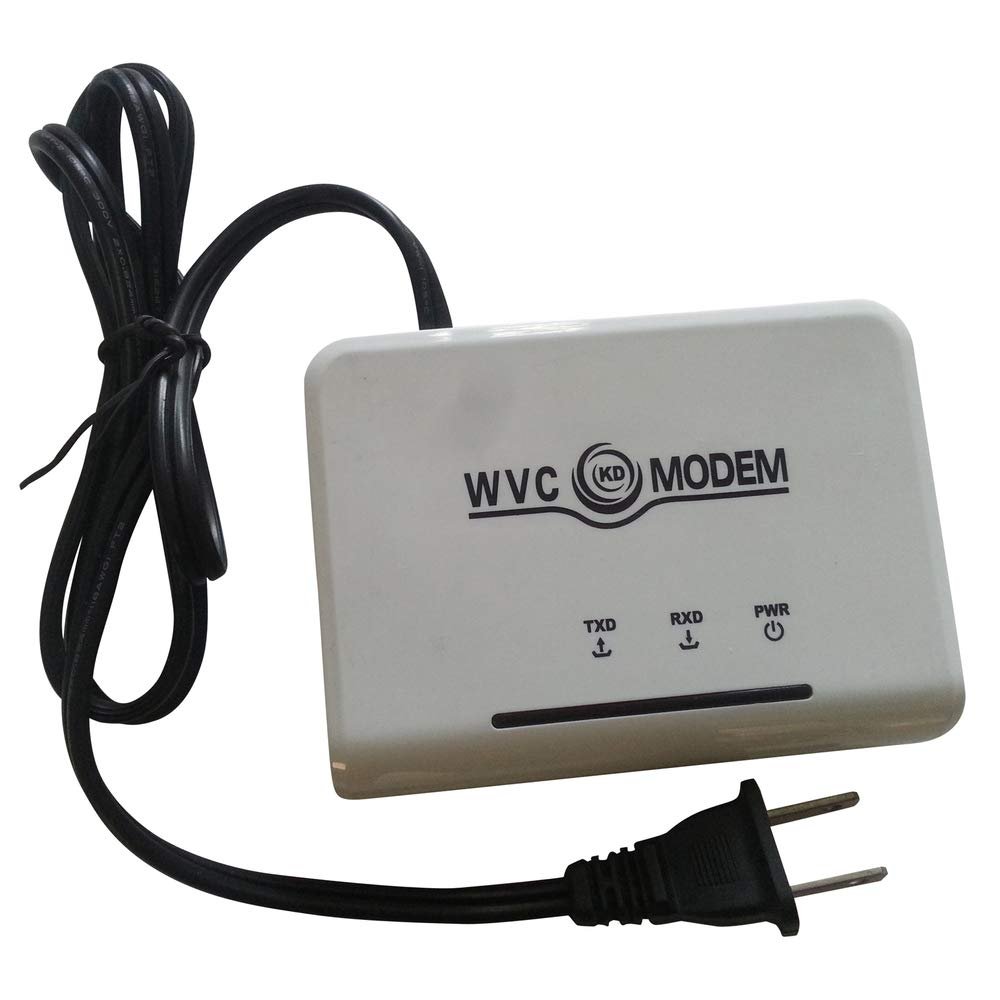

Gimax Solar System WVC MODEM for WVC Grid Tie Inverters communication monitoring system WVC- MODEM

Description

WVC-MODEMSpecifications:WVC Modem will start to wrok after power on. WVC Modem is a communication and data trunking.This modem is to collector the data between PC and micro inverter by power line communication.WVC Modem is the important component of communication power generating system. According to the applied characteristics, we design a WVC Modem which can monitoring and manage of 100 pcs micro inverter. 100pcs micro inverter and one WVC Modem make a group. In the same group, micro inverters and WVC Modem must be installed in the same phase circuit, and install 2mH filter behind inverter and Modem to prevent the communication interference between the different groups. WVC Modem have two standard interfaces , one is RS232 standard(the distance RS232 standard installation must not be more than 15 meters), the other is RS485 standard ( RS485 standard installation must not be more than 1200 m distance). We need according to the size of the power system and installation distance to choose the standard, we recommendationslike below:1.If the system has only one group and WVC Modem distance less than 15 meters, we can choose RS232 standardinterface.2. If the system have more than 1 group or WVC Modem installation distance is more than 15 meters, we need to choose RS485 standard interface.WVC Modem standard components including:1.WVC Modem unit (Integrated switching power supply/power line/plug)2.One RS232 serial connectionsWhenthe micro inverters is less than or equal to 100pcs in generation system, we only need to install one WVC Modem. The installation is very simple, just need using the serial port to connect the WVC Modem and computer, then plugged in power. Of course, the first premise is your computer needs a serial port(If there are no RS232 interface on your computer you need to buy the USB To RS232 connector then use the USB port to communicate directly.). And the deta
