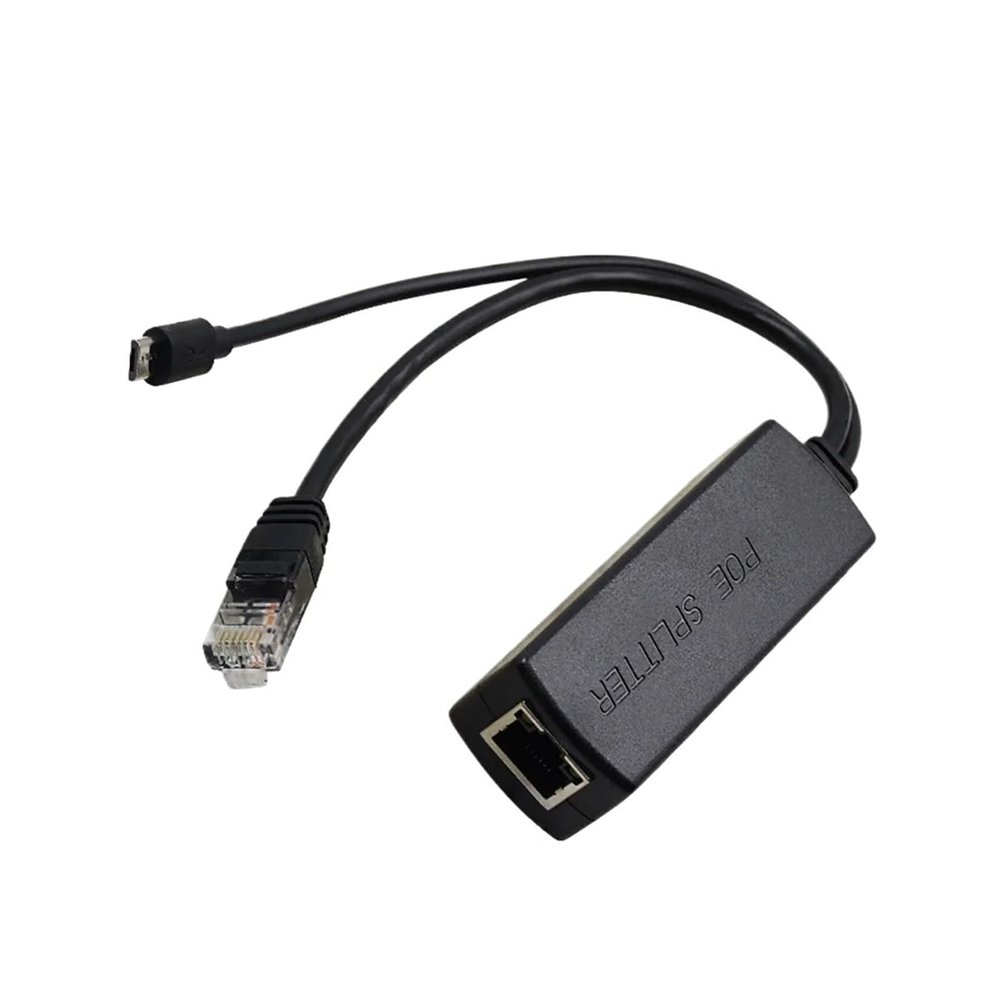

Gigabit POE Splitter 48V to 5V 12V USB/Type-C/DC 10/100/1000Mbps Power Over Ethernet(Type-C 5V 3A,1000Mbps)

Description

• Hubs

Hubs
Technical specifications
Model
EW-PD101G-AF-12
product name
10/100/1000M POE splitter cable;
working environment
Working temperature: -20-+60;
Working humidity: 20%-80%;
Storage temperature: -30-+60;
Storage humidity: 10%-90%;
PoE voltage input
44-57V;
Voltage output
DC 12V;
Connector
1 RJ45 input port
1 RJ45 output port
1x DC (5.5*2.1mm) output port
Rated output power
10W25.5W;
DC/DC switch
Support over-current and over-temperature protection;
Transmission bandwidth
10/100/1000M;
efficiency
81.5%;
Isolation function
support;
length
180 (mm);
Ripple and Noise
Output ripple 100mV Vppmax under normal voltage and current;
Power-on delay: power-on time 2s (maximum), undervoltage input DC 48V, output maximum load;
Rise time: 50ms (maximum), under DC 48V voltage input, output maximum load;
Safeguard
Short circuit protection: resume work after the load short circuit is removed;
Overcurrent protection: resume work after overcurrent is removed;
Overvoltage protection: When the voltage output exceeds 120% to 150% of the normal voltage, the overvoltage protection operates. Resume work after overvoltage is relieved;
Warranty
1 year warranty;
order information
Model
describe
unit
EW-PD101F-AF
10/100M POE splitter cable 13W;
1
EW-PD101F-AF-12
10/100M POE splitter cable 15.4W;
1
EW-PD101F-AT-12
10/100M POE splitter cable 25.5W;
1
EW-PD101G-AF-12
10/100/1000M POE splitter cable 15.4W;
1
EW-PD101G-AT-12
10/100/1000M POE splitter cable 24W;
1
EW-PD101G-AF-5
10/100M POE splitter cable 13W;
1
EW-PD101F-TYPEC-5S
10/100M POE splitter cable 10W;
1
EW-PD101F-TYPEC-5
10/100M POE splitter cable 15W;
1
EW-PD101G-TYPEC-5
10/100/1000M POE splitter cable 15W;
1
EW-PD101USB-AF-5S
10/100M POE splitter
