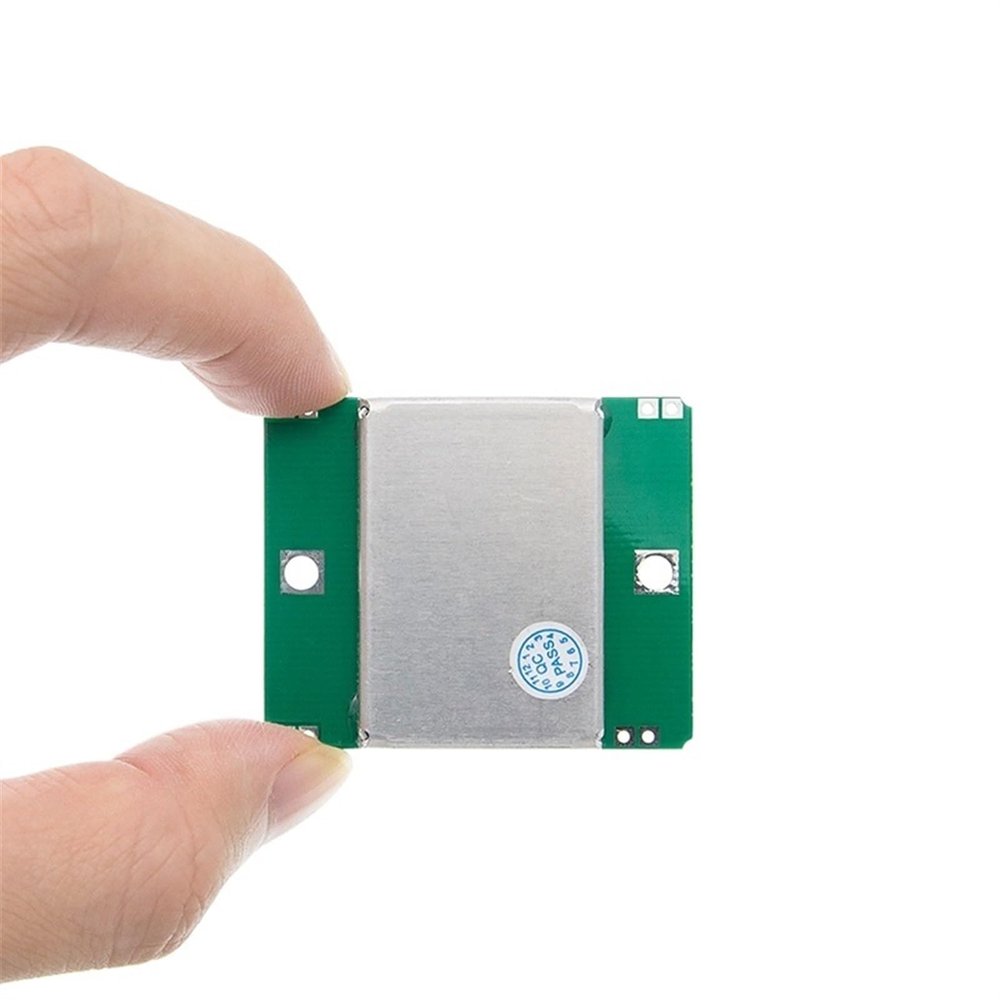

FWWQOE 10pcs HB100 Microwave Doppler Radar Wireless Module Motion Sensor HB100, Microwave Motion Sensor, Motion Detector

Description

• Sensors

Sensors
Description:
1, Size: 37mmX45mmX8mm
2, the main chip: HB100
3, work voltage: DC 5V
4,HB100 is the use of microwave Doppler radar module (Doppler Radar) design principles of the microwave detector moving objects, mainly used in automatic door control switches, security systems, ATM ATM automated video control systems, automatic train signal, etc. place. HB100 is the standard 10.525GHz microwave Doppler radar detector, the detection method compared with other detection methods have the following advantages: 1, non-contact detection; 2, independent of temperature, humidity, noise, air, dust, light other effects, suitable for harsh environments; 3, anti-RF interference ability; 4, the output power is small, constitute a hazard to humans; 5, distance: more than 20 meters detection range.
Feature
Launch:1 transmission frequency: 10.525 GHz
2 Frequency Setting Accuracy: 3MHz
3 Output power (minimum): 13dBm EIRP
4 Operating voltage: 5V 0.25V
5 Operating Current (CW): 60mA max., 37mA typical
<;-10dBm
7 Pulse mode:
8 average current (5% DC): 2mA typ.
9 Pulse Width (Min.): 5uSec
10 load cycles (Min.): 1%
Receiver:
1 Sensitivity (10dB S / N ratio) 3Hz to 80Hz band width:-86dBm
3Hz to 80Hz bandwidth of clutter 10uV
2 Antenna Gain: 8dBi
3 Vertical 3dB beamwidth: 36 degrees
4 horizontal 3dB beam width: 72 degrees
5 Weight: 8 grams
