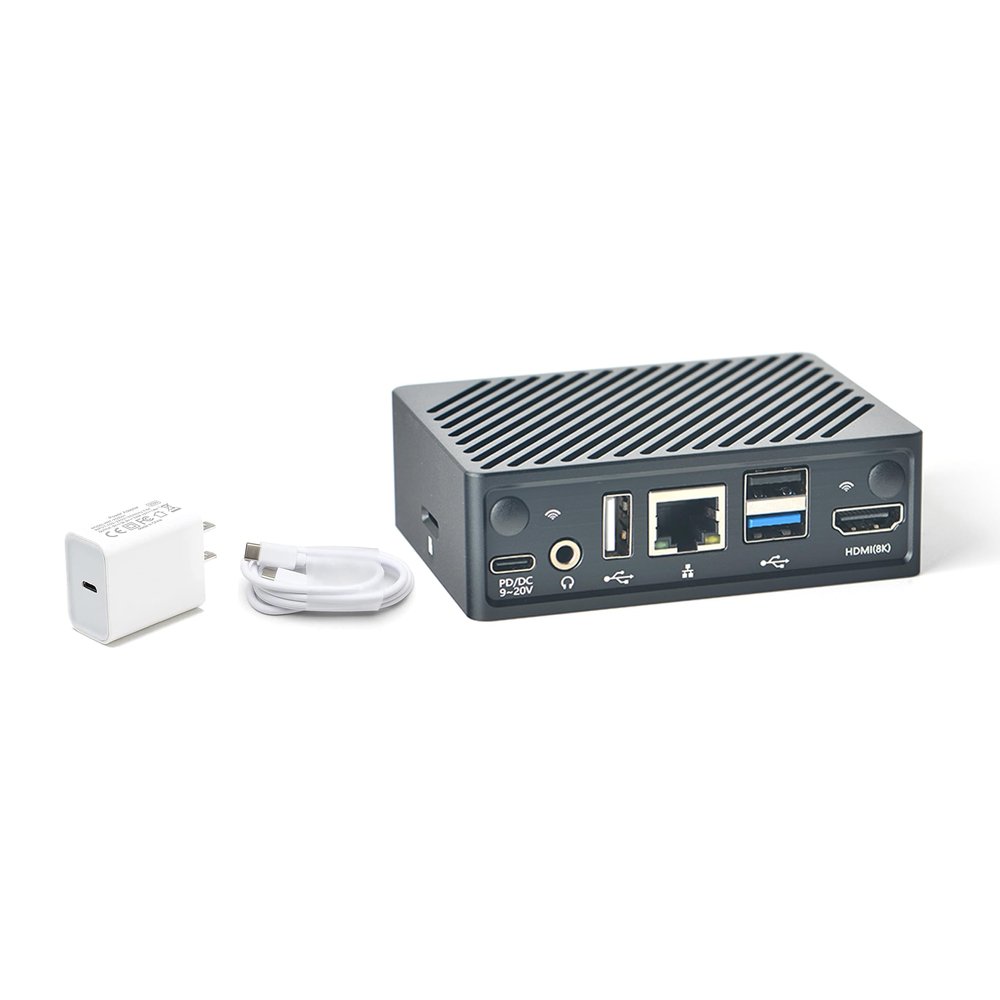

FriendlyElec NanoPi M6 Computer Mini Router OpenWRT, LPDDR5 4GB/16GB/32GB RAM, 6Tops NPU Mali-G610 GPU RK3588S SoC, for NAS, Smart Gateway and 8K Video Playing, Support Debian Ubuntu (16GB Metal Case)

Description

• [Portable Mini Router Smart Gateway] The NanoPi M6 is an open-sourced mini router smart gateway device. It is based on Rockchip RK3588S SoC (4 x Cortex-A76 up to 2.4GHz and 4 x Cortex-A55 up to 1.8GHz), with Mali-G610 MP4 GPU 6TOPs NPU, and 4GB/16GB/32GB LPDDR5 RAM at 2133MHz. Flash: None onboard eMMC, but with eMMC module socket at HS400 mode. It also supports booting with TF cards,with microSD socket up to SDR104 mode.
• [Open Source Programmable] NanoPi M6 computer mini router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS network storage device, smart home gateways, cloud server and more. It offers endless possibilities for geeks, fans and developers.
• [Rich Hardware Resources] The NanoPi M6 Single Board Computer has rich hardware resources with a compact size of 90 x 62 mm, a 30-pin header is provided to expose hardware resources for secondary development, including interfaces such as UART, GPIO, I2C, I2S, PWM and SPI, It alsa has 1x Native Gigabit Ethernet, 1x M.2 Connectors, 1x HDMI port, 1x M.2 NVME port and 3x USB ports., supports USB type-C power delivery.
• [Wide Range of Applications] The NanoPi M6 mini router is an ideal portable drive for saving images and videos. It built-in microphone, easily build intelligent products such as voice recognition, more choices for users. NanoPi M6 LCD Combo integrated with 3.5-inch LCD, a universal terminal designed for Al applications. with CNC Metal Case.
• [8K Video Decoders and Encoders] The NanoPi M6 mini router support 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder. Enjoy the dynamic graphics in ultra-high definition and a center for gamers to play freely.
• [Extensive Software Support] NanoPi M6 mini router smart gateway works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well. More Flexibiity for Applications.
• [Wiki] Getting Started: "wiki.friendlyelec.com/wiki/index.php/NanoPi_M6#Get_Started".Any after-Sales Privems, Please Contory us by click Waypondev Store and Ask A Question or Leave the Message in our forum by "forum.youyeetoo .com/".

SoC: Rockchip RK3588S CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz) GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder NPU: 6TOPs, supports INT4/INT8/INT16/FP16 RAM: 64-bit LPDDR5 at 2400MHz Flash: eMMC module socket, at HS400 mode Ethernet: 1x Native Gigabit Ethernet USB: 1x USB 3.0 Type-A and 2x USB 2.0 Type-A M.2 Connectors one M.2 M-Key connector with PCIe 2.1 x1 for SSDs one M.2 E-key connector with PCIe 2.1 x1 and USB2.0 Host for Wi-Fi&BT microSD: support up to SDR104 mode Video input: 1x 4-lane MIPI-CSI V1.2 1x 4-lane MIPI-CSI D/C PHY Video output: 1x Standard HDMI output ports compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support displays up to 7680x4320 60Hz Support RGB/YUV(up to 10bit) format 2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1 Audio: 1x 3.5mm jack for stereo headphone output 1x 2.0mm PH-2A connector for analog microphone input GPIO: 30-pin 2.54mm header connector up to 1x SPI, 6x UARTs, 3x I2Cs, 1x SPDIFs, 4x PWMs, 20x GPIOs Debug: UART via 3-Pin 2.54mm header LEDs: 2 x GPIO Controlled LED (SYS, LED1) others: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Buttons: MASK, Reset, Recovery, Power one 5V Fan connector
