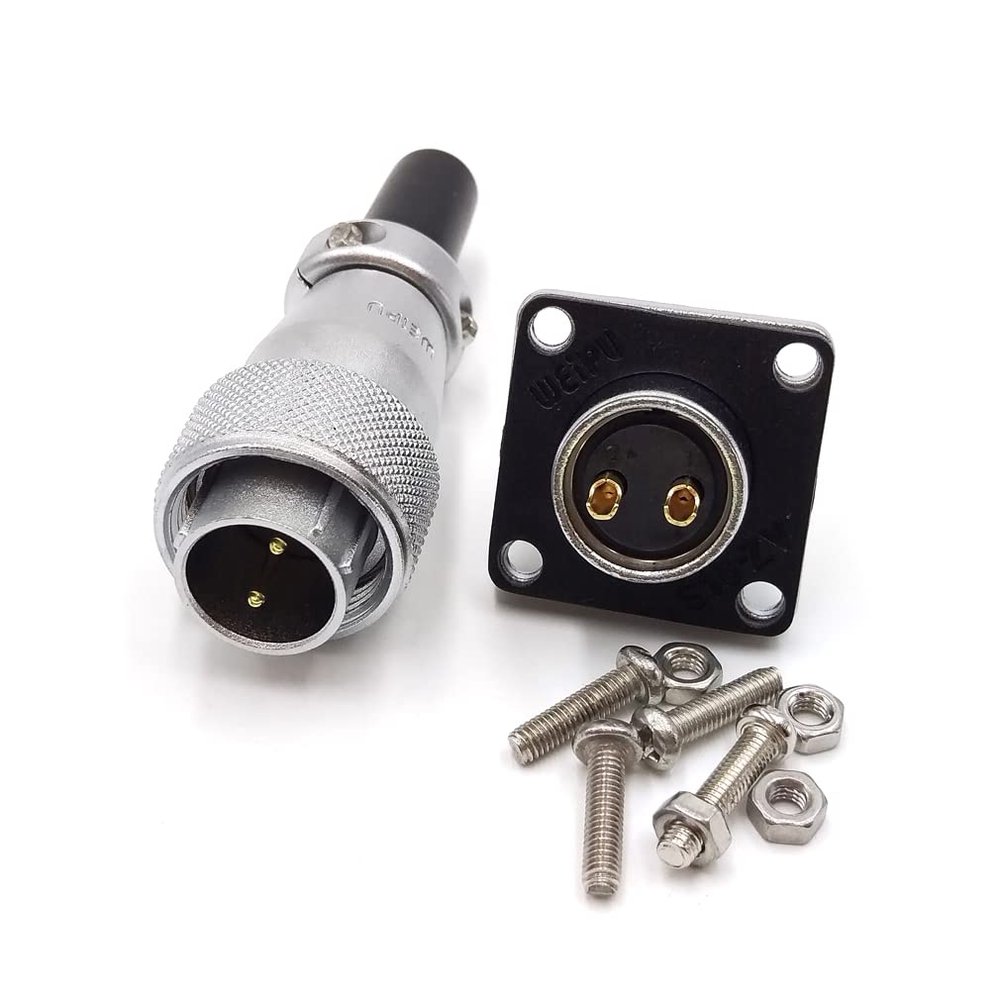

FORTTAR WEIPU WS16 2pin 3pin 4pin 5pin 7pin 9pin 10pin Waterproof Connector Male Female Metal Connector Panel Mount Connector Plug and Socket (2pin,Bulkhead, Male Plug)

Description

• WEIPU original WS16 2 3 4 5 7 9 10 pin aviation metal industrial power cable AC DC connector.(parameters refer to 2nd main picture or description)
• Options: male plug and female socket, female plug and male socket available. Instal type: thread panel, flange panel, square panel, inline docking.
• M16 16mm circular connector, with thread on mounting side to avoid depart during connecting.
• this connector is a weipu original connector, with CE certificate, if your project request UL or other cetificate, please contact to confirm the details.
• if your project request a different size, we have WS20, WS24, WS28, WS32, WS48, WS55 available, if you can not find those in our store, feel free to contact for details.

WEIPU original WS16 2 3 4 5 7 9 10 pin aviation metal industrial power cable AC DC connector.
(parameters refer to 2nd main picture or description)

WS16 seria options available
Instal type:
Flange panel mount
Thread panel mount
Square panel mount
Inline docking

Plug Type:
Male plug, female socket
Female plug, male socket

Pin available:
2 3 4 5 7 9 10 pin

2-pin, 3-pin:
Rated current (A): 10A
Contact diameter number: 1.5mmx2 / 1.5mm x 3
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mohm
Cable specification: <2.0mm/14AWG

4-pin, 5-pin:
Rated current (A): 5A
Contact diameter quantity: 1mmx4 / 1mmx5
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mohm
Cable specification: <0.785mm/18AWG

7pin, 9pin, 10pin:
Rated current (A): 5A
Contact diameter quantity: 1mmx7 / 1mmx9 / 1mmx10
Rated voltage (AC.V.): 400V
Withstand voltage (AC.V) 1 minute: 1200V
Contact resistance: 5mohm
Cable specification: <0.785mm/18AWG

What's in the package:
1 plug + 1 socket (screws included for square and flange panel type)
