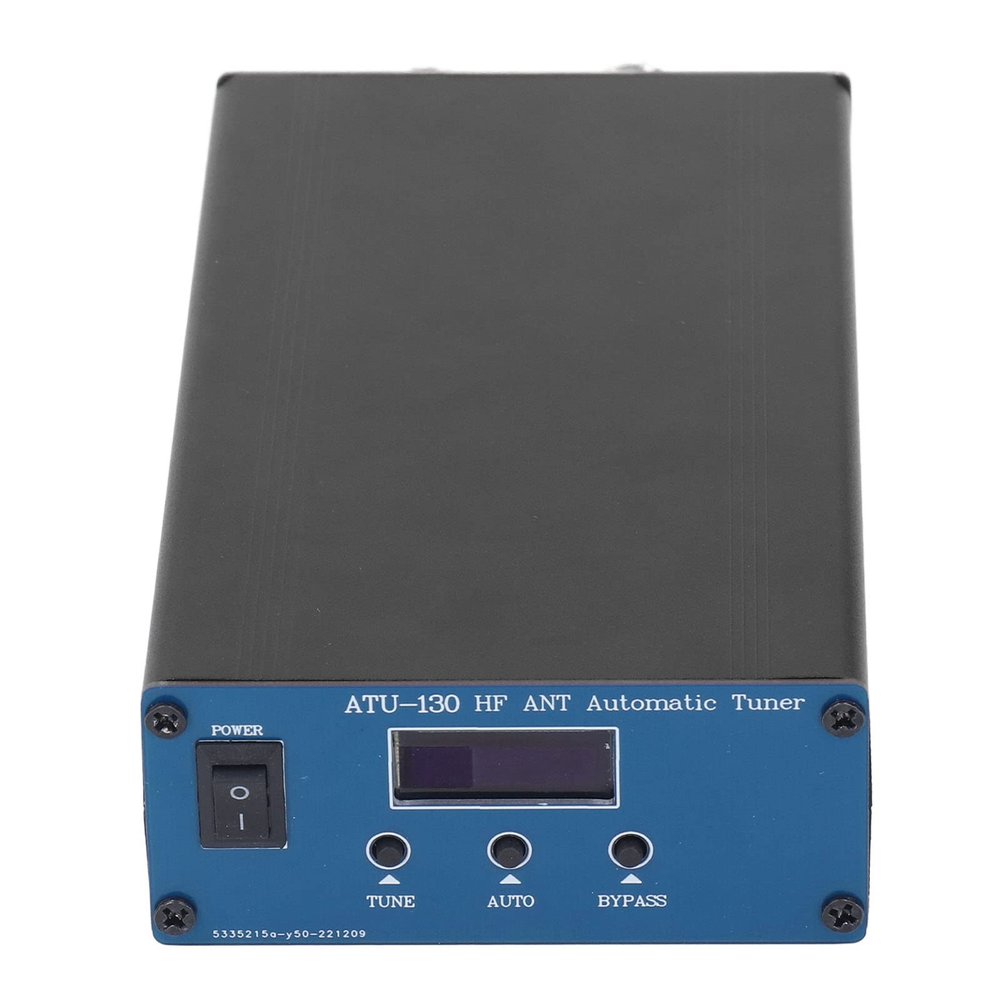

flexman ATU 130 Automatic Antenna Tuner, DC 10~15V 200W 1.8~50MHz Micro Shortwave Antenna Tuner Antenna Tuner with Organic Light Emitting Diode Display

Description

• ANTENNA TUNER: Miniature shortwave automatic antenna tuner, without any control line operation, suitable for most radio stations.
• EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced PIC chip and UHF connector to ensure stable performance.
• GOOD PERFORMANCE: Higher level capacitance, larger magnetic ring, thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.
• ALUMINUM ALLOY: The shell of the antenna tuner is made of aluminum alloy, with light weight, fast heat dissipation.
• COMPACT SIZE: The automatic antenna tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.

Item Type: Automatic Antenna Tuner
Model: ATU-130
Material: Aluminum Alloy
Power Supply Voltage Range: 10-15VDC (+in the center)
Maximum Current Consumption: 500mA
Maximum Working Power: 150W
Starting Tuning Minimum Power: 5W
Minimum Measurable Power: 0.1W
Measurement Accuracy Up to 10W Power: 0.1W
Measurement Accuracy Greater Than 10W Power: 1W
Maximum Installed Inductance: 8.53H
Minimum Installation Inductancee: 0.05H
Micro Automatic Antenna Tuner Features:
HF, 10A, HF33, 5A relays are used.
High voltage porcelain chip capacitor is adopted.
The maximum measurable value is SSB 275w. It is recommended that the SSB should not exceed 200w for a long time.
For other continuous modes, the power shall not be greater than 100W (FT8, CW, FM, when the standing waves deviation is large before adjustment, the power shall be reduced as appropriate, and it is recommended to use 10min interval for 5min).
Size: Approx. 38 x 88 x 155mm / 1.5 x 3.5 x 6.1in (excluding projections)
Weight: Approx. 0.5Kg / 17.6oz (portable, suitable for vehicle, indoor and outdoor fixation, etc.)
Tuning Impedance Range: 5-1.2K
Application: Can be used for long line (recommended), GP (recommended), inverted V, bipolar, end fed and other antennas to adjust standing waves and match short waves machine impedance.

Package List
1 x Antenna Tuner
1 x Cable
1 x Accessory
