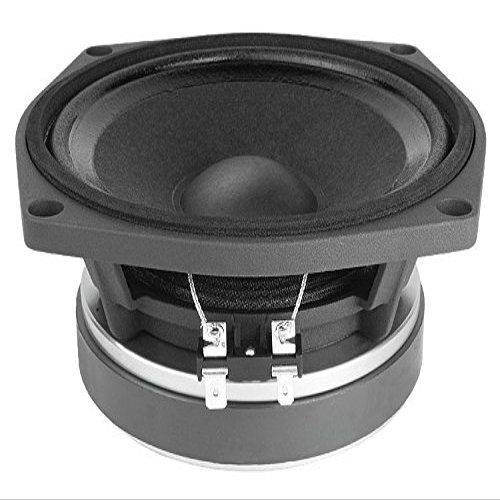

Faital Pro 6PR110 Faitalpro 6 Mid

Description

• FAITALPRO 6" MID

* Nominal Diameter 160 mm (6 in) * Overall Diameter 186.5/162 mm (7.34/6.37 in) * Bolt Circle Diameter 172 mm (6.77 in) * Baffle Cutout Diameter 147 mm (5.79 in) * Depth 80 mm (3.15 in) * Flange and Gasket Thickness 9.5 mm (0.37 in) * Net Weight 2.2 kg (4.9 lb) * Shipping Box: (Single Carton Box) 190 x 185 x 103 mm; (7.5 x 7.3 x 4.1 in) * Shipping Weight 2.4 kg (5.3 lb) * * Nominal Impedance 8 Ohm * Minimum Impedance 7 Ohm * AES Power Handling (1) 150 W * Maximum Power Handling (2) 300 W * Sensitivity (1W/1m) 96 dB * Frequency Range 100hz-6000 Hz * Voice Coil Diameter 37 mm (1.46 in) * Winding Material Al * Former Material Kapton * Winding Depth 7.5 mm (0.30 in) * Magnetic Gap Depth 6 mm (0.24 in) * Flux Density 1.35 T * Magnet Ferrite Ring * Basket Material Aluminum * Cone Surround (3) Half Roll * NET Air Volume filled by Loudspeaker 0.7 dm-3 (0.025 ft-3) * Spider Profile 1x constant height waves * THIELE AND SMALL PARAMETERS * Fs 100 Hz * Re 6 Ohm * Qes 0.60 * Qms 4.2 * Qts 0.53 * Vas 5.6 dm-3 (0.20 ft-3) * Sd 137 cm-2 (21.28 in-2) * Xmax (4) 2.75 mm * Xdamage (5) 11.6 mm * Mms 12.0 g * Bl 8.5 N/A * Le 0.22 mH * Mmd 10.2 g * Cms 0.20 mm/N * Rms 1.8 kg/s * Eta Zero 0.86 % * EBP 167 Hz * * PART NUMBER (P/N) * Faston Terminals - 8 Ohm Version 01604091 NOTES: * (1) 2 Hours Test According to AES 2-1984 Rev. 2003 * (2) Maximum power is defined as 3dB greater than nominal power. * (3) Treated Polycotton * (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) * (5) Maximum excursion before permanent damage
