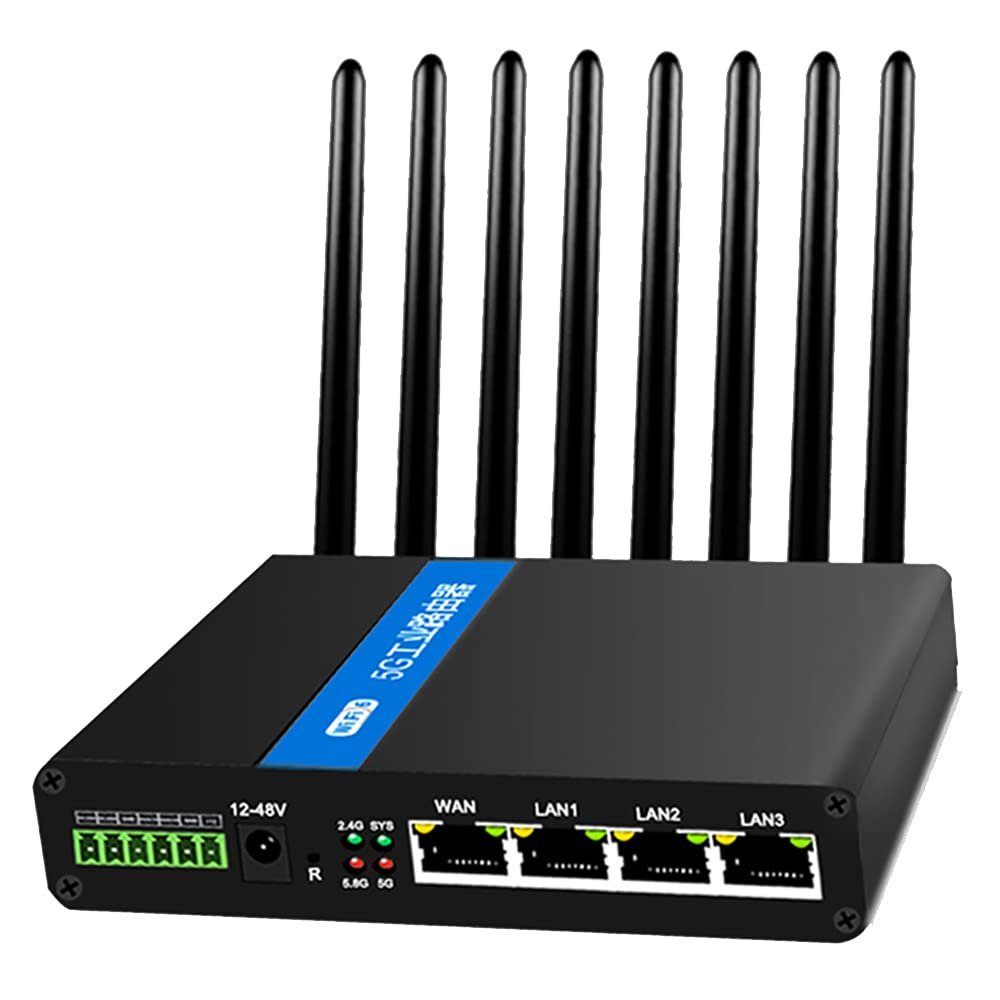

EXVIST 5G LTE Router with SIM Card Slot, Dual Band Wi-Fi 6 Router with 5G IoT Module M.2, Industrial 802.11ax Router, Wireless Speed Up to 1.8Gbps, 3X Gigabit LAN Ports, OFDMA, MU-MIMO (RM510Q-GL)

Description

• 5G industrial routers use high-performance industrial- grade 32-bit communication processors and industrial-grade wireless modules to ensure that the product can run stably for a long time in harsh environments without fear of challenges.
• Rugged metal shell, high protection, wide temperature and wide voltage, EMC4 level, can withstand extreme tempera -ture, voltage instability, high electromagnetic radiation,rain and dust attack and other harsh conditions, to ensure continuous communication between remote equipment and monitoring center.
• Support NSA and SA networks,compatible with all operators, including TD-LTE/FDD-LTE/TD-SCDMA/WCDMA/EVDO/CDMA1X /GPRS/EDGE and other seven network standards, can flexibly switch operators according to operational needs, more con -venient to select network and traffic are more economical.
• Widely used in the M2M industry, such as smart factories, smart medical, smart ports, new media video transmission etc.
• In the field of industrial control, it supports VPN function and serial port transparent transmission function, and provides remote upload and download programs and remote connection functions for various brands of PLC.

Features
880MHz, Memory 128~256MB, Flash 16~32MB;
Adopt high-performance Qualcomm or Zhanrui 5G industrial -grade wireless module, support NSA+SA networking;
Dual serial port design, 1x RS232, 1x RS485, support serial port transparent transmission and serial command;
High-speed network port, 1x Gigabit WAN, 3x Gigabit LAN Support 12-48V DC wide voltage power supply;
Support APN/VPN (PPTP/L2TP/OPENVPN), private network group network frequency lock function; WDT watchdog design, timing restart, network disconnection detection function, to ensure system stability;
Built-in 1.5KV electromagnetic isolation protection for LAN port; Intranet penetration, base station positioning, channel optimization, high speed and low latency, remote control.
WiFi
Protocols: IEEE 802.11 b/g/n/ac/wifi6 ax
Transmission Rate: Up to 1.8Gbps
Security: Open Systems, Shared Key, WPA/WPA2 Authentication, WEP/TKIP/AES Encryption
Working Mode: AP, Client Working Mode
Transmission Distance: 100m(Depends on the actual environment)
Interfaces
WAN: 1x Gigabit WAN Port
LAN: 3x LAN Ports(10M/100M/1000M Adaptive MDI MDIX Port)
SIM Card Slot: 1x Drawer SIM Card Slot, Supports SIM/UIM Card in 1.8V/3V
Reset: 1x Reset Button
5G Antenna Ports: 4x 4G/5G Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;
2.4GHz Antenna Ports: 2x 2.4GHz Wi-Fi Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;
5.8GHz Antenna Ports: 2x 5.8GHz Wi-Fi Antenna, Impedance 50 Ohms, SMA Internal Hole Interface;
