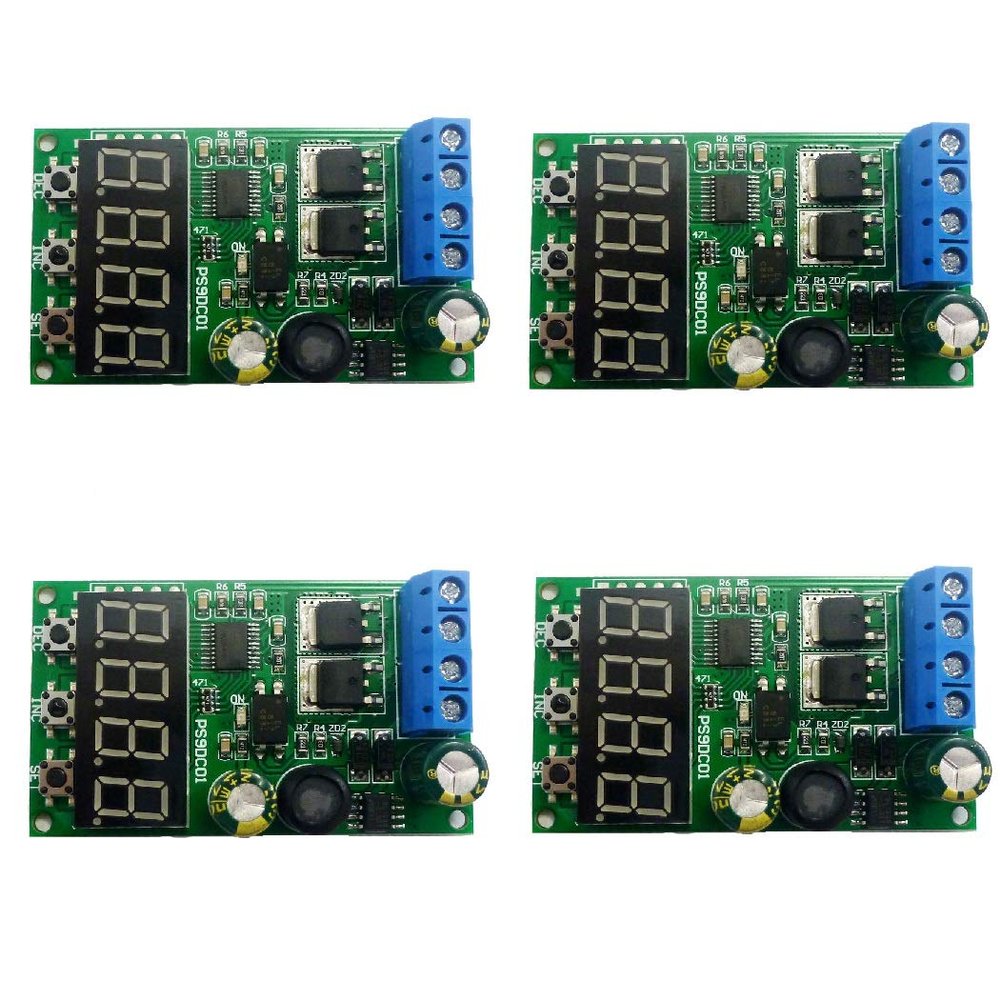

eletechsup 10A DC 6-30V Multipurpose Battery Discharge Protector Module for Lead-Acid Solar Battery Emergency Power Supply Mobile Power UPS (4)

Description

• Operating voltage: DC 6-30V.
• Operating current (12V): Standard mode, standby current 7MA; Working current 11MA;
• Energy-Saving mode,Standby current 4MA; Working current 7MA.
• Mode: Standard-Mode, Energy-Saving Mode, Setup-Mode, Voltage-Calibration, Factory-Settings.
• Can protect any 6-30V battery discharge, double N-MOS maximum load current: 15A (6-15V); 10A (15-30V) .

Product Name: 10A DC 6-30V Lead-acid Solar battery Emergency Power Supply Mobile Power UPS

Features:
1. Photoelectric isolation can effectively protect the circuit board.
2. 1% high-precision divider resistors make the measurement voltage more accurate.
3. Voltage accuracy and resolution is 0.1V, and with a calibration function.
4. Reduce the brightness of the digital display, save energy and protect your eyes.
5. parameter power-down save, to avoid duplicate settings.
6. Set the Start Discharge Voltage(H) and Cutoff Discharge Voltage(L) to the lowest (<6V), which can be used as a voltmeter to measure 6-30V voltage.
7. It has Energy-Saving Mode and restore Factory-Settings.

Product Specifications:

Operating voltage: DC 6-30V.
Operating current (12V): Standard mode, standby current 7MA; Working current 11MA;
Energy-Saving mode,Standby current 4MA; Working current 7MA.
3 control buttons, 4 bit digital display, 1 LED charge indicator.
Mode: Standard-Mode, Energy-Saving Mode, Setup-Mode, Voltage-Calibration, Factory-Settings.
Can protect any 6-30V battery discharge, double N-MOS maximum load current: 15A (6-15V); 10A (15-30V) .
The default Cutoff discharge voltage 11.8V, Start discharge voltage is 12.2V(for 12V lead acid battery).
Size : 60 x 35x 16mm
Weight : 19.1g

Applications:

Car battery discharge protection
Solar battery discharge protection
Emergency power supply system
Lead-Acid Battery discharge protection
Electric Bicycle discharge protection
UPS Uninterruptible power supply
Portable Industrial and Medical Equipment
Standalone Battery Uninterruptible power supply
Lead-acid /Ni-Cd / Ni-MH / Li-ION /Li-PO /LiFe/PolymerLithium battery
