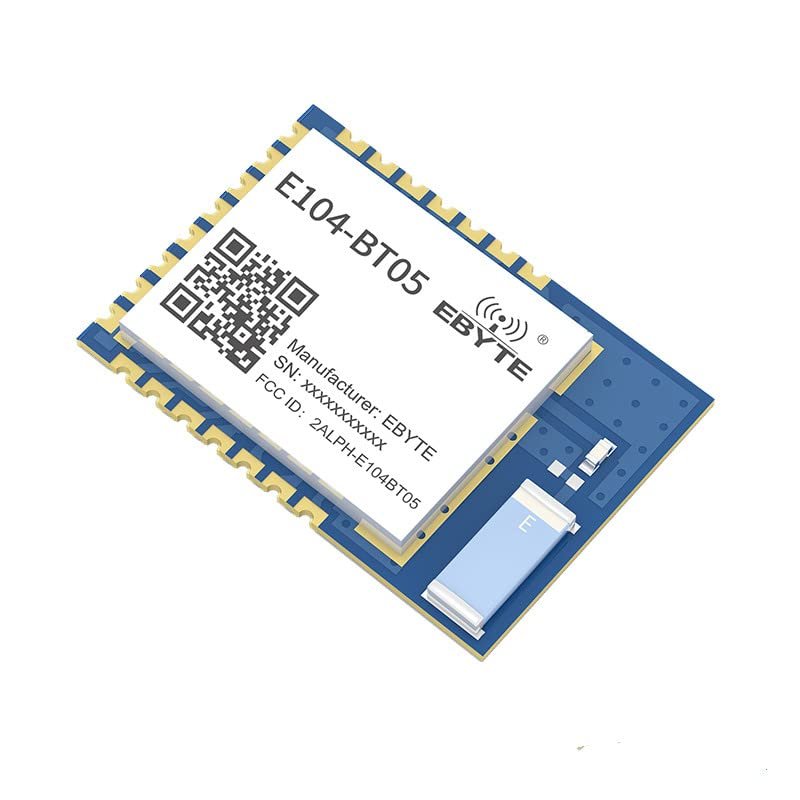

EBYTE TLSR8266 Bluetooth Wireless Module 2.4Ghz 8dBm E104-BT05 SMD IO Port Serial Data Transparent Transmission PCB Antenna

Description

• E104-BT05 is a serial-to-BLE Bluetooth slave module based on Bluetooth protocol version 4.2. It features with small size, low power consumption and works in 2.4GHz band.
• E104-BT05 module is based on TLSR8266 chip, which uses AT commands to set parameters, and it is easy and fast to operate. The module only supports Bluetooth slave mode. The module supports low power broadcast, data transparent transmission, air configuration, IO port level reading, IO port level setting and variable frequency PWM output.
• Modules can be widely used in intelligent wearable device, home automation, home security, personal health care, Smart home appliance, accessories and remote control, automobile, lighting, industrial Internet, intelligent data acquisition, intelligent control etc. Maximum support baud rate 256000bps data transmission.
• Application: Wireless Sensor for Meter Reading;Smart home;Industrial remote control and telemetry; Intelligent Building;Automatic Data Acquisition;Health sensor;Intelligent Wearing device;Intelligent Robot;Wireless Sensor;Electronic label;Intelligent Control

[IC] : TLSR8266
[Frequency] : 2.400~2.483GHz
[Protocol] : BLE 4.2
[Distance] : 70m
[Interface] : UART
[Weight] : 0.50.1g
[introduction] : E104-BT05 is a serial-to-BLE Bluetooth slave module based on Bluetooth protocol version 4.2. It features with small size, low power consumption and works in 2.4GHz band.E104-BT05 module is based on TLSR8266 chip, which uses AT commands to set parameters.
