DVB-T Digital TV Antenna Signal Meter with Buzzer for Precise Ground Signal Measurement 170-860MHz Frequency Range Portable Industrial Tool

Description

• [ALL-IN-ONE PACKAGE] - Includes 1 DVB-T Finder, English user manual, battery holder, and power cord for immediate setup and comprehensive signal measurement.
• [PRECISE ANTENNA ALIGNMENT] - Achieve optimal digital TV reception with high sensitivity and accuracy, ensuring you always select the location for your DVB-T antenna.
• [USER-FRIENDLY OPERATION] - Features built-in-compass for quick direction setting, buzzer with attenuation control, and clear numeric display for easy, real-time monitoringideal for beginners and professionals alike.
• [WIDE FREQUENCY RANGE] - Supports 170-860MHz and 65-95dBuv input levels, providing reliable performance across various broadcast signals; 75 impedance fits standard antenna connections.
• [PORTABLE DESIGN] - Compact (127 x 63 x 35mm), lightweight, and made from robust plasticperfect for use at home or in the field, fitting easily into any tool kit.

Features:
Experience precise antenna alignment with this DVB-T Digital TV Antenna Signal Meter, engineered for outstanding sensitivity and accuracy to help you secure the installation point for your DVB-T antenna.
Equipped with a built-in , the meter allows for swift direction adjustments, while the buzzer and attenuation control provide straightforward operation for users of any experience level.
The clear numeric display presents signal strength in real time, allowing you to easily monitor and fine-tune your antenna for peak reception performance.
Thanks to its compact dimensions and lightweight build, this device is easy to carry and s convenient use whether you're at home or on the move.

Operation:
1. Attach the antenna cable to the left F female connector and the battery pack cable to the right F female connector. Disconnect any other external devices that may currently be attached to the antenna.*
2. Observe the meter reading while adjusting the antennas position. The higher the reading, the stronger the signal. If the meter reaches the maximum, turn the level control knob clockwise to lower the reading to around 5, then continue moving the antenna until you achieve the possible reading.
3. Once finished, remove the meter and reconnect any devices as needed.

Important Tips:
- If your antenna includes a built-in (example: 01MM-SQ01), it is powered through an external supply via a DC . The DC should be positioned between the Finder and the antenna.

Specifications:
Part Name: DVB-T Finder
Color: Blue
Material: Plastic
Frequency Range: 170-860MHz
Input Level Range: 65-95dBuv
Impedance: 75
Insertion Loss: 5.0dB
Power Supply: 9-12V DC
Size: Approx. 127 * 63 * 35 mm / 5 * 2.48 * 1.38 inches

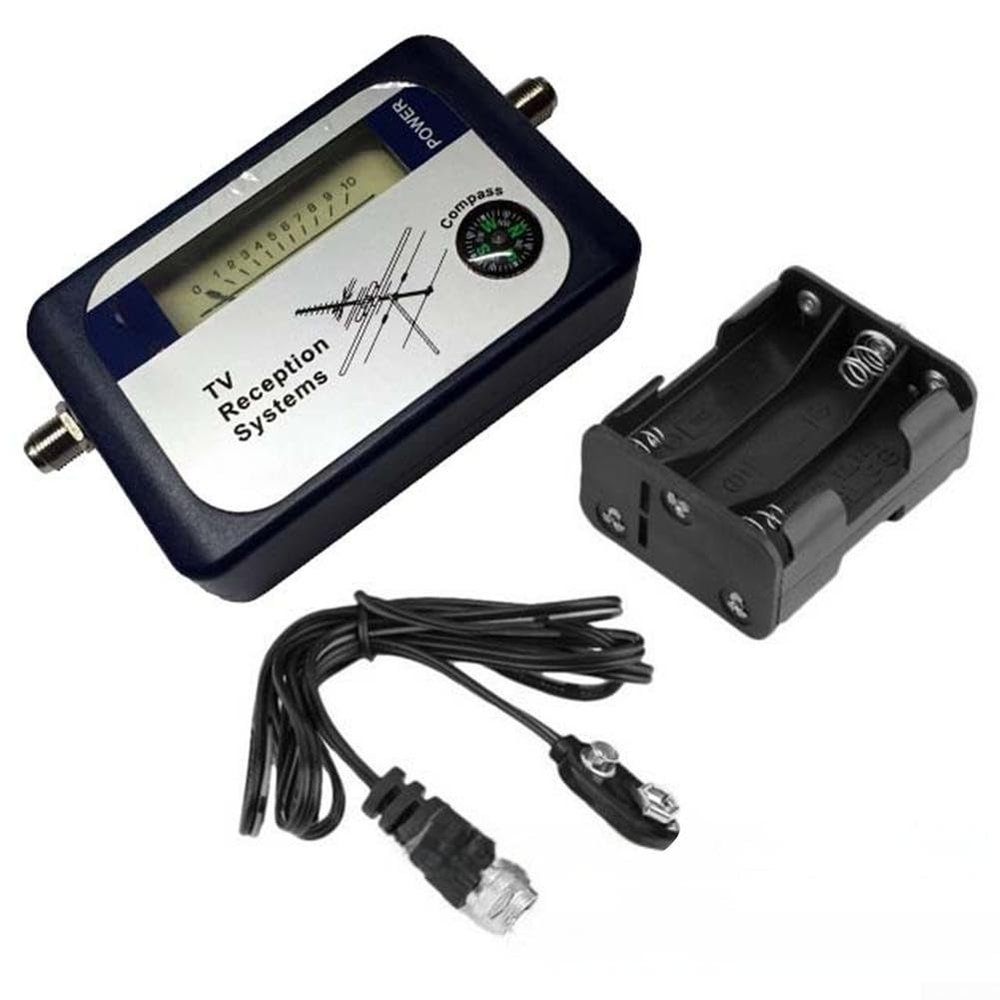

Package Contents:
1 * DVB-T Finder
1 * English User Manual
1 * Battery Holder
1 * Power Cord
