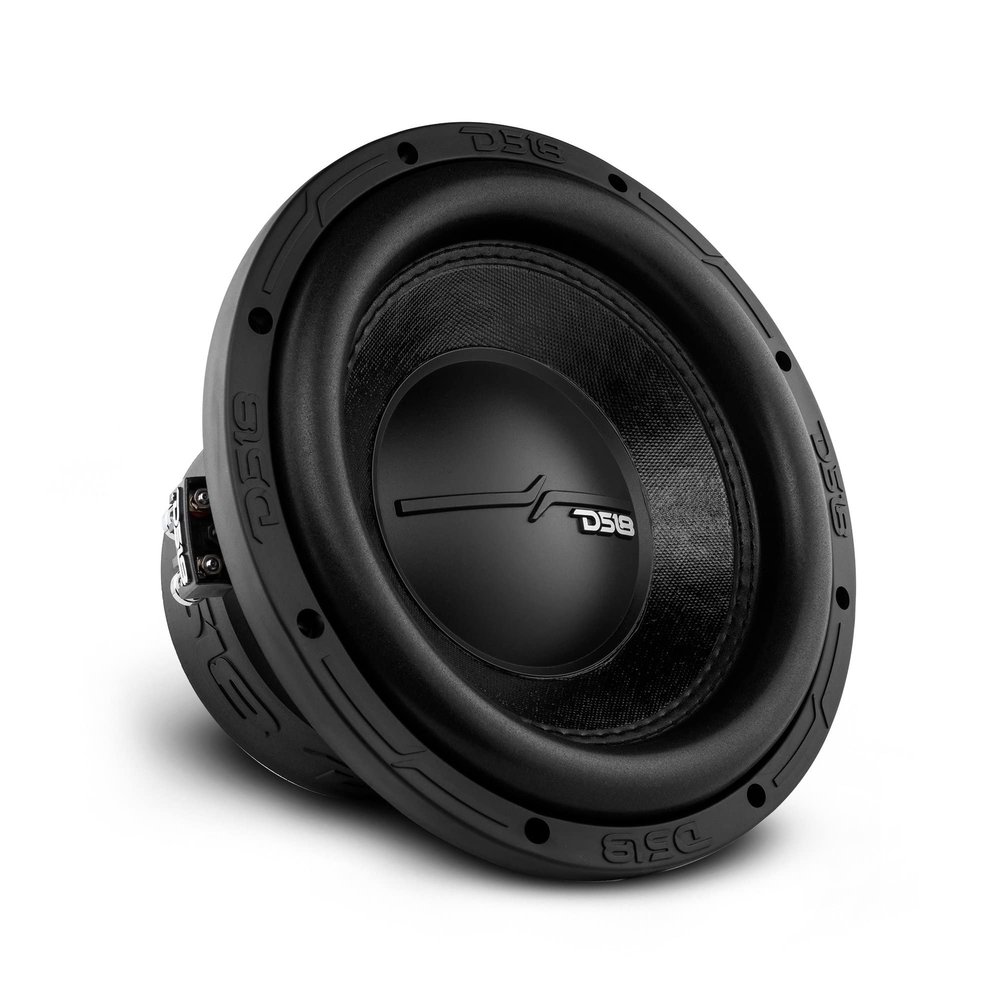

DS18 ZR10.4D 10" Car Subwoofer 1400 Watts Max Power 700 Watts RMS Dual Voice Coil 4-Ohm. Crip and Clear bass for Your Vehicle Sound System. Great Performance and High Durability

Description

• The ZR subline is an amazing entry level car subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle
• This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power
• Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power
• Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors
• Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile

SPECIFICATIONS

Nominal Diameter 10"
Nominal Impedance 4 + 4 Ohms
RMS Power Handling 700W
MAX Power Handling 1400W
Sensitivity (1w/1m) 81 dB
Frequency Response 27Hz - 200Hz
Recommended Lo Pass Crossover 100 Hz

MOTOR

Voice Coil Diameter 2.5" / 61.6mm
VC Former Material Aluminum
Winding Material Copper
Cone Material Non Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 100 oz
Displacement Volume 0.05 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume 8.18 L
Excursion (one way) 25mm
Free Air Resonance 37Hz
Mechanical Factor 4.86
Electrical Factor 0.93
Total Factor 0.78
Moving Mass 216.3g
Compliance 52.8 m/N
BL Factor 10.7
Voice Coil Inductance 823.5m mH
Cone Area 333.29 Cm2
DC Resistance 3.4 + 3.4 ohm
Efficiency Bandwidth Product 39.78

MEASUREMENTS

Overall Diameter 10.31 / 262mm
Overall Depth 6.92" / 176mm
Front Mount Baffle Cutout 9" / 229mm
Mounting Depth 6" / 152.3mm
Motor Diameter 6.1" / 155mm
