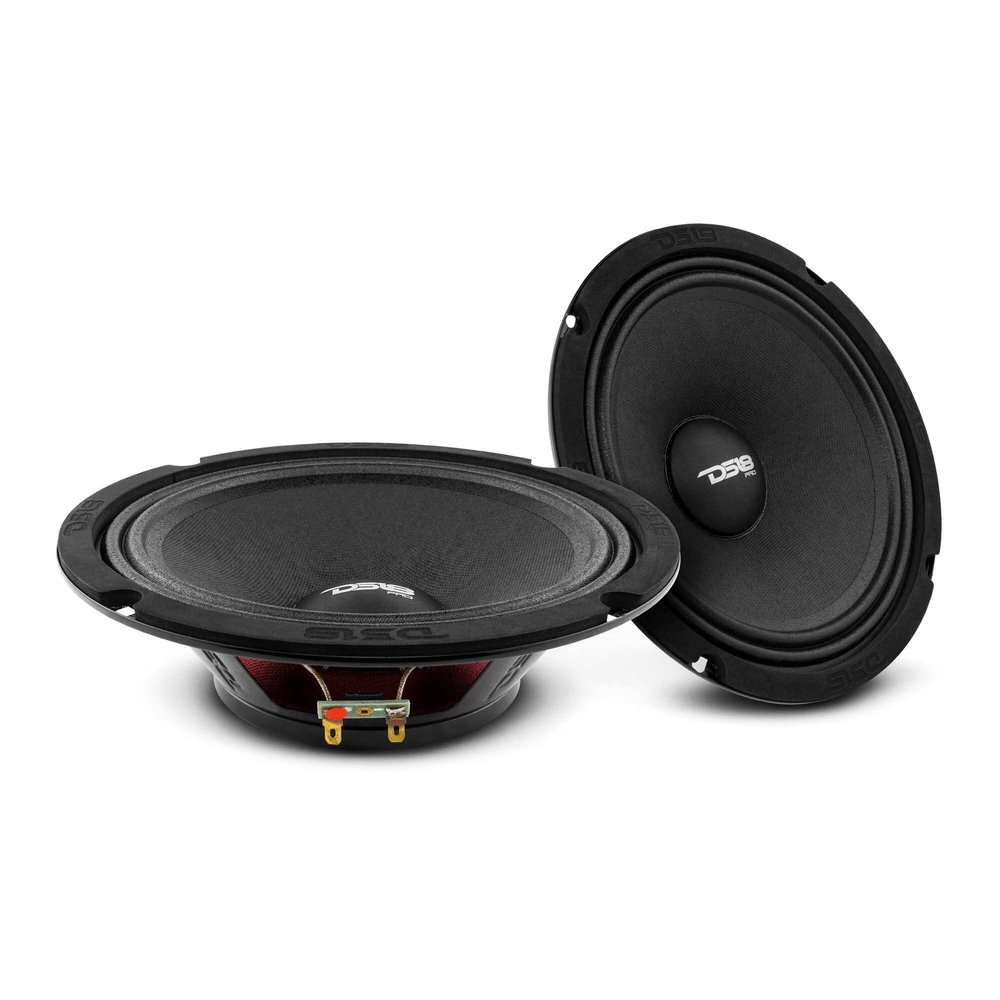

DS18 PRO-NS8.4 8 Inches Shallow Loudspeaker Car Audio - Midrange 400W Max 200W RMS 4 Ohms Slim Neodymium Magnet - The Most Elegant Neodymium Midrange Loudspeakers Available - 2 Speakers

Description

• SHALLOW SPEAKER - DS18's new Neodymium Shallow 8 Inch Loudspeakers were designed to give you maximum loudness and volume all while keeping a nice small framed package
• TOP QUALITY NEODYMIUM MAGNETS - Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. DS18 manufactures nothing but the best
• NEODYMIUM SPEAKER - A slim neodymium speaker is a type of speaker that uses a neodymium magnet for increased efficiency and is designed to have a slim profile for space-saving purposes
• HIGH EFFICIENCY - 4 ohm 2 inch voice coil mids that handle 200W RMS and 400W peak power for extreme loudness and frequency precision
• SHALLOW MOUNTING DEPTH - Only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume

PRO 8" Shallow Neodymium Mid-Range Loudspeaker 4-Ohm

DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers. This 8" inch neodymium 2" voice coil Mid-Range speaker takes 200w RMS and 400w peak power, so you know they will get loud easily. The 96DB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

Nominal Diameter 8"/208mm
Nominal Impedance 4 Ohms
RMS Power Handling 200W
MAX Power Handling 400W
Sensitivity (1w/1m) 96 dB
Frequency Response 97Hz - 12KHz
Recommended Hi Pass Crossover 160Hz
Single

MOTOR 2/50.8 mm
Voice Coil Diameter KSV
Voice Coil Former Material Copper
Winding Material Paper
Cone Material Paper
Dust Cap Material Cloth
Surround Materia Steel
Basket Material Glossy Red
Basket Color Neodymium
Magnet Material 3.32 Oz
Magnet Weight

THIELE & SMALL PARAMETERS
Equivalent Volume 193ft3 / 0.193ft3
Excursion (one way) 2 mm
Free Air Resonance 120Hz
Mechanical Factor 3.781
Electrical Factor 0.952
Total Factor 0.761
Mechanical Mass 13.242g
Mechanical Compliance 162m cm/N
Mechanical Mass w/o air/ 13.07g

MEASUREMENTS
Overall Diameter 8.2"
Overall Depth 2.67"
Front Mount Baffle Cutout 7.12"
Mounting Depth 2.48"
Motor Diameter 4.33"
