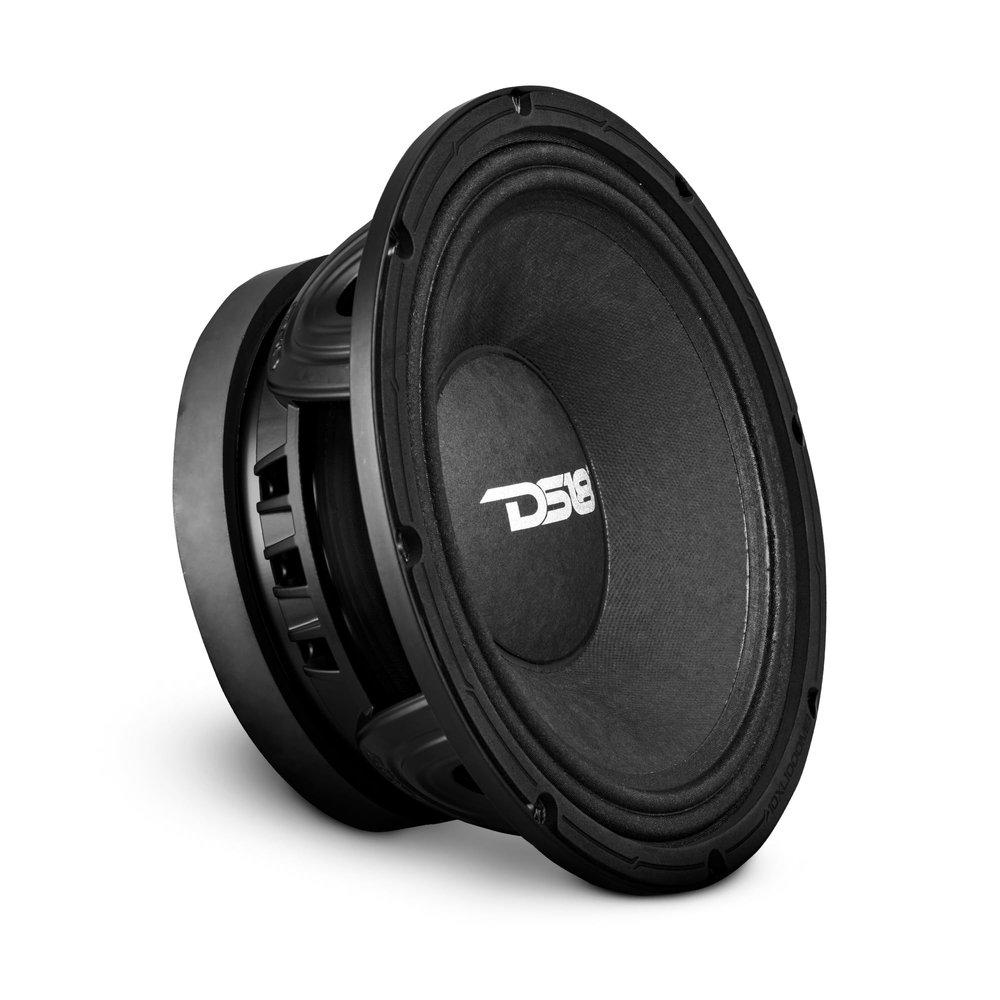

DS18 10XL1000MB PRO XL 10" Mid-Bass Loudspeaker 500 Watts RMS, 1000 Watts Max Power, 99.5dB, High-Performance Speaker, Premium Quality Audio Great for Pro Car Audio (8-Ohm)

Description

• Powerful Performance - With a robust RMS power handling of 500 Watts and a peak power of 1000 Watts, the PRO XL 10" Mid-Bass Loudspeaker delivers a punchy and clear sound that transforms your car audio experience to a whole new level
• Exceptional Clarity - Featuring a sensitivity of 99.5dB, this speaker ensures distortion-free music even at high volumes, allowing you to enjoy every detail of your favorite tracks with crystal-clear precision
• Durable Construction - Built to last, the speaker boasts a 3" voice coil optimized for thermal resistance and conductivity with Interleaved Sandwich Voice Coil (ISV) technology and demodulating rings, ensuring precise control and remarkable durability. Its aluminum basket and 80 Oz ferrite magnet provide structural integrity and longevity
• Easy Installation - Engineered with 8GA push terminals, installation is a breeze, offering secure connections, consistent performance, and a perfect fit into your vehicle, making upgrading your car audio system hassle-free
• Versatile Compatibility - With a nominal impedance of 4 ohms or 8 ohms, the PRO XL 10" Mid-Bass Loudspeaker is compatible with a variety of car audio systems, offering flexibility in setup options to suit your preferences and needs

SPECIFICATIONS

SKU 10XL1000MB
Nominal Diameter 10" / 254mm
Nominal Impedance 4 Ohm or 8 Ohm
RMS Power Handling 500 Watts
MAX Power Handling 1000 Watts
Sensitivity (1w/1m) 99.5dB
Frequency Response 75Hz-5KHz
Recommended HI Pass Crossover 100Hz
Sold in Pair or Single Single
Grill Included No

FEATURES

Interleaved Sandwich Voice coil (ISV) Yes
Demodulating Rings Yes
Improved Heat Dissipation No
Cone Shape Exponential
Speaker Terminals Push 8ga (4.7mm)

MOTOR

Voice Coil Diameter 3" / 76mm
Voice Coil Former Material Kapton
Winding Material CCAW (2 Layers IN/OUT)
Cone Material Paper
Dust Cap Material Paper
Surround Material Cloth
Spider Diameter 5.5" / 139.7mm
Leads Type Direct to Cone
Basket Material Aluminum
Basket Color/Finish Satin Black
Magnet Material Ferrite
Magnet Weight 80 Oz
Displacement Volume 0.4L / 0.0141ft3

THIELE & SMALL PARAMETERS

Voice Coil Inductance VAS 36.6L / 1.292ft3
Excursion (one way) XMAS 2mm
Free Air Resonance FS 68Hz
Mechanical Factor QMS 3.69
Electrical Factor QES 0.18
Total Factor QTS 0.172
Mechanical Mass MMS 29.64g
Mechanical Compliance CMS 0.21mm/N
BL Factor BL 14.2
Voice Coil Inductance LE 0.27mH
Cone Area SD 346.36cm2
DC Resistance RE 3.2 ohms
Mechanical Mass w/o air MMD 26g

MEASUREMENT

Overall Diameter 10.3" / 261.5mm
Overall Depth 4.73" / 120mm
Front Mount Baffle Cutout 9.2" / 233mm
Mounting Depth 4.29" / 109mm
Motor Diameter 7.48" / 190mm
