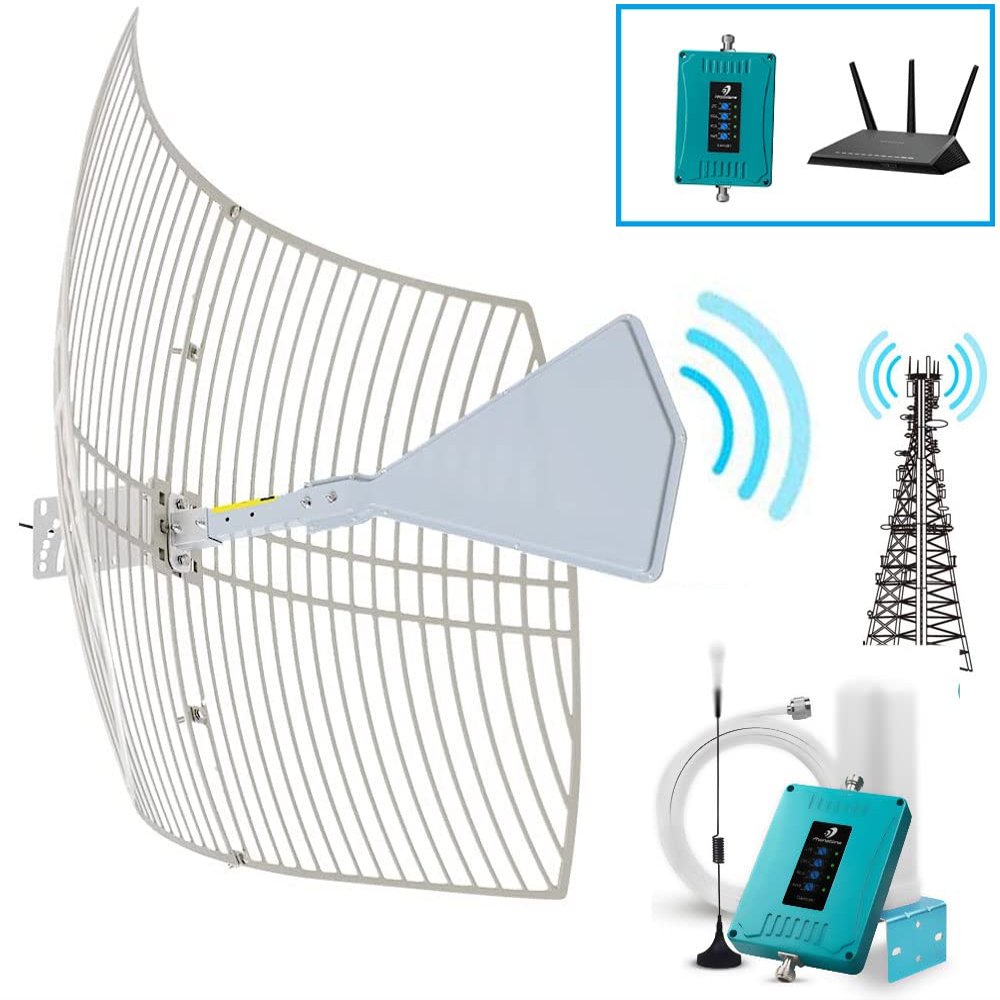

Directional Cell Phone Antenna-Parabolic Grid Antenna 4G WiFi 600-6500 MHz 26dBi Long Range 40km for Signal Boosters Modems

Description

• Who is it for :If your signal amplifier is still using Yagi antenna and flat panel antenna. So you're behind, so you need to replace them with this antenna.
• Who is it for: If you live in a very rural area with uneven or no signal, this broadband cellular antenna allows you to find signal towers up to 40km away.
• Who is it for: if you are the owner of signal amplifier and router, you need it.
• Full frequency band 600-6500mhz Compatibility: All cells in the 600-6500 MHz frequency band: 5G / 4G / LTE / 3G GSM / CDMA, etc.
• Directional Cell Phone Antenna-Parabolic Grid Antenna
• Outdoor Directional Cell Phone Antenna-Waterproof and rust proof .
• Package list: 1pcs feed horn antenna +2pcs grid +1 set bracket +1set screw.

Product Description
Cellular Antenna-Outdoor Parabolic Antenna Long Range-High Gain 26dbi 600-6500mhz LTE Wifi 4G 5G GSM-for Signal Booster-Works for All Carriers-Weatherproof
Improve your cellular and WiFi signals by up to +28dB, more than any other antenna
Works With Signal Boosters, Modems, Routers, and Hotspots
Electrical specififications
Frequency range (MHZ) :600 - 6500
Polarization :Vertical or Horizontal
Gain(dBi) : 26
Half-power beam width() :Low Band: 20 Horiz, 23 Vert
Half-power beam width() :Mid Band: 12 Horiz, 15 Vert
Half-power beam width() :High Band: 7 Horiz, 9 Vert
Front-to-back ratio(dB) :20 AVG
Impedance() :50
VSWR :1.6:1 / 1.4:1 avg
Maximum input power(W) :100
Lightning protection :DC Ground
Mechanical specififications
Connector :N-female
Reflector Dimensions (in / mm) :23.6x39 / 60x99cm
Antenna weight (lb / kg): 5.4 / 2.5
Packing weight (lb / kg) :14 / 3
Rated wind velocity (mph / kph) :150 / 240
Wind Load @ Rated Velo. (lb / kg) :150 / 68
Mounting mast diam. (in / mm) :1.5-2.0 / 40-50
Reflflector material :Die-cast Aluminum
Reflflector Finish: Electrostatic Powder Coat
Radome material :ASA Anti UV
Antenna Reflflector color :Beige-White
Water resistance :IPX Weather rated
Operating temperature( / F) :-40 to +60 / -40 to +140

Be Careful
Assembly tools: 10mm wrench, socket or nut driver, or set with adjustable wrench or pliers. Pole (not for sale). In addition, you need a wire to connect the antenna to your signal amplifier or router.
The use of antenna requires certain technical conditions and natural environmental conditions. This antenna has strong directivity and needs to aim at the direction of the signal tower accurately. The signal radiation angle of each position is different, so the direction of the antenna must be continuously adjusted to find the most appropriate angle.
