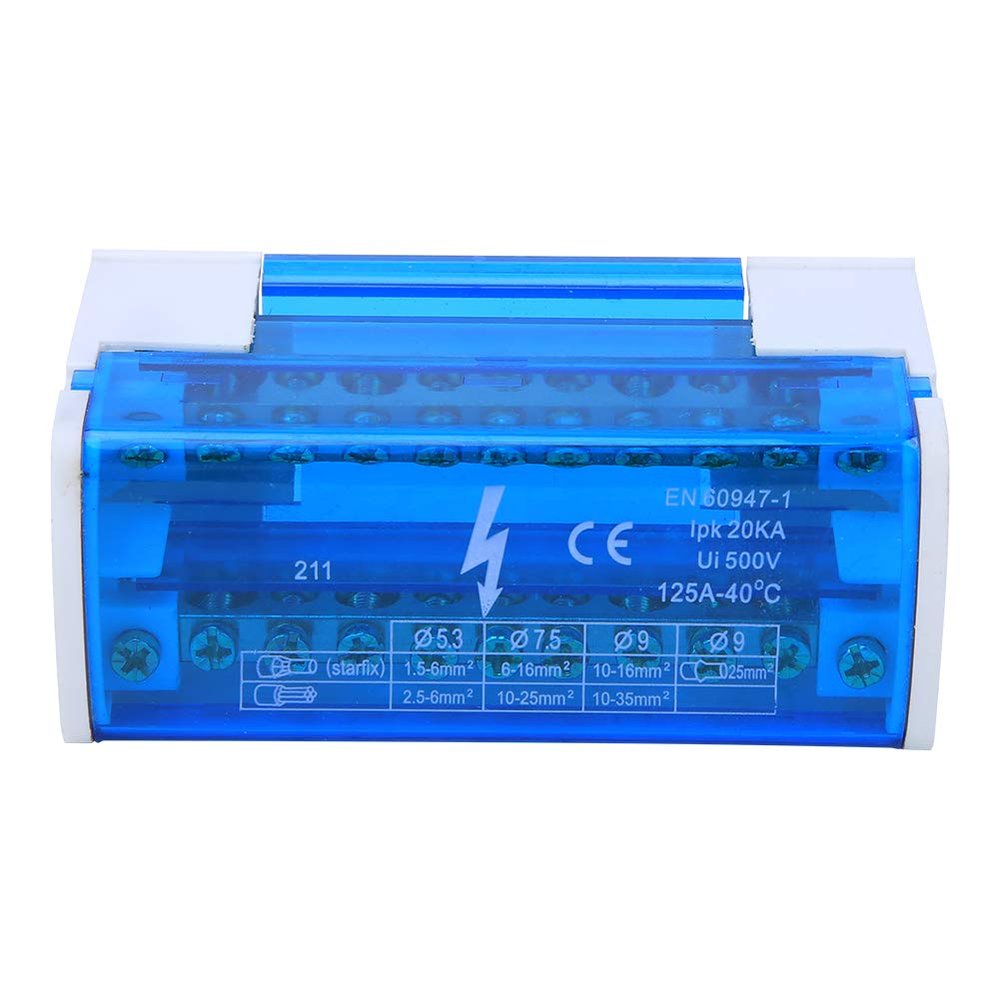

DIN Rail Terminal Block Power Distribution Box with Transparent Dust Cover 211

Description

• DIN RAIL INSTALLATION: Adopt Din Rail installation method, fast and convenient to install.
• FLAME RETARDANT HOUSING: The box adopt brass conductive and flame retardant housing, the maximum withstand current is 100A
• ISOLATION BARRIER: The isolation barrier between the terminal blocks can prevent touching and causing short circuit
• INSULATION: Din Rail Terminal Block has transparent dust cover design, insulation, you can know the internal wiring state without opening the cover
• SAVE Wiring Space: Small body with many splitting heads, which saves wiring space to extent

1. The box adopt brass conductive and flame retardant housing, the maximum withstand current is 100A
2. The isolation barrier between the terminal blocks can prevent touching and causing short circuit
3. Small body with many splitting heads, which saves wiring space to the greatest extent
4. Adopt Din Rail installation method, fast and convenient to install.
5. Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover

Specification:
Item Type: Terminal Distribution Box
Model: 2-level junction box 211
Rated Current: 125A
Rated Voltage: 500V
Type: Terminal block / Wiring block (strip)
Product Outlet: 2 input 20 output
Number of Holes: 2x11
Brass Rod: 6.5 12mm
Metal Material: Brass, primary color
Shell Material: High quality PA nylon material
Installation: Din Rail
Application: Cabinet
Application Area: Electrical engineering
Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance
Working Temperature: -30 ~ 110
Applicable Power Range: 250-450V
Size: Approx. 100 x 45 x 50mm / 3.9 x 1.8 x 2in

Package List:
1 x Terminal Distribution Box
