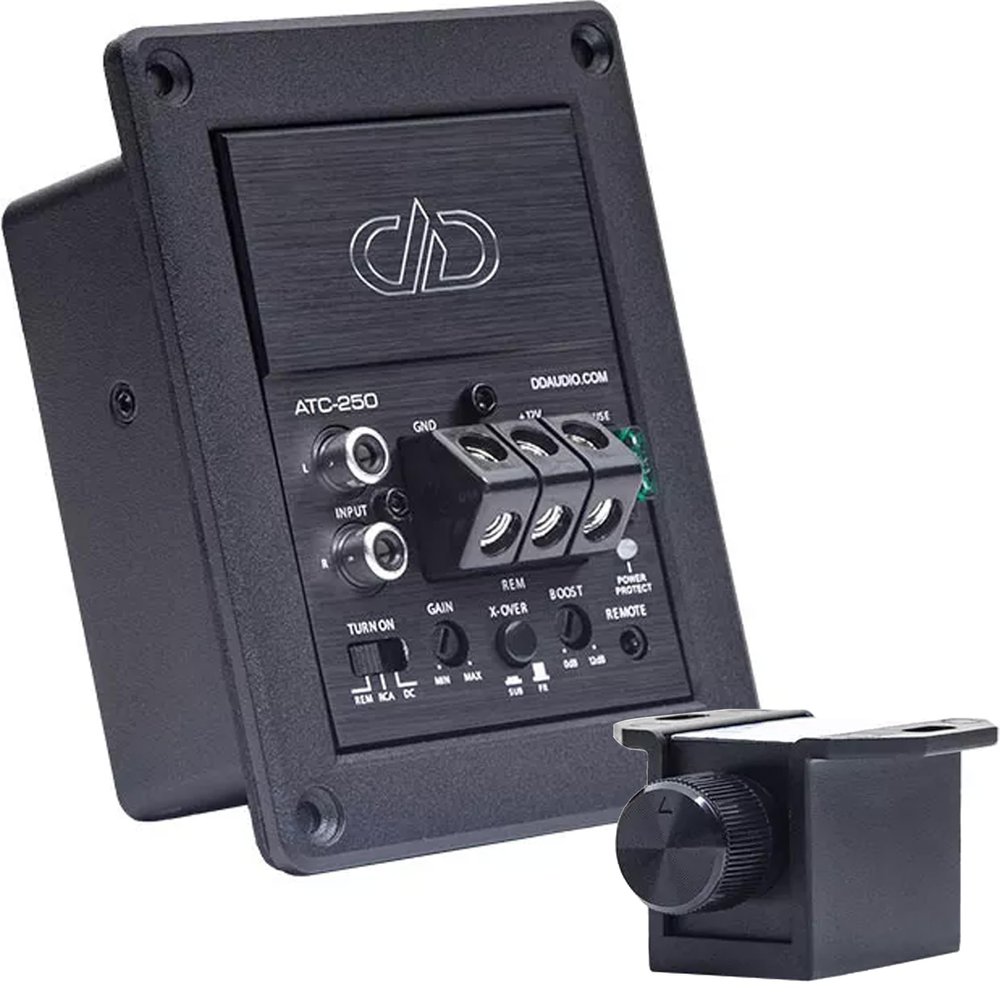

DD Audio ATC-250 Dynamic Power Subwoofer 500 Watts RMS Terminal Cup

Description

• The all new ATC-250, Amplified Terminal Cup, is a highly versatile half bridge, high speed, class D amplifier made to serve either low end bass or full range applications by transforming the terminal cup position of your enclosure from passive to powered with next generation technology to easily produce well over 250 Watts from a tiny unit while managing internal temperatures.
• The size and convenience make this an exceptional choice for pro audio builds inside the vehicle and out when paired with VO Series speakers. The smooth mids and highs in a party box running on full range mode combined with the rich bass of larger woofers in an enclosure on sub mode are the makings for a full-on, portable DJ system made to get loud and sound good.

Features All Aluminum Chassis / Integrated Heat Sink Compact High Tech Design with DD Engraved Logo Delivers Power Into 2 Ohm and 1 Ohm Loads 500 Watts Dynamic Power Both Subwoofer and Full Range Modes RCA Inputs High Level Inputs Operating Voltage: 8 - 16 Test Voltage: 14.4 Output Channel(s): 1 Continuous Wattage @4ohm: 100 Continuous Wattage @2ohm: 225 Continuous Wattage @1ohm: 325 Dynamic Wattage: 500 Max Current Draw (Amps): 40 RCA Input Voltage Sensitivity: 8 - 0.2 RCA Input S/N: > 100 Damping Factor: <150 THD: 1% Frequency Response (Hz): SUB: 30 - 80 / FR: 80 - 20k High Pass Filter: 80 Sub-Sonic Filter: 30 Low-Pass Filter: 80 Remote Control: Remote Included in Box Power Wire Gauge: 4 Speaker Wire Gauge: 12 Dimensions (Inches): 2.93 x 3.75 x 2 Dimensions (MM): 74.5 x 95.5 x 52.2
