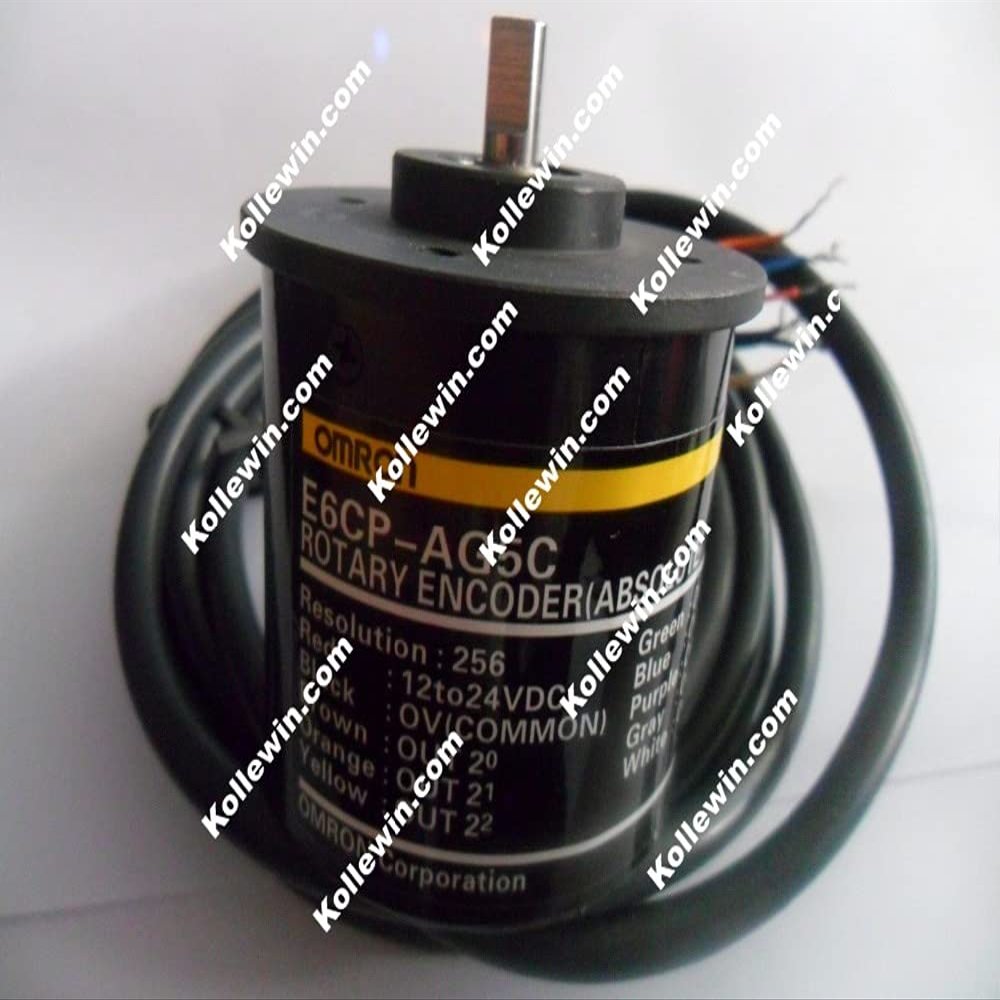

Davitu DC Motor - E6C3-AG5C 256 P/R 2m Rugged absolute rotary encoder 100%

Description

• Absolute model.
• External diameter of 50 mm.
• Resolution of up to 1,024 (10-bit).
• IP65 (improved oil-proof protection with sealed bearings)
• Optimum angle control possible in combination with PLC or Cam Positioner.

Features:
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings)
Optimum angle control possible in combination with PLC or Cam Positioner.
Model
E6C3-
AG5C-C
E6C3-
AG5C
E6C3-
AN5C
E6C3-
AB5C
E6C3-
AG5B
E6C3-
AN5B
E6C3-
AB5B
E6C3-
AN1E
E6C3-
AN2E
Power supply
voltage
12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
5 VDC 5%
12 VDC 10%
Current
consumption *1
70 mA max.
Resolution *2
(pulses/rotation)
256 , 360,
720
256, 360,
720, 1,024
32, 40
6, 8, 12
256, 360,
720, 1,024
32, 40
6, 8, 12
256
Output code
Gray code
Binary
BCD
Gray code
Binary
BCD
Binary
Output
configuration
NPN open-collector output
PNP open-collector output
Voltage output
Output capacity
Applied voltage: 30 VDC max.
Sink current: 35 mA max.
Residual voltage: 0.4 V max. (at sink current of
35 mA)
Source current: 35 mA max.
Residual voltage: 0.4 V max.
(at source current of 35 mA)
Output
resistance:
2.4 k
Output
resistance:
8.2 k
Sink current: 35 mA max.
Residual voltage: 0.4 V max.
(at sink current of 35 mA)
Rise and fall
times of output
1 s max. (Cable length: 2 m, Sink current: 35 mA)
Rise: 3 s
max.,
Fall: 1 s max.
Rise: 10 s
max.,
Fall: 1 s max.
Maximum
response
frequency *3
20 kHz
10 kHz
Logic
Negative logic (high = 0, low = 1)
Positive logic (high = 1, low = 0)
Direction of
rotation *4
Output code increases for CW (as viewed from
