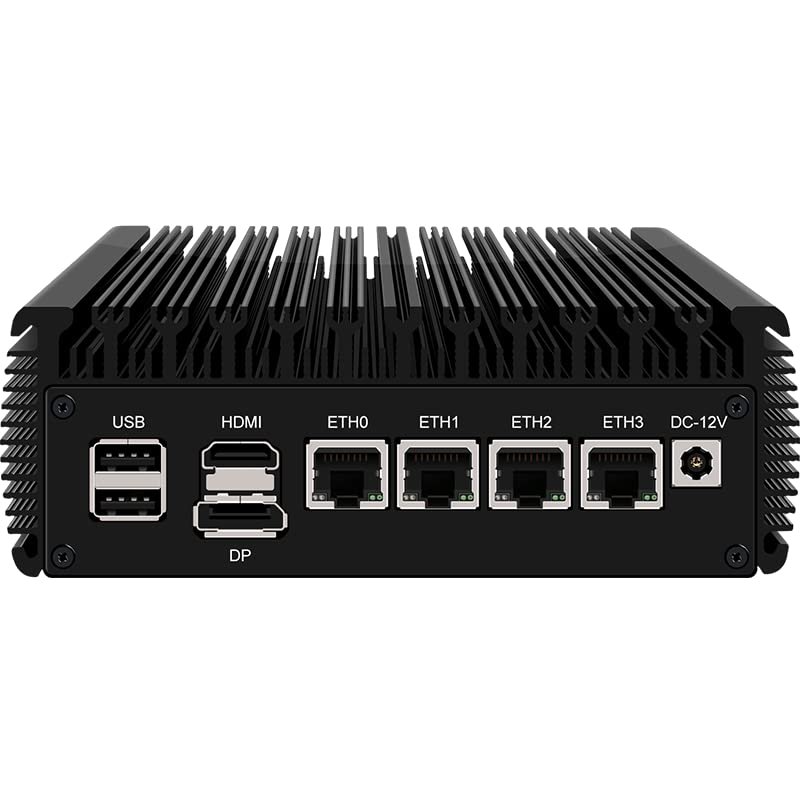

CWWK Newly Upgrade V5 Version N5105 i226-V Softroute Mini-Host/PVE/ESXI Fansless Energy Saving PC (V5-N5105-32G-512G)

Description

• 5th Edition N5105Mini PC is equipped with the new Intel 11th generation JasperLake quad-coreprocessor, the original i225-V B3 is upgraded to Intel-i226-V, with lower power consumption and more stable performance.
• New upgradeThe original Intel i225-V B3 network card has been upgraded to an Intel i226-V2.5G network card, AU5426 clock driver is added, so the dual M 2. The main controller is no longer selected. At the same time, a new GL823K chip is added to enable the TF card to support system boot. The bottom cover is fully upgraded to porous cooling, and supports the 8010 temperature controlled fan.
• BIOSBIOS also ushered in a major update The factory lock free BIOS gives full play to the performance The new version of BIOS is compatible and re-optimized for memory, and supports a single DDR4 3200MHz 32GB memory at a maximum, and a maximum support of 64G. Optimize the boot speed. Add Wake on LAN option, location Chipset->PCH-IO configuration->Wake on LAN.
• Customization supportedIf you need to customize the LOGO on the panel, please contact customer service and provide free laser laser engraving (PS: laser-engraved machines do not support returns)
• If you have any questions on CWWK Firewall mini pc, feel free to contact us . We offered 12 Months warranty for it and WE'LL REPLY YOUR Quesstions within 24 hours(during Working Days).

CPUIntel Celeron Jasper Lake N5105
Memory: 2 X SO-DIMM DDR4 2933MHz compatible 2400/2666/3200MHz maximum 32G
Storage: 1 X M.2 NVME (PCIE3.0 1x) 1 X SATA3.0
Graphics card: Intel UHD Graphics (4 times higher than J4125 integrated graphics card)
Display: 1 X HDMI2.0 DP Type-C (support 4K resolution 4096 2160@60Hz
Network card: 4 X Intel i226-V (new 2.5G network card)
USB2 *USB3.0 / 2*USB2.0
Heat dissipation: no fan, pure copper block allothermic aluminum shell passive heat dissipation
BIOS: AMI uEFI BIOS call auto start, GPIO, watchdog, PXE network wake-up
Power consumption: 10W
Power supply: DC 12V 100-240V 50/60Hz (5.5 * 2.5 connector)
Chassis: aluminum alloy plate
Extended pin: 2XFAN Fengyuan Yizi 1X non pin 1X USB pin
Scalable: M 2. A. E key supports WiFi and Bluetooth (to be customized)
Dimension: 115mm (W) X 135.6mm (D) X 52.5mm (H)
Color: iron grey/black
Working environment: 0C~170 C Relative humidity 5% - 85%

PS: This product can be pre installed with a black/gray chassis. If necessary, please contact our customer service. If there is no note, we will send it randomly Installation mode: desktop type, wall mounted type (contact customer service to purchase additional wall mounted parts)
