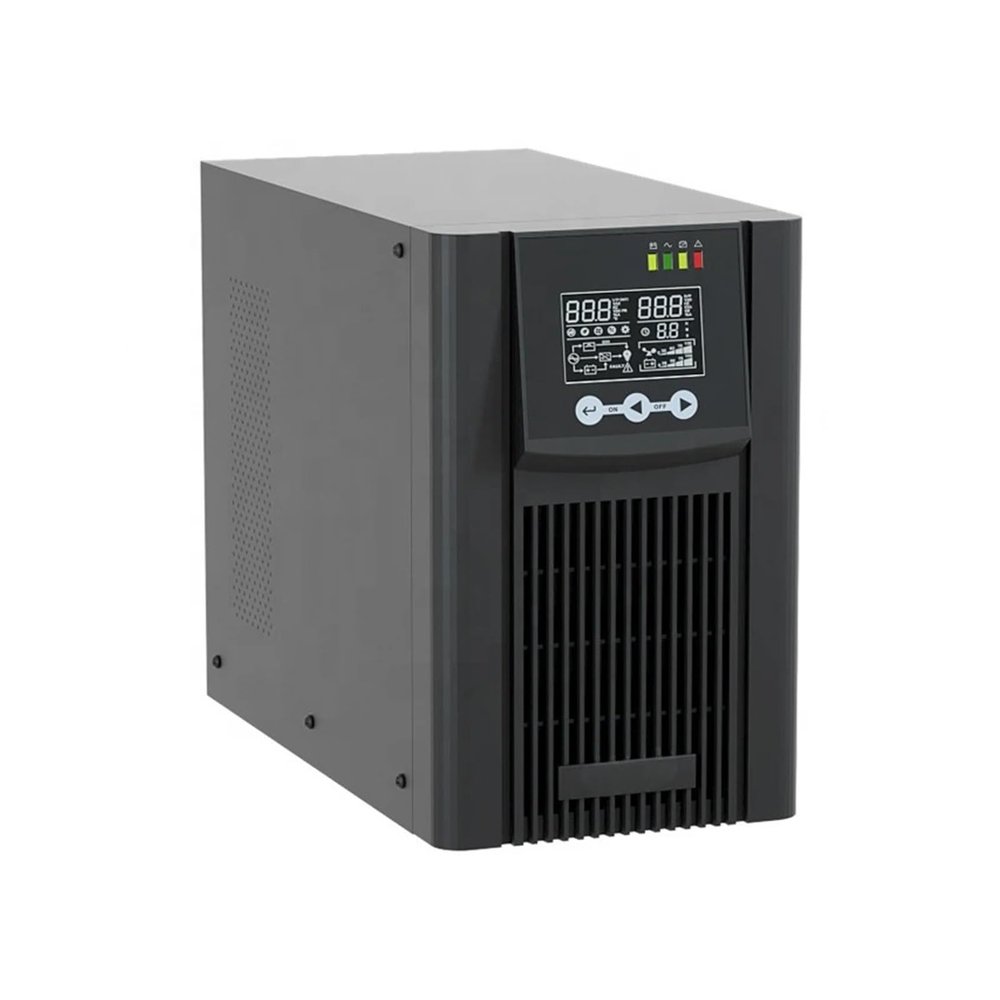

CHUNYE UPS 1KVA 36V DC High Frequency Online UPS for Equipment and TV

Description

• Continuous Power Supply: UPS can provide continuous and stable power supply when there is a power outage or voltage fluctuations.
• Overload Protection: UPS is usually designed with overload protection function.
• Battery Backup: UPS is equipped with built-in batteries.
• Voltage Stabilization Function: UPS typically has voltage stabilization function.
• Equipment Protection: UPS can also provide protection for connected equipment, including overvoltage protection, voltage surge protection, etc.

SpecificationPRODUCT NAME1KVA High Frequency Online UPSModelPET1101Power Capacity1KVA/1KWBattery Voltage36VDCPower Factor1.0Dimension(DxWxH mm)385x143x222Weight(Kgs)4 INPUTInput FormatL+N+PERated Voltage208VAC/220VAC/230VAC/240VACVoltage Range110V-300VACFrequency Range50/606Hz(Default), 10Hz(Settable)Power Factor0.99Harmonic Distortion (THDi)3% THD(LinearLoad); 5%THD(Non-linearLoad)OUTPUTOutput FormatL+N+PERated Voltage208VAC/220VAC/230VAC/240VACAC Voltage Regulation 1%Frequency RangeAC Mode:same as AC, Battery Mode:50/60Hz1%Harmonic Distortion (THDi)1% THD(LinearLoad); 3%THD(Non-linearLoad)Power Factor1.0Overload CapacityAC Mode: 30min@102%110%load, 10min@110%130% load, 30s@130%150%load, 200ms@>150% loadBattery Mode: 1min@102%110%load, 10s@110%130%load, 3s@130%150%load, 200ms@>150% loadWaveFormPure Sine WaveTRANSFER TIMEAC Mode to Battery Mode0msInverter to Bypass4msEFFICIENCYAC Mode94.5%@220VACBattery Mode88.5%BATTERYBattery TypeDepending on applicationsBattery Numbers3 Charging Current5A(Default), 1-12A(Adjustable)Charging ModeTwo-stage/Three-stage chargingDISPLAYLCD DisplayWorking mode/load/input/outputENVIRONMENTOperation Temperature040Storage Temperature-1560 ( Battery: 040 )Relative Humidity20%95% (No condensation)Altitude1000mNoise <; 45dB@1 MeterMANAGEMENTRS232/USBWindwos2000/2003/XP/Vista/2008/7/8/10,Linux and MACOptional SNMPPower management from SNMP manager and web browser
