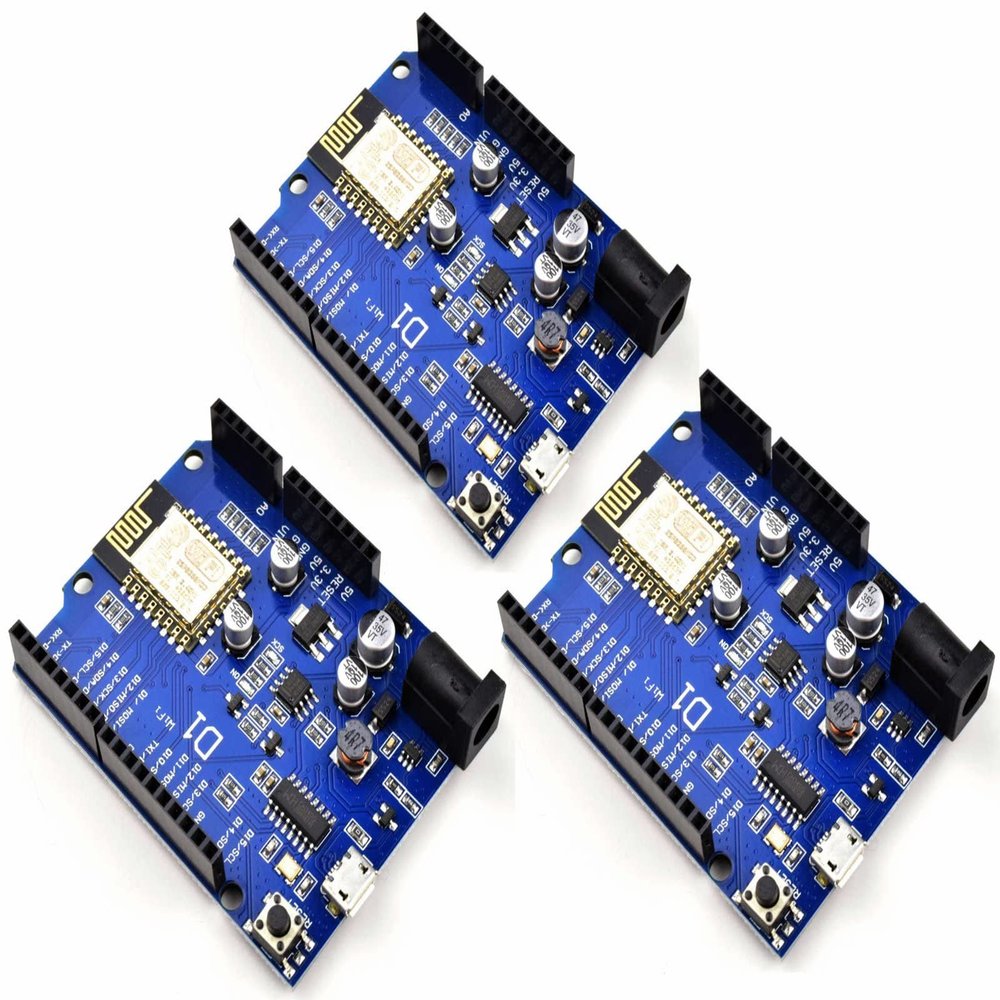

CANADUINO 3 x WeMos D1 ESP8266 Wi-Fi Board 80-160MHz - IoT - Compatible with Arduino and NodeMCU

Description

• WEMOS D1 compatible ESP8266 WiFi Development Board with Arduino UNO form factor and compatible with Arduino IDE and NodeMCU comes with 11 GPIO Ports supporting digital input and output PWM and IC
• ESP8266 WiFi Development Module; Logic Level 3.3V; Power Supply 5-24V; 11 GPIO Ports; 1 ADC; Arduino Shield Form Factor; Compatible with Arduino IDE and NodeMCU; CH340 USB-UART for Programming and Monitoring (Driver Download from UNIVERSAL-SOLDER Website)
• Size 69 x 54 mm; Weight 18 g
• 3 x D1 ESP8266 Module assembled
• Visit our Amazon Store for more exciting Electronics. For Downloads, Documentation and Product Support please visit UNIVERSAL-SOLDER Website.

The D1 is a WiFi capable ESP8266 based development board in the form of the Arduino UNO board format. This board is compatible with the Arduino IDE and with NodeMCU. The D1 also features an on-board switching power supply which allows you to power the board from a power supply up to 24V, 11 GPIO pins (can be used as input/output/PWM/I2C, except D0), and 1 analog input. The PWM resolution is 10bit (1MHz frequency). The integrated 5V switching power supply (1A) is followed by an 3.3V LDO to supply power for the Wifi module and the 3.3V output (power supply for sensors and shields). Please pay attention when you connect other active periphery to the I/O pins, because this is a 3.3V logic level device and higher levels on any pin will destroy it. The max. input voltage for the analog pin is 3.2V
