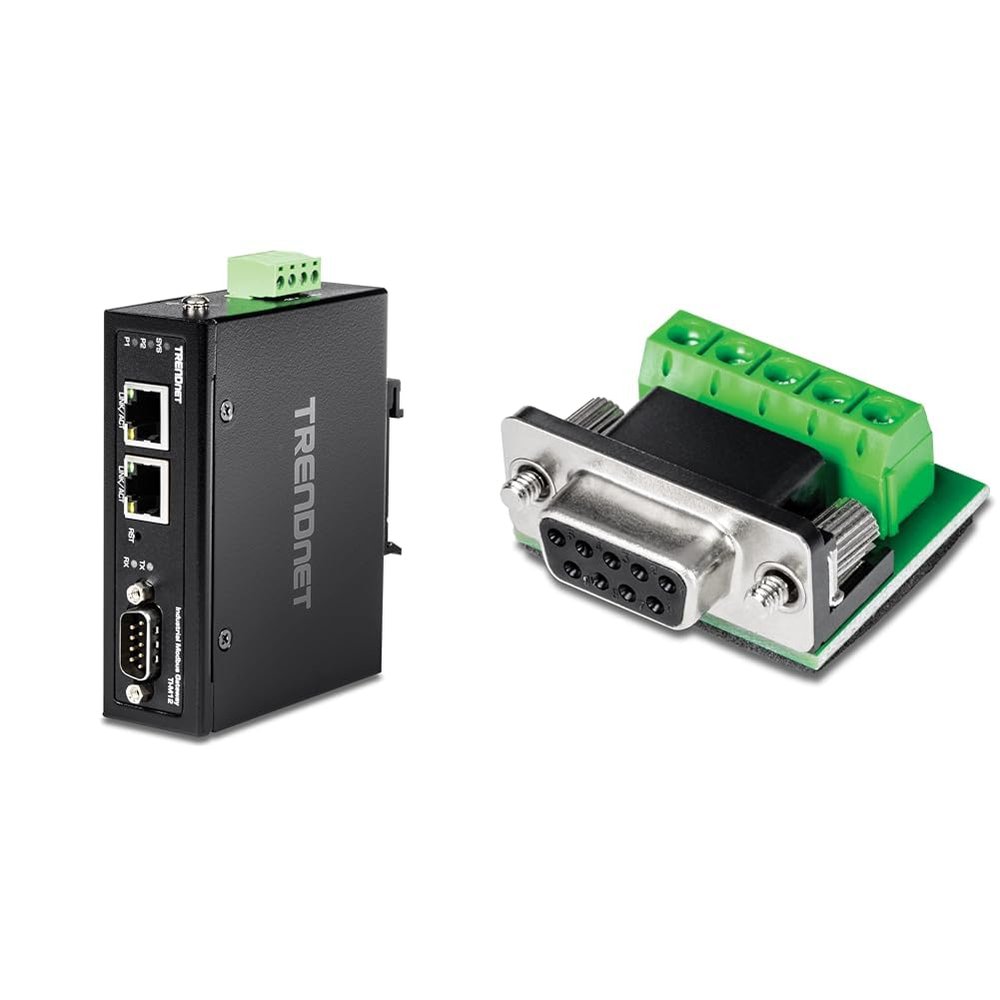

Bundle: TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, TI-M12 + TRENDnet RS232 to RS422 RS485 Converter Adapter, Serial Port Data Converter, TI-S100

Description

• DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point
• INCLUDES: One TI-S400 RS232 to RS422/RS485 Converter Adapter
• CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network.
• DEVICE INTERFACE: 1 x DB9 Female RS-232 to RS-422/RS485; 1 x Terminal block
• MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
• TERMINAL BLOCK: Redundant power inputs, 5-pin; Wire range: 26-14AWG; Solid wire (AWG): 26-14AWG; Stranded wire (AWG): 26-14AWG; Torque: 0.4Nm (3.6 Lb.-In); Wire strip length: 6-7mm
• IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40 75 C (-40 167 F)
• Convert a RS232 port to a RS422/RS485 terminal block
• DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
• Designed for use with the TI-M12 and TI-M42 industrial modbus gateways

TRENDnets Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network. TRENDnets RS232 to RS422/RS485 Converter Adapter, model TI-S100, is a DB9 terminal block adapter designed for use with our TI-M12 and TI-M42 industrial modbus gateways. The TI-S100 RS232 terminal block adapter conveniently converts an RS232 port to an RS422 or RS485 terminal block.
