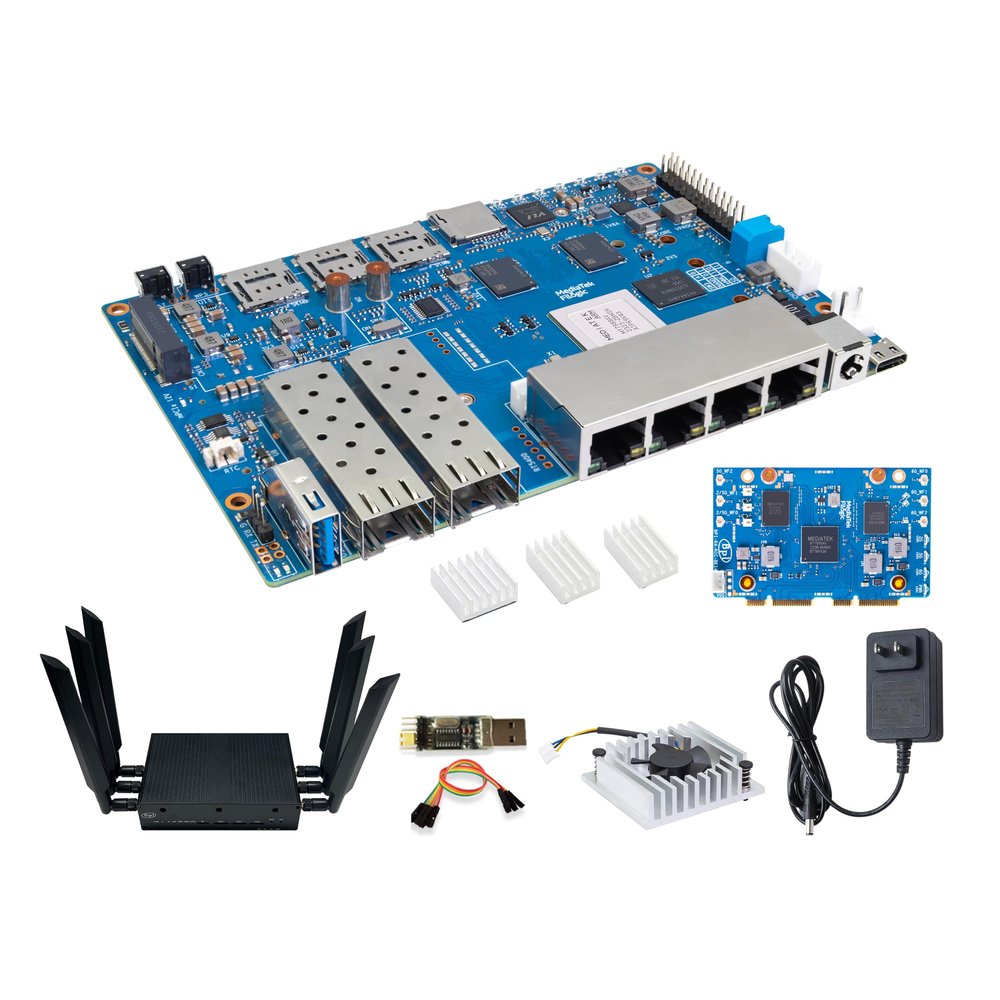

Banana Pi BPI-R4 WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, with MediaTek MT7988A (Filogic 880) SoC, Support 2X 10GbE SFP and 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (Bundle3)
6 392,02 kr.
10 653,37 kr.
-
Order within 10 hours and 11 minutes to get between June 11 - June 17 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- [MediaTek MT7988A CPU] Banana Pi BPI-R4 Router Board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 CPU design, 4GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
- [High Performance Chips] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols.
- [Support 2x 10Gbe SFP/4x Gbe] Banana Pi BPI-R4 wireless dual-band wifi router board support 2x 10Gbe SFP and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also with USB3.2 port and M.2 interface, support 4G/5G signal reception and NVME SSD.Providing the fastest and most reliable network connection.
- [Support WiFi7 iPA NIC Module] Banana Pi BPI-R4 wireless three-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
- [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 2x 10Gbe SFP Optical ports, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 5G, 1x M.2 KEY-M connector for 2280 NVME SSD, mPCle Slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S.
- [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Gaming Wifi Routers, Network and Communication Applications. It can be used as 36Gbps Wi-Fi 7 Access Point Router Gateway.
- [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4"; FAQ: "docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4_FAQ". All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
