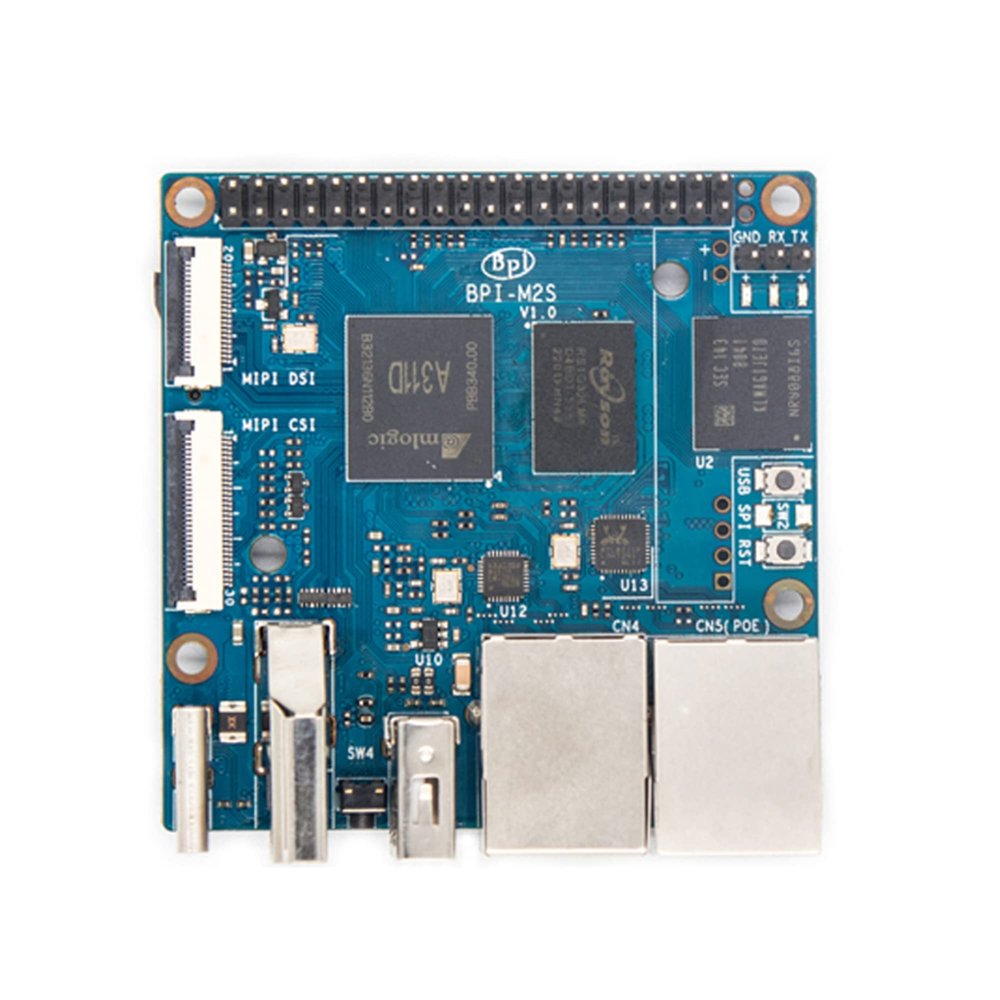

Banana Pi BPI-M2S SoC Amlogic A311D and S922X Hexa-core 4GB LPDDR4 RAM 16GB eMMC Video HDMI 2.1 4Kp60 OS Ubuntu Debian Android (Amlogic S922X, No Mental Case)

Description

• Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
• NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
• 4GB LPDDR4 RAM / 16GB eMMC flash (Max 128G)
• Support MIPI DSI Camera interface
• Support MIPI CSI Screen interface
• Support Android and Linux system.

Product introduction

BananaPi BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.Amlogic S922X variant M2S board is not support npu, mipi panel and mipi camera.BPI-M2S same size as Banana Pi BPI-M2+ and Banana Pi BPI-M2 Pro.

Specifications

-SoC Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
-System Memory 4GB LPDDR4
-Storage 16GB eMMC flash (option up to 128GB), MicroSD card slot
-Video interfaces: HDMI 2.1 output up to 4Kp60MIPI DSI connector for displayMIPI CSI connector for camera
-Networking 2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver
-USB 1x USB 2.0 Type-A port, 1x USB Type-C port
-Expansion 40-pin GPIO header
-Debugging 3-pin header for serial console
-Misc 3x buttons
-Power Supply Via USB-C port or pin header
-Dimensions 65 x 65mm
