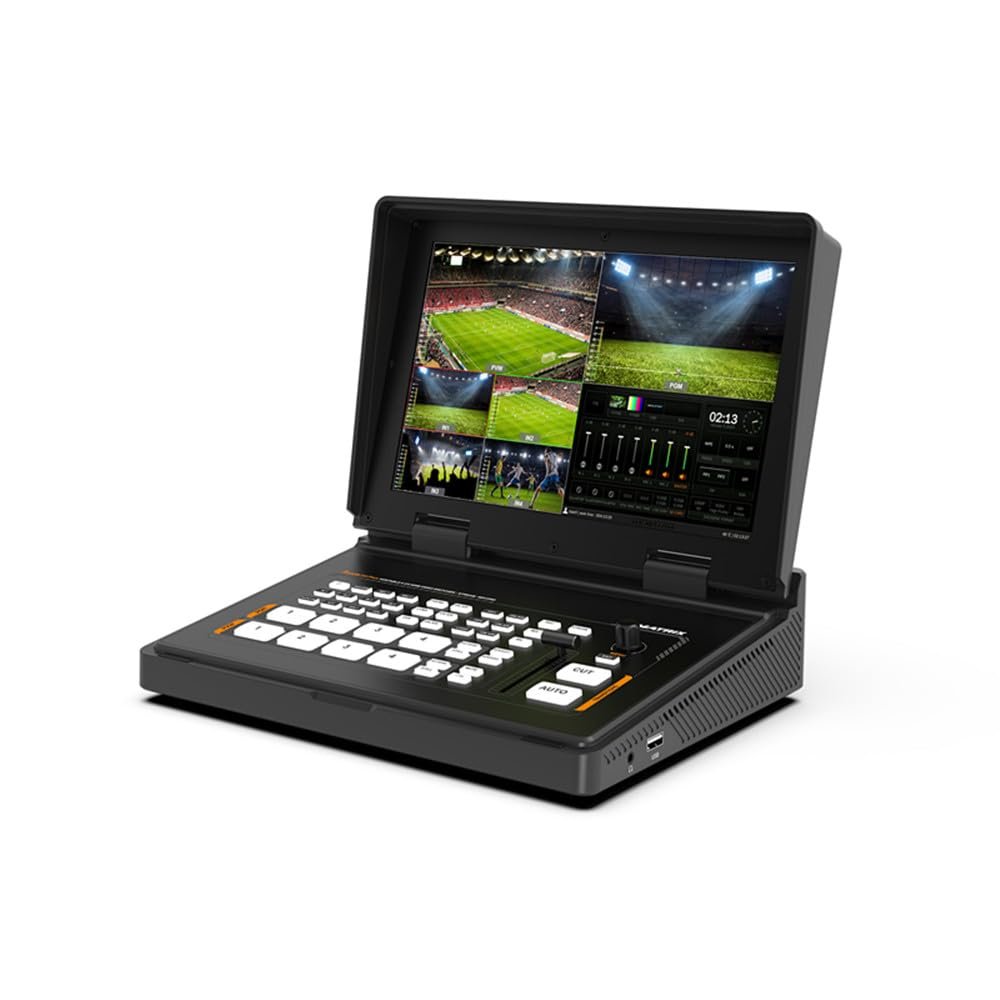

AVMATRIX Shark H4 Plus 4-Channel HDMI Video Switcher with 10.1" FHD IPS LCD Display, RTMP/SRT Stream & USB Disk/SD Card Record, AUX Output Configurable and Assignable, Downstream Key

Description

• 2HDMI PGM output, 1HDMI Multiview out, 1USB type-C output
• RTMP/SRT stream & USB disk/SD card record
• AUX output configurable and assignable
• USB for capturing and streaming on PC
• Customer configuration import and export

Specification: Display: 10.1 inch IPS FHD Connection Video input: HDMI x 2, SDI x 2 Video output: HDMI PGM x 2, HDMI Multiview x 1, LAN x 1 (RJ45 Stream), USB type-C x 1 (Capture) Other interface: USB-A x 1 & SD Card (Record) x 1 (Card not included), USB-A x 1 (Image import and upgrade), Tally x 1 db-15 GPIO Audio: input: MIC/Line x 2 (3.5 mm stereo audio), outputs: Earphone slot x 1 (3.5 mm stereo audio) Encoding bitrate: 2/4/8/12/16/24/32 Mbps, support CBR/VBR Stream protocols: HTTP, RTSP,RTMP,RTP,UDP(Multicast, Unicast), SRT Storage format: USB/SD card, support FAT32/exFAT/NTFS Record file format: MP4, TS Record file segment: 1/5/10/20/30/60/90/120 mins Transitions: T-Bar/AUTO/CUT Effects: WIPE(11x3 patterns)/MIX/DIP/STILL(freeze)/PATTERN/MUTE/FTB Layouts: 2 styles of multiview layout( landscape and portrait) Keys: upstream key: Luma key x1/Chroma key x 1/ IPI x 2/POP, Downstream key: DSK x 1/ Logo x 1 Media format: Default image: 39 preset patterns, local image: up to 16 imported images, capture image: up to 16 captures images Generators: pattern generator x 1, color generators x 2 Audio mixer: video input x 4 and MIC/Line x 2 Audio delay: 0-500 ms Input format support: multi-format auto singaal detection, up to 1080p 60 Color space: HDMI: RGB/YUV, SDI: YUV HDMI PGM/MV out: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 USB Capture out: up to 1080p 60 DC power in: Wide voltage: 7-24V Consumption: 20.4 W(12V 1.7A) Dimension(LWD): 261.4x193.9x58mm Weight: Net: 1734.5g, Gross: 2240g Working temp: -20-50 Packing list: Switcher x 1 12 V 2A power adapter x 1 USB A-C cable x 1 Tally connector x 1
