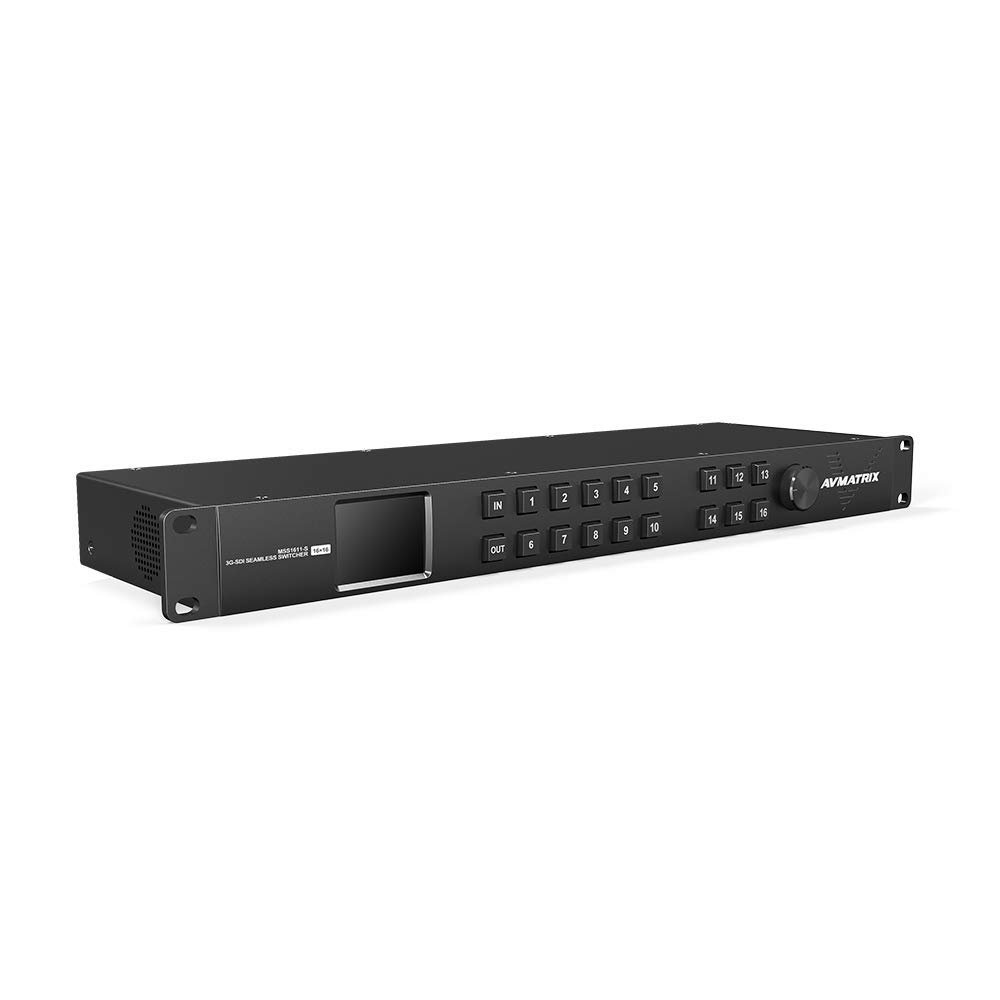

Avmatrix MSS1611-S 1RU 1616 Seamless SDI Input and Output Matrix Switcher for Large Broadcast Projects

Description

• MSS1611-S 1616 Seamless SDI Matrix Switcher
• - 1RU rackmount frame - 16 SDI inputs and SDI outputs
• - Seamless switching without black between two signals
• - Front button panel and PC software easy to control
• - Dual power connectors for redundancy

Model: MSS1611-S
16X16 3G-SDI seamless matrix switcher
- 1RU rackmount frame
- 16 SDI inputs and SDI outputs
- Seamless switching without black between two signals
- Front button panel and PC software easy to control
- Dual power connectors for redundancy
MSS1611-S is the perfect solution for a large broadcast project.
The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2 inch LCD for routing label display.
Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless matrix switcher supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s.
Built-in frame synchronizer supports simultaneous input of signal of different resolution frame rates, which can realize seamless switching without a black screen.
It can conveniently be controlled by a front button, PC software via LAN/RS-422.
