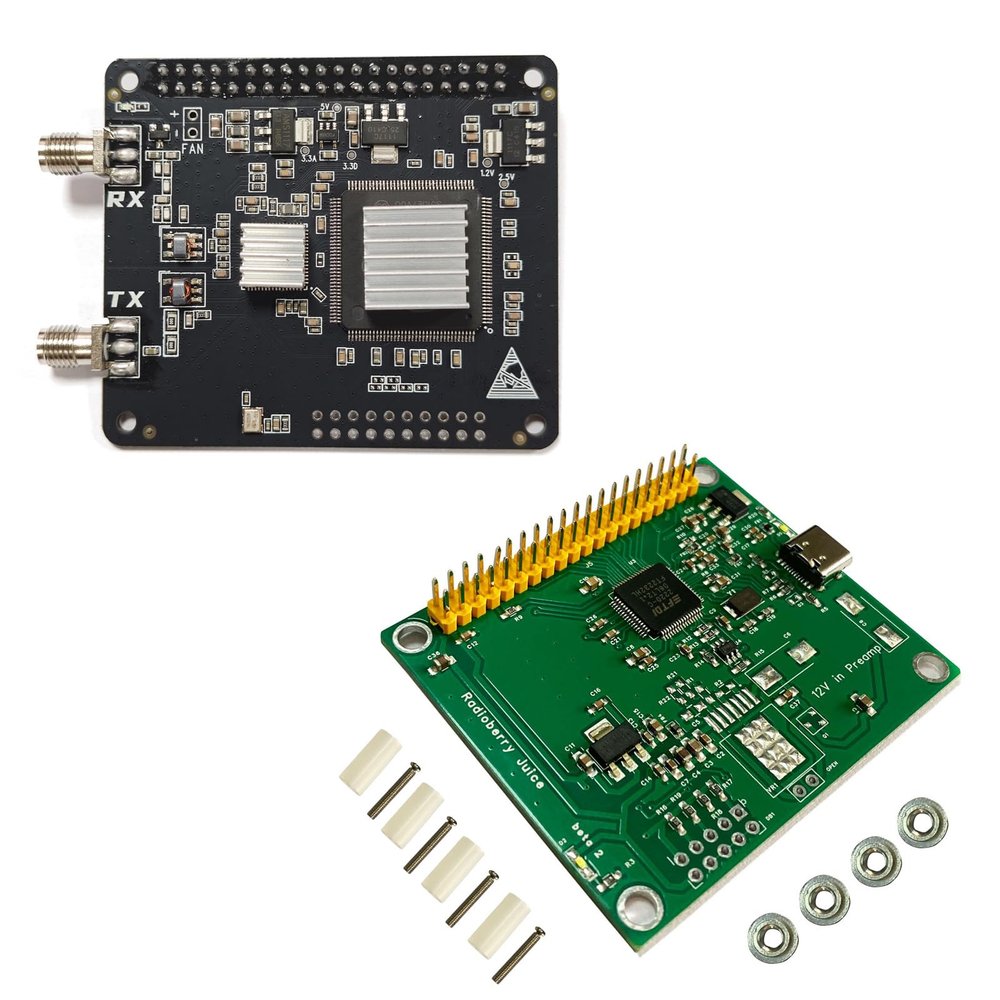

AURSINC SDR Radioberry for Raspberry Pi 4 with Radioberry Juice USB Board Compatible with Radioberry, for Ham Radio SDR Transceiver

Description

• The radioberry is actual a radio card (raspberry pi 4 hat) installed with the latest hardware V.Beta5, which can be plugged into a raspberry pi 4, forming a Software Defined Radio (SDR). RPI4 is the target for running the radioberry. The radio card uses an Analog Devices AD9866, which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz
• The radio card uses an Intell Cyclone 10LP FPGA, supporting the 10CL25.The firmware will be loaded via the raspberry pi. If you need a software to make it work, here's a software for your reference: drive.google.com/drive/folders/107P8LtLrib3iiQJd-Ooc6LsHVtl1SYay?usp=sharing
• Radioberry Juice USB board is RPI-4 version support SDR Console (V3), Thetis SDR, SPARK SDR, pihpsdr windows or linux. Support 4 receivers+1TX; Support CW Skimmer Server; Support windows VBCABLE to run wsjtx; Max 384khz bandwidth
• CW Skimmer server dll download: github.com/k3it/HermesIntf. CW Skimmer Server plugin for HPSDR network protocol compatible Software Defined Radios
• Power supply for the radio card is provided by the raspberry pi 4; For more infomation, please go visit: github . com/pa3gsb/Radioberry-2.x/wiki/Overview. How to start: 1. Install USB Juice board and Radioberry; 2. Download software: github.com/jumbo5566/Juice; 3. Run SparkSDR.exe

The radioberry is actual a radio card (raspberry pi 4 hat) installed with the latest hardware V.Beta5, which can be plugged into a raspberry pi 4, forming a Software Defined Radio (SDR). RPI4 is the target for running the radioberry. The radio card uses an Analog Devices AD9866, which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz
