AURSINC
AURSINC SDR Radioberry for Raspberry Pi 4 with Allstar RF Node UHF SR-FRS Radio Programming Module Pi-hat for Allstar, Echolink, APRS, Digital Modes Compatible for Raspberry Pi 2/3/4
3 283,35 kr.
5 472,25 kr.
-
Order within 4 hours and 3 minutes to get between June 11 - June 17 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description

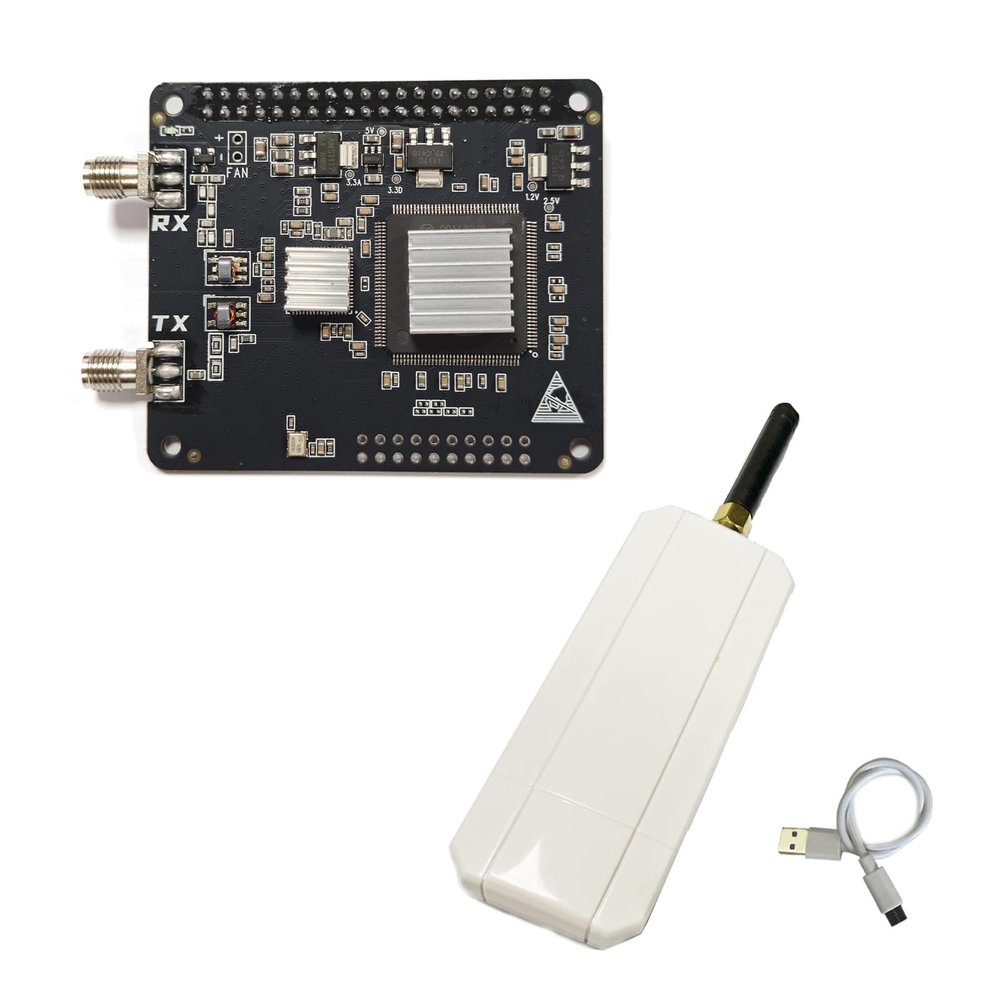

- [Radioberry] The radioberry is actual a radio card (raspberry pi 4 hat) installed with the latest hardware V.Beta5, which can be plugged into a raspberry pi 4, forming a Software Defined Radio (SDR). RPI4 is the target for running the radioberry. The radio card uses an Analog Devices AD9866, which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz
- [Radioberry] The radio card uses an Intell Cyclone 10LP FPGA, supporting the 10CL25.The firmware will be loaded via the raspberry pi. If you need a software to make it work, here's a software for your reference: drive.google.com/drive/folders/107P8LtLrib3iiQJd-Ooc6LsHVtl1SYay?usp=sharing
- [Radioberry] Power supply for the radio card is provided by the raspberry pi 4; For more infomation, please go visit: github . com/pa3gsb/Radioberry-2.x/wiki/Overview. CW Skimmer server dll download: github.com/k3it/HermesIntf. CW Skimmer Server plugin for HPSDR network protocol compatible Software Defined Radios
- [Allstar Node] allstar node SR-FRS Radio Programming Module (pin to pin replace SA-818 Module) is a versatile Raspberry-Pi hat that can be used for Allstar, Echolink, APRS, or any digital modes
- [Allstar Node] The both sides of the a TYPE C connecters have different function; PWR+COS(Flash) Communication with Raspberry on USB (main); PWR(GREEN) use /dev/ttyUSB0 to Change UHF RF node Frequency(only work when you want change UHF Freq (400-470). Use the program in this GitHub repository to program the radio module SR-FRS used for the Pi-Hat (github. com/jumbo5566/SRFRS) DCS Codes not support YET
