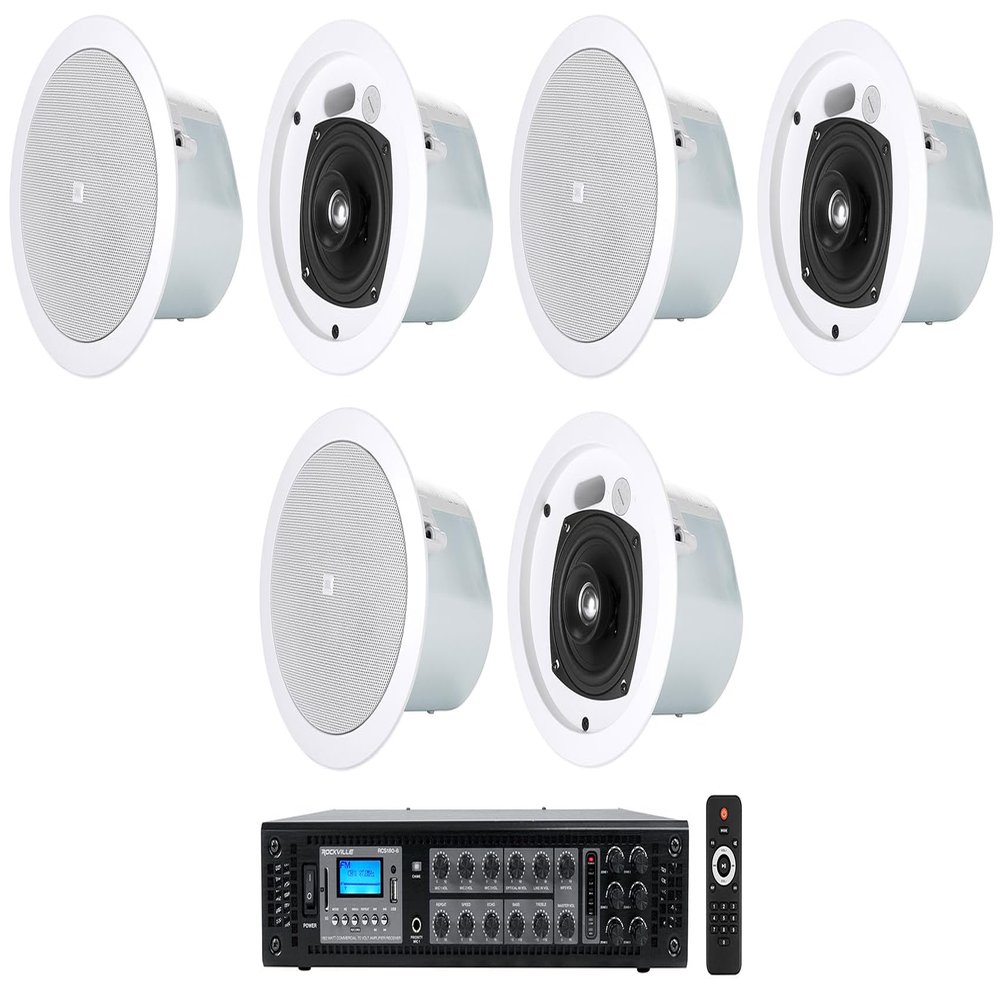

Audiosavings Bundle: (6) JBL Control 24CT 4" 70v Commercial Restaurant/Bar/Cafe White Ceiling Speakers Bundle with (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial Amplifier/Bluetooth (7 Item)

Description

• Package Includes: (3) JBL Control 24CT 4" 70v Commercial Restaurant/Bar/Cafe White Ceiling Speakers. (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. What's In The Box: 1 x Control 24CT, 1 x C-shaped support backing plate, 2 x Tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) 1 x Cutout template, 1 x Paint shield, 1 x Removable locking wiring connector. Amplifier, Remote, Rack Mount Ears, Power Cable, FM Radio Antenna, Owner's Manual, Warranty.
• Specifications of Control 24CT: Frequency Range80 Hz - 20 kHz. Power Capacity80 W Continuous Program Power; 40 W Continuous Pink Noise. Transformer Taps 70 V30 W, 15 W, 7.5 W & 3.7 W taps. Transformer Taps 100 V30 W, 15 W, & 7.5 W taps. Nominal Coverage Angle130 conical coverage. Directivity Factor (Q)2.4 dB averaged 500 Hz to 4 kHz. Directivity Index (DI)3.8 dB averaged 500 Hz to 4 kHz. Rated Maximum SPL102 dB @ 1 m (3.3 ft) Nominal Impedance16 ohms (Min Z 16.1 ohms @ 320 Hz) Safety Agency RatingSuitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Features of RCS180-6: Rockville RCS180-6 350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver. Capable of 70 volt, 100 volt, 8ohm, and 4 ohm. 70/100 volt RMS Power: 184 Watts. 4-16 ohm binding post speaker output. 6-Zones of speaker outputs - each zone has a separate volume control. 70 and 100 volt binding post outputs for single zone playback of all 180 watts. Built in Bluetooth audio streaming. FM radio tuner. USB input to play audio stored on a thumb drive (32gb max) SD card slot to play music stored on an SD Card (32gb max) Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3.
• Echo control for the mic inputs with speed and repeat adjustments. Built in clipping limiter to protect the amp and speakers. BASS and Treble control. Detachable euro-block speaker output terminals for easy installation. Chime button for making announcements. Top quality aluminum panel with industrial grade knobs. 5 segments signal level indication. Built in cooling system keeps component cool at all times. Inputs and Outputs: (2) Sets RCA AUX inputs. (3) Mic inputs. RCA Line output. Optical input. Detachable euro-block speaker output terminals for easy installation. 100V speaker red positive speaker output terminal. 70V speaker red positive speaker output terminal.
• 8 Ohm red positive speaker output terminal. Shared negative speaker output terminal. Specifications: Power Requirements: 120V / 50-60Hz. A Weighted Signal to Noise (@ 1W) -68.1dBA. A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA. Frequency response: 49Hz to 14.9 Khz. Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%. Weight: 22.7 lbs. Dimensions: 19" x 16" x 4" inches.

Description of Control 24CT:
The Control 24C is a compact ceiling speaker providing premium performance in background, foreground and music-plus-paging sound systems. The Control 24C is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The Control 24Cs 16 ohm impedance allows use of multiple speakers in parallel without having to use a more expensive constant voltage distributed system. The optional Control 24CT version includes a multitap transformer for 70V/100V systems. JBLs exclusive SonicGuard overload protection is a non-invasive loudspeaker protection system that is inaudible to the listener, ensuring reliability while providing full fidelity sound. The computer-optimized ported enclosure delivers warm, smooth bass response. Low frequency output can be further augmented with the addition of one of the Control Contractor subwoofer models. The 100 mm (4 in) woofer features a polypropylene-coated cone and pure butylrubber surround for long life, even in high humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling. The coaxially mounted 19 mm ( in) titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listening area. The extremely broad 130 coverage pattern allows for fewer speakers to be used, making for a simpler and less expensive installation.
Dimensions: Outside Dimensions (H x Dia)200 x 195 mm (7.9 x 7.7 in) 184 mm (7.2 in) front of ceiling tile to back of backcan. Cutout Size168 mm (6.6 in) Net Weight (ea)2.7 kg (6 lb) Shipping Weight (pair)6.4 kg (15 lb) Design: Enclosure Backcan - Formed steel. Baffle/Rim - Medium impact polystyrene, fire rated UL94V-0. Termination Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm)
Description of RCS180-6:
Rockville is proud to introduce our new RCS series of products. The RCS180-6 is a 180 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Caf/Lounge/School/Conference room or any other setting where many speakers are needed. This model offers 180 watts at 70 volt and you can either use the binding posts for single zone applications or use the speaker wire outputs and split the power up to 6 zones. (Do not exceed 100 watts on a single zone). Each zone can have an unlimited amount of speakers wired in parallel. You can also split the 180 watts into 6 zones as you please. For example you can put 25 watts to each of the 6 zones or 50 watts to 2 zones and 12 watts to each of the remaining zones. Simply put, if the total watts are under 180 then you are OK. (Most professionals recommend you not exceed 80% of the amp power. We recommend your speakers watts not to be more than 150 total on the speaker taps. With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements.The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector. Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable. This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver. Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use commo
