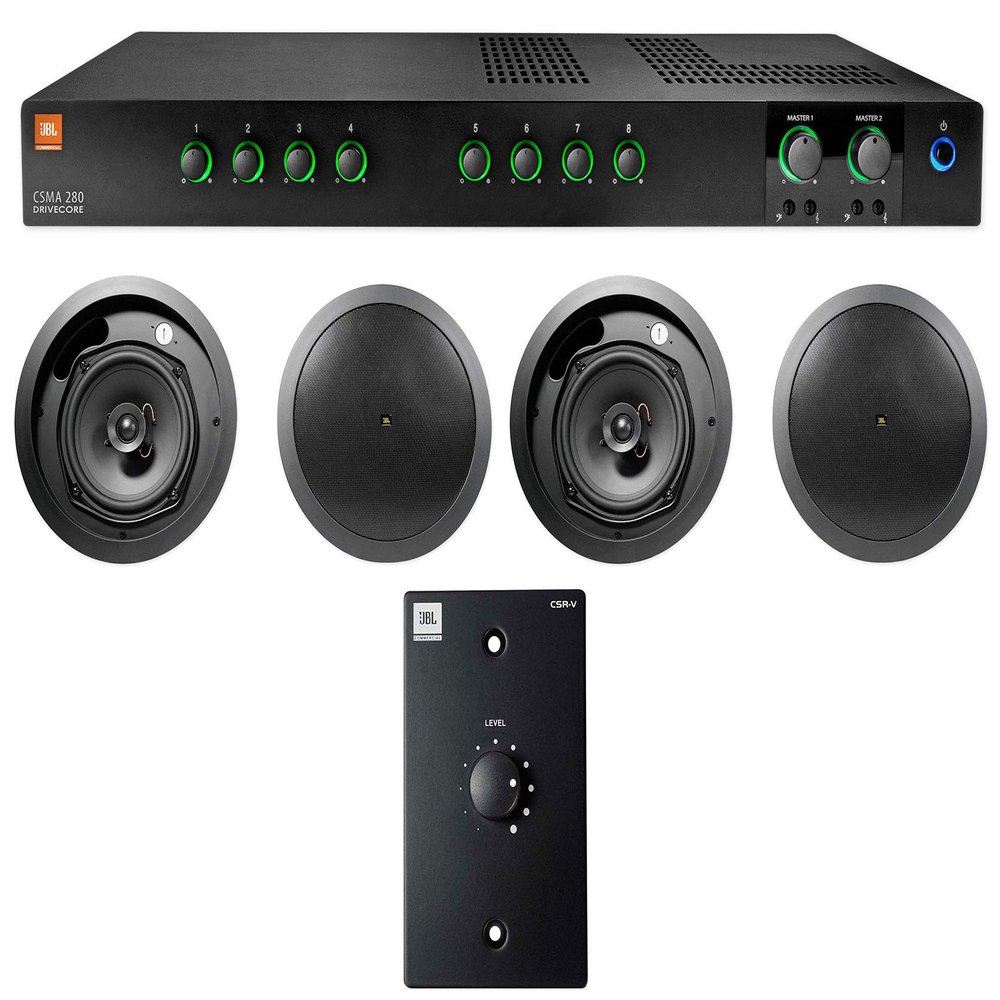

Audiosavings Bundle: (1) JBL CSMA280 Commercial Amplifier Bundle with (4) JBL Control 16C/T-BK 6.5" 30w 70v Commercial Ceiling Speakers, (1) JBL CSR-V Black Wall Volume Controller (7 Items)

Description

• Package Includes: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs, (2) Pair of JBL (2) CONTROL 16C/T-BK 6.5" 30w 70v Commercial Ceiling Speakers For Restaurant/Bar, (1) JBL CSR-V Black Wall Volume Controller For Select CSM/CSMA/VMA Mixer Amplifiers
• Features of CSMA280: JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V and 8 inputs, For Commercial and Industrial Use, 80W into 8 or 4 Ohm Loads, 10W Per Channel, 8 Input Channels, 2 Output Channel, Usable with 70 & 100V Systems, Euroblock Mic/Line & RCA Inputs, Hi-Z & 27V Phantom Power Switches, Sleep Mode & 2 Auxiliary Outputs, Voice Activated Ducking & Priority Mute
• Specifications: Maximum Output Power: 800 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD, Insertion Loss: 1 dB maximum for 70 and 100 V outputs, Continuous Power: 10 W per channel, Line Output Level: 5.0 V RMS into 10 kOhms, Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS, Number of Channels: Input: 8, Output: 2.
• Features of CONTROL 16C/T: (2) JBL (2) CONTROL 16C/T-BK" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar, Components:, 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround, 19 mm (0.75 in) soft-dome liquid-cooled tweeter, Blind-mount backcan for quick and easy install, Dual conduit/cable clamps, Combined 70V/100V and low impedance direct operation, 50 Watts at 8O nominal setting, 30W multi-tap at 70V/100V
• Features of CSR-V-BLK : JBL CSR-V Black Wall Volume Controller For Select CSM/CSMA/VMA Mixer Amplifiers, Color: Black, For CSM-21 & CSM-32 Mixers, Controls Volume, Dual RJ45 Connectors, Uses Cat 5 Cable

Description of CSMA280: Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).
Description of (2) CONTROL 16C/T-BK: Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
Description of CSR-V-BLK:The JBL Commercial CSR series remote controls allow analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors up to 1000 feet (305 m) length, the CSR series remote controls allow you to remotely select the source and/or control the volume on the CSM mixer. Using the CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer.
