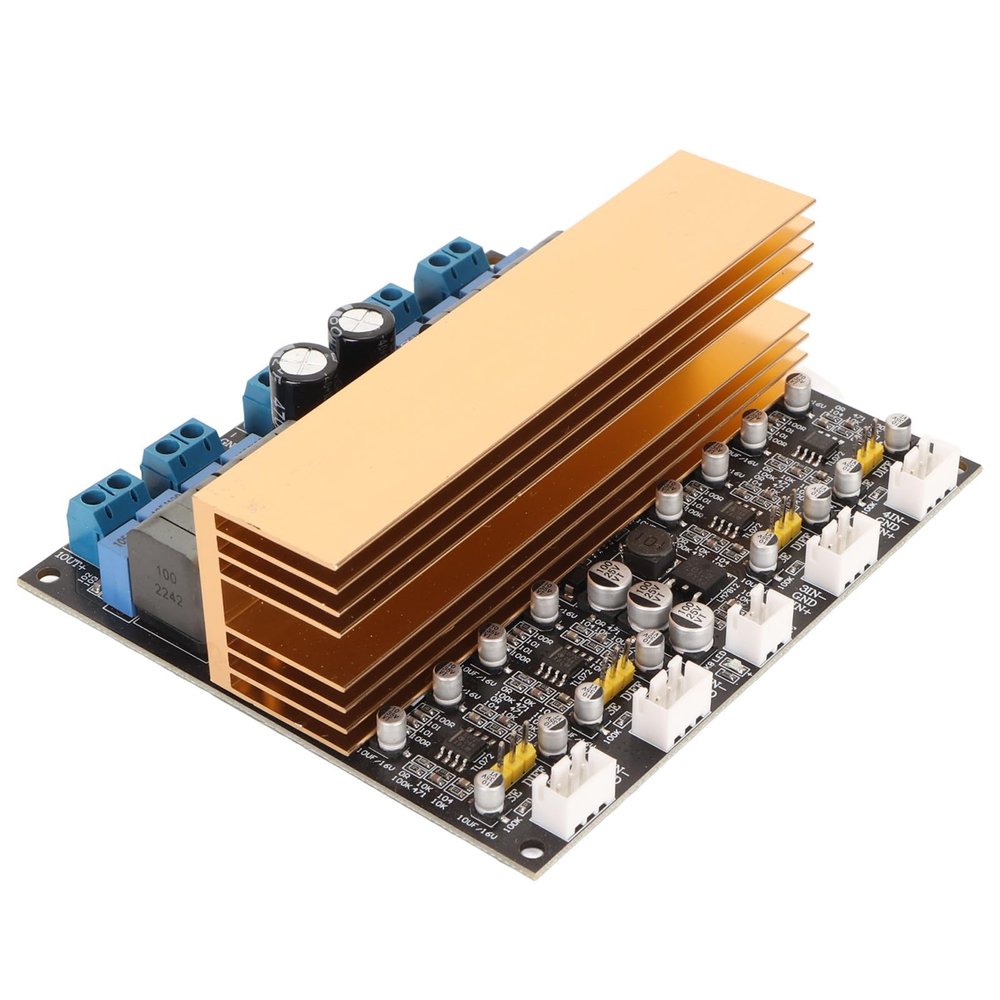

Brilluxa TPA55 Power Amplifier Board, Class D 4 Channel High Power Audio Digital Amplifier Module for Speaker System

Description

• [Class D] High performance power amplifier board with Class D efficiency and true high end sound quality. Switching to high accuracy chip resistors maintains excellent SNR ratios.
• [Low Distortion] Advanced integrated feedback design and proprietary high speed gate driver error correction. This allows the device to maintain ultra low distortion throughout the sound frequency band for sound quality.
• [Premium Chip] Digital amplifier board adopts imported TPA55 chip, quality is guaranteed. Using special inductors to keep the sound clear and powerful, will bring you an unexpected experience.
• [Powerful Sound] AMP board adopts sound special inductor to ensure clear and powerful sound, and the main filter electrolytic capacitor adopts 470UF 50Vx4 capacity to ensure strong power support.
• [PCB Material] Power amplifier module, PCB using 1.6mm/0.06in thick double sided plate, 2.0oz copper thickness, spray tin full process, to ensure the performance of large and small current passing.

Item Type: Power Amplifier Board
Material: PCB, Metal
Chip Model: TPA55
Operating Mode: Class D
Quiescent Current: 150mA
Operating Efficiency: More Than 90%
Output Power:
315W 4, Distortion 10% x 4
185W 8, Distortion 10% x 4
260W 4, Distortion 1% x 4
150W 8, Distortion 1% x 4
Frequency Response: 20Hz to 20KHz
Dynamic Range: More Than 100 DB
SNR: More Than 111 DB
Operating Voltage: DC24-48V

Package List
1 x

Power Amplifier Board
