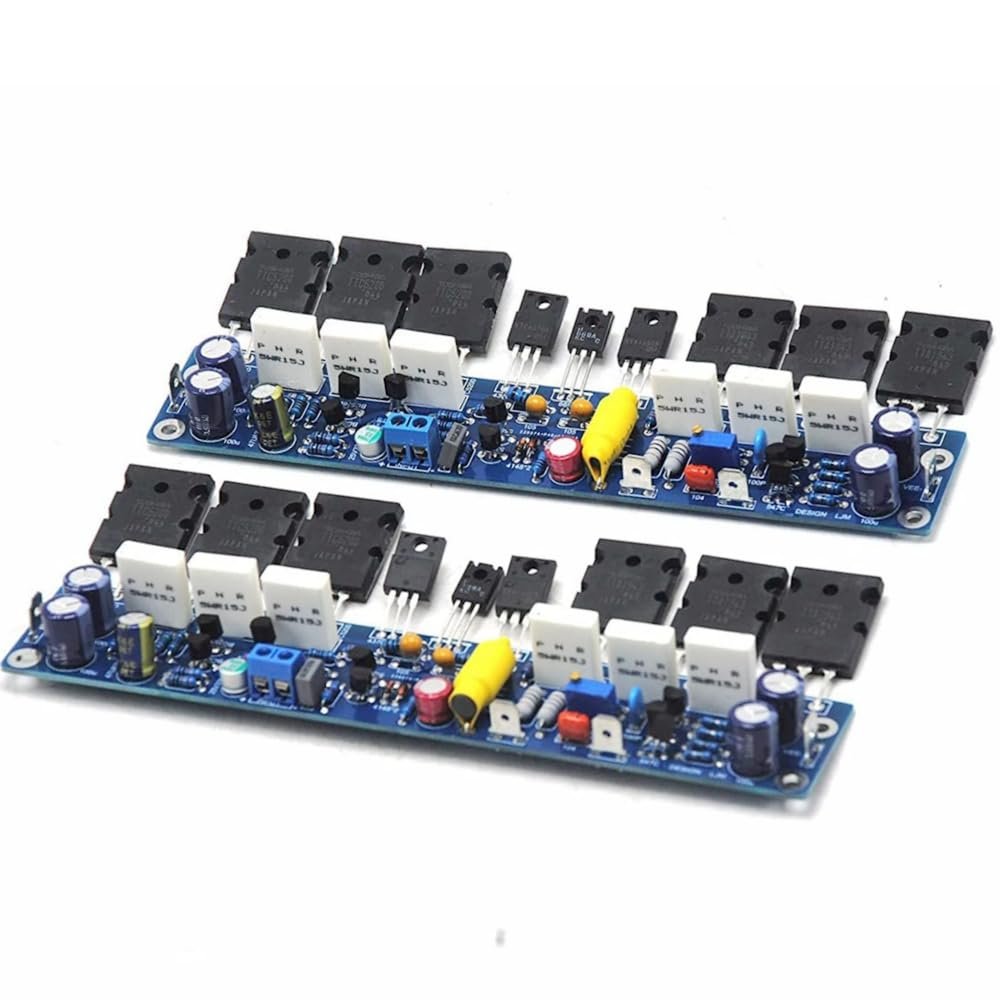

Assembled L10 2SA1943 2SA5200 Dual Power Amplifier Board 300W+300W AMP

Description

• Amplifier board Dimensions: 200MM X 68MM
• CPI (A) output power: 50W +50 W power without distortion 8 ohms
• Class A and B the maximum output power: 300W to +300 W
• Recommended input voltage: 28V-45V DC input.
• Recommended transformer parameters: AC Dual 24-35V AC output power of 300W or more

Parameter:

Amplifier board Dimensions: 200MM X 68MM
CPI (A) output power: 50W +50 W power without distortion 8 ohms
Class A and B the maximum output power: 300W to +300 W
Recommended input voltage: 28V-45V DC input.
Recommended transformer parameters: AC Dual 24-35V AC output power of 300W or more

Features:
L10 LJM original circuit design, using 2.0 mm FR4 double-sided board based 2OZ copper, 5 foot ring precision 0.5mm copper resistance, small capacitance using all the top class Japanese fever tonic capacitance, all New 2SA1943 and 2SA5200 tube per channel 6 (very good speed and control) to promote the management of 2SC5171 and 2SA1930 audio on the tube, the circuit design is very reasonable, the machine completely current sound, pure sound quality is pure and honest, Excellent sound detail. A sound is warm, the sound quality than the tube amp for 4-12 inch box with a variety of names.

12 with the insulating film distribution board

The amplifier board a channel one, composed of one to two stereo power amplifier, power amplifier to make a finished product but also together with the heat sink and power rectifier board, transformer enclosures, etc.

Package:
1pc Assembled L10 TTA1943 TTC5200 Class AB Dual Power Amplifier Board 300W+300W AMP
