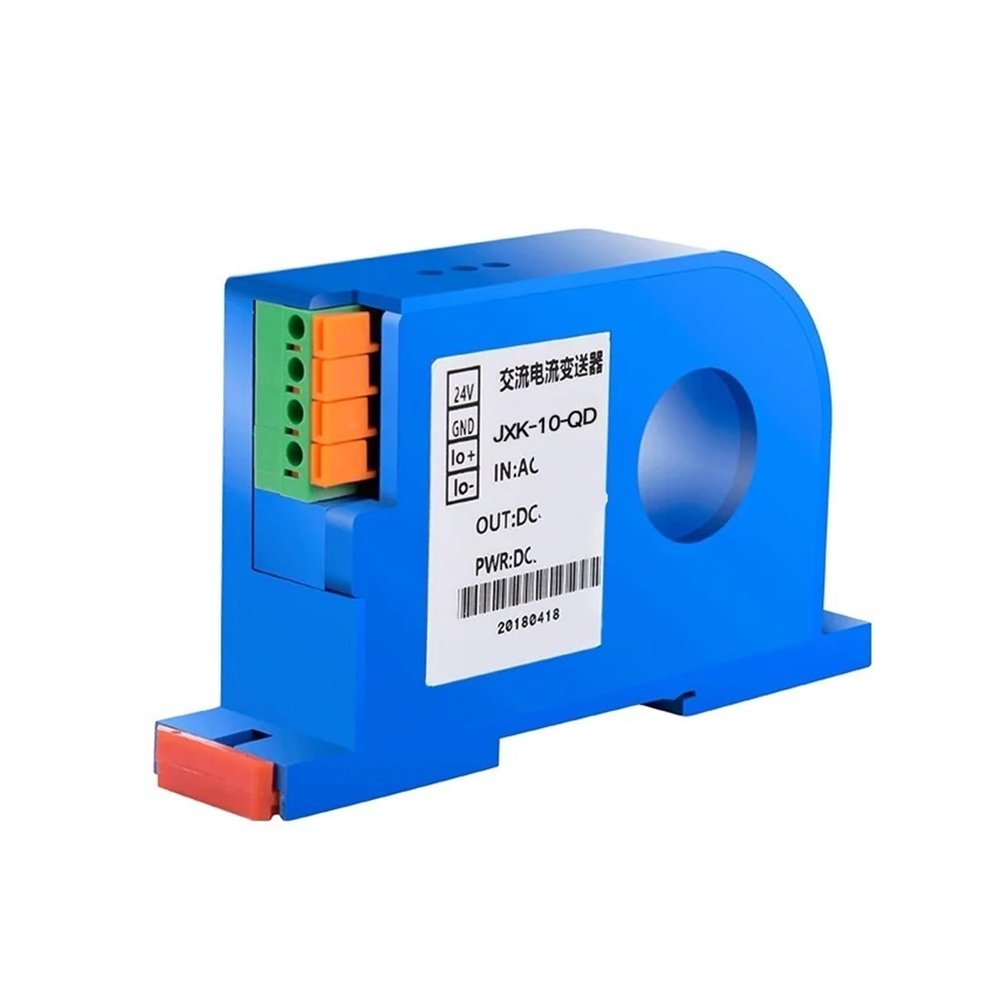

GVMUKNYE Aperture 22mm DC 0-10V 4-20mA Output Sensor Current Transformer AC 10A 20A 30A 50A 100A 200A Current Transmitter DC12V(AC 0-300A,DC 0-10V Output)

Description

• Isolation Transformers

Isolation Transformers
Install
Flat screw fixation
Original rated current
100A;200A;500A;600A;800A;customized
Primary side measurement range
100A~1200A
Rated output
0~20mA;4~20mA;0~5V;0~10;Customized
Auxiliary power
DC12V;DC24V;DC15V;AC220V
Carrying capacity
Voltage output: 5mA;
Current output: 6V
Temperature drift
500PPM/
Current consumption
25 mA
Response time
<;200 ms
Isolation voltage resistance
2.5kV/50Hz, 1 minute
Quiescent Current
<;10mA
Action current
<;40mA
Frequency bandwidth
DC~20KHz
Offset voltage
20 mV
Zero output
0.15mA
Operating temperature
-10~+70
Storage temperature
-25~+85
