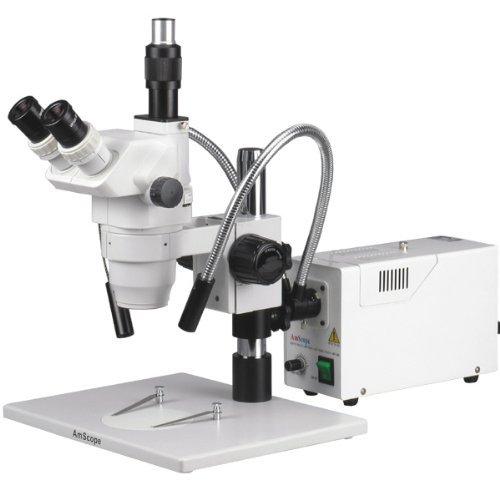

AmScope ZM-1TZ-FOD Professional Trinocular Stereo Zoom Microscope, EW10x Eyepieces, 3.35X-90X Magnification, 0.67X-4.5X Zoom Objective, Dual-Gooseneck Fiber-Optic Light, Large Pillar-Style Table Stand, Includes 0.5x and 2.0x Barlow Lenses

Description

• Professional stereo microscope with pillar stand has long working distance to enable users to perform work or manipulate large items, including circuit boards and dental appliances
• Trinocular viewing head with pair of 10x extreme-widefield eyepieces, adjustable interpupillary distance, fixed 45-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing
• 0.67x-4.5x zoom objective provides continuous zoom magnification and longer focal length for inspecting large-scale specimens, a 0.5x Barlow lens extends the working distance, and a 2.0x Barlow lens extends the magnification range
• Dual gooseneck fiber-optic light with 150W cool-light halogen light source for observing temperature-sensitive specimens, and a rheostat controls light intensity
• Extra-large table stand with reversible black and white stage plate provides contrast with light- and dark-colored specimens, and stage clips secure the specimen during viewing

The AmScope ZM-1TZ-FOD professional trinocular stereo zoom microscope has a pair of 10x extreme-widefield high-eyepoint eyepieces, a 0.67x-4.5x zoom objective, two Barlow lenses, and a pillar stand. The microscope has an overall magnification range of 3.35x-90x. The trinocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The EW10x22mm extreme-widefield high-eyepoint eyepieces combine with the 0.67x-4.5x zoom objective to provide zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.
The dual-gooseneck fiber-optic light has two adjustable lights on a 150W/21V cool-light halogen light source for observing temperature-sensitive specimens. Each 22" light can be positioned independently, and a rheostat controls the amount of light emanating from the lamp. Power and adjustment controls are located on a control box to speed adjustments. The light source has a forced-air cooling system to prevent overheating, and a built-in filter slot can be used to change the light color (filters sold separately). The top-mounted door eases access to the bulb, and automatically turns off the power supply when opened. The light uses a 110V-120V power supply. The pillar-style stand secures the head for precise focusing. Bilateral coarse focus eases use for left- and right-handed users. The extra-large table stand has a reversible black and white stage plate that provides contrast with light and dark-colored specimens, and stage clips to secure the specimen in place. The stage plate has a 3-3/4" diameter (95mm). The steel pillar is 12" (305mm) high and has a 1-1/4" (32mm) diameter. The stage is 3/4 x 10 x 12-1/2 inches/20 x 280 x 320mm (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). SpecificationsHeadTrinocularMagnification range3.35x-90xZoom objective power
0.67x-4.5xEyepieces (DIN, 30mm)EW10x22mm high-eyepointTrinocular portC-Mount or 23mmField of view2-1/4"Optical working distanceUp to 8"Microscope standPillar-style table standHead movementX-axisIllumination typeEpiscopic (reflected)Light sourceGooseneck fiber-optic, 150W/21V halogenPower110V-120V

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA. What's in the Box? AmScope ZM-1TZ-FOD stereo zoom microscope with pillar stand EW10x22mm eyepieces, 30mm, one pair 0.67x-4.5x zoom objective 0.5x Barlow lens 2.0x Barlow lens Gooseneck fiber-optic light (HL250-AY) Focus rack Eye guards, one pair Stage clips, one pair
