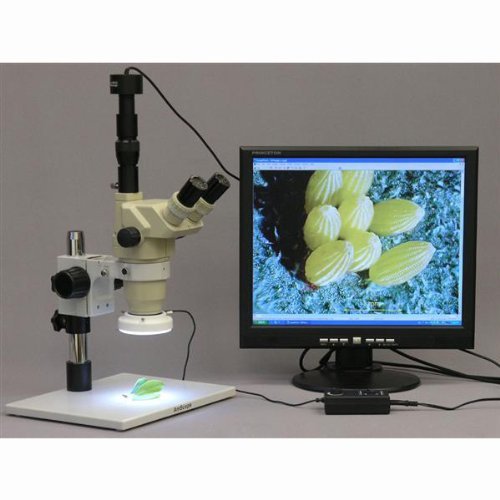

AmScope ZM-1TZ-64S-M Digital Professional Trinocular Stereo Zoom Microscope, EW10x Eyepieces, 3.35X-90X Magnification, 0.67X-4.5X Zoom Objective, 64-Bulb LED Ring Light, Large Pillar-Style Table Stand, 110V-240V, Includes 0.5x and 2.0x Barlow Lenses,

Description

• Digital professional stereo microscope with pillar stand has long working distance to enable users to perform work or manipulate large items, including circuit boards and dental appliances, and a 1.3MP camera with reduction lens and USB 2.0 output for capturing or displaying images on a computer or projector
• Trinocular viewing head with pair of 10x extreme-widefield eyepieces, adjustable interpupillary distance, fixed 45-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing
• 0.67x-4.5x zoom objective provides continuous zoom magnification and longer focal length for inspecting large-scale specimens, a 0.5x Barlow lens extends the working distance, and a 2.0x Barlow lens extends the magnification range
• Removable rheostat-controlled 64-bulb LED ring light provides intensity control and bright, cool light for working with temperature-sensitive or live specimens
• Extra-large table stand with reversible black and white stage plate provides contrast with light- and dark-colored specimens, and stage clips secure the specimen during viewing

The AmScope ZM-1TZ-64S-M digital professional trinocular stereo zoom microscope has a pair of 10x extreme-widefield high-eyepoint eyepieces, a 0.67x-4.5x zoom objective, two Barlow lenses, and a pillar stand. The 1.3MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The microscope has an overall magnification range of 3.35x-90x. The trinocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port. The EW10x22mm extreme-widefield high-eyepoint eyepieces combine with the 0.67x-4.5x zoom objective to provide zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A digital stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected, and is used where image capture, detailed records, or documentation is required.
The 1.3MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.37x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIFF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).
The removable 64-bulb LED ring light provides bright, cool light for working with temperature-sensitive or live specimens. The ring light provides shadow-free illumination, and a rheostat controls the amount of light emanating from the lamp. Power and adjustment controls are located on the light head. The light uses a 110V-240V variable power supply. The pillar-style stand secures the head for precise focusing. Bilateral coarse focus eases use for left- and right-handed users. The extra-large table stand has a reversible black and white stage plate that provides contrast with light and dark-colored specimens, and stage clips to secure the specimen in place. The stage plate has a 3-3/4" diameter (95mm). The steel pillar is 12" (305mm) high and has a 1-1/4" (32mm) diameter. The stage is 3/4 x 10 x 12-1/2 inches/20 x 280 x 320mm (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). SpecificationsHeadTrinocularMagnification range3.35x-90xZoom objective power
0.67x-4.5xEyepieces (DIN, 30mm)EW10x22mm high-eyepointTrinocular portC-Mount or 23mmField of view2-1/4"Optical working distanceUp to 8"Microscope standPillar-style table standHead movementX-axisIllumination typeEpiscopic (reflected)Light source64-bulb LED ring light with rheostatPower110V-240V
Camera SpecificationsResolution1.3MP (1280 x 1024 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2" Aptina MT9M111 CMOS (color)Magnification40xReduction lens0.37xMounting size23mm or C-MountFrame rate50 fps at 320 x 256; 26 fps at 640 x 512; 15 fps at 1280 x 1024Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIFF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and Linux

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking thr
