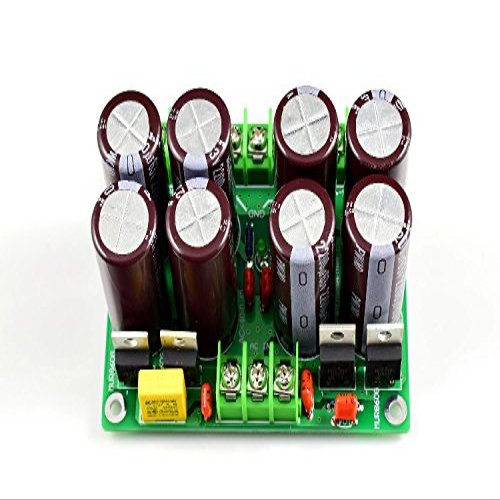

Amplifier Rectifier Power Supply Board LJM 50V 3300uf

Description

• Weight: 160 g
• Size: 70*84MM
• With sockets, VCC+ is a positive power supply with two wire sockets, VEE- is a negative power supply with two wire sockets, and GND is a ground wire with five wire sockets for easy installation.
• 50V3300UF power supply board is suitable for operation Voltage AC input Amplifier with less than

Decription:

Weight: 160 g
Size: 70*84MM

Using Fast Recovery Low Dropout Diode Rectification MUR860G 4
MUR860G Features:
Vrsm=600v
IFRMS=25A TVJ=TVJM
IFAVM=12A TC=100oC; rectangular, d=0.5
IFRM=150A tp<10usrep. rating, pulse width limited by TVJM
Trr=50NS IF=1A; -di/dt=50A/us; VR=30V; TVJ=25oC
ADVANTAGES
High reliability circuit operation
Low voltage peaks for Protection circuits
Low noise switching
Low losses
Operating at lower temperature or Space saving by Imported original capacitor. A total of 63V2200UF*8
Adopting ultra-low equivalent resistance ESR,
PW series has extremely low ESR, LOW ESR
High life. LONG LIFE. It is the highest grade in high-voltage and large-capacity capacitors.
It has a life of 8000 hours at 105C and approximately 96,000 hours at normal operating temperature of 45 degrees.
Can be equipped with capacitor 63V2200 UF*8 only (input voltage less than AC 40-0-40, output voltage less than 60)
50V3300UF power supply board is suitable for operation Voltage AC input Amplifier with less than With sockets, VCC+ is a positive power supply with two wire sockets, VEE- is a negative power supply with two wire sockets, and GND is a ground wire with five wire sockets for easy installation.
capacitor 50V3300UF *8 PCS,
Package:
1 pc Amplifier Rectifier Power Supply Board 50v 3300uf
