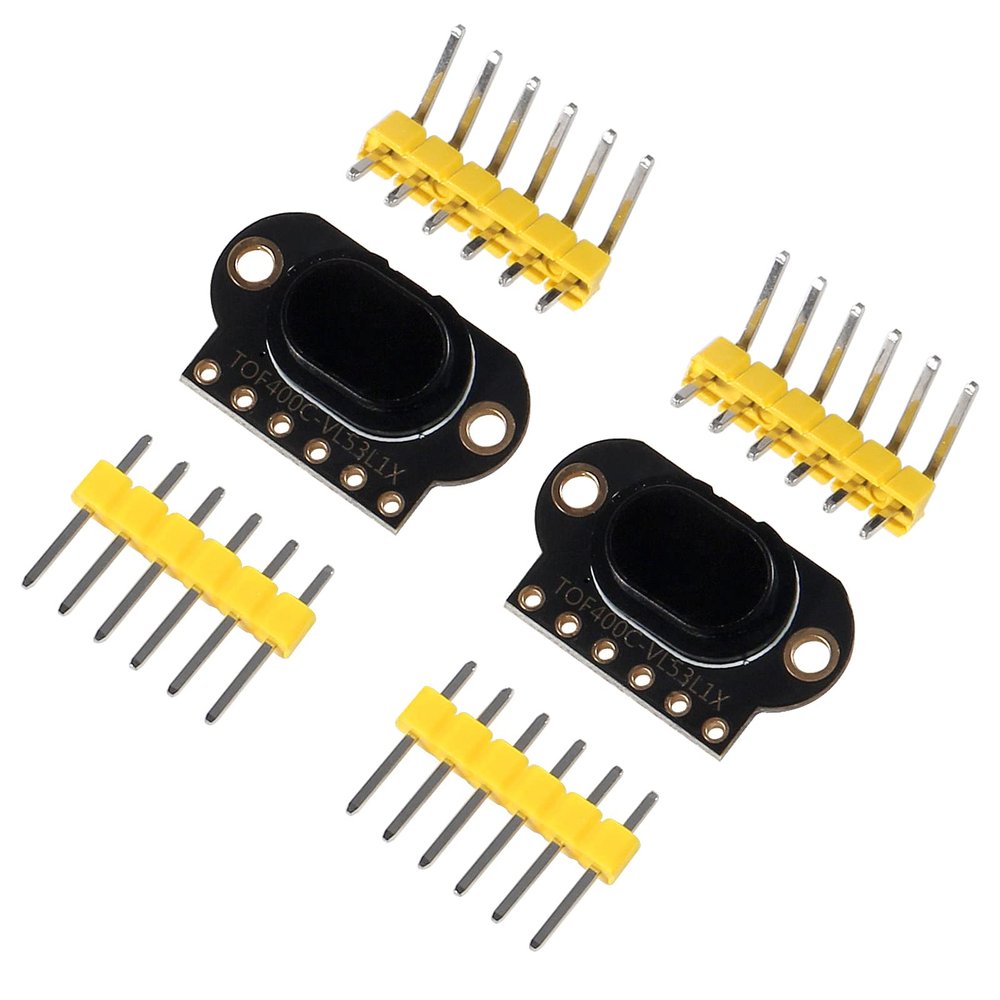

AITRIP 2PCS TOF400C VL53L1X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm ToF Distance Finder Mini Laser Distance Sensor IIC Output for Ardunio STM32

Description

• Laser ranging sensor module ToF time-of-flight distance IIC output
• The time of flight sensor Working temperature: -20C~70C; Storage temperature: -20C~80C
• Development routines/software: Provide Ardunio routines/STM32 routines
• The TOF400C VL53L1X 4M Communication mode: IIC modeRanging chip: VL53L1X
• The vl53l1x Measuring distance: 4M (Max)
• Infrared emission mechanism: 940nm

TOF400C
Ranging chip: VL53L1X
Measuring distance: 4M (Max)
Measurement blind zone: 0-4CM
Infrared emission mechanism: 940nm
FOV field of view: 27 degrees
Communication mode: IIC mode
Development routines/software: Provide routines/STM32 routines
Working voltage: 3.0V-5V (DC)
Working current: 40mA (Max)
Working temperature: -20C~70C
Storage temperature: -20C~80C

package: 2PCS TOF400C-VL53L1
