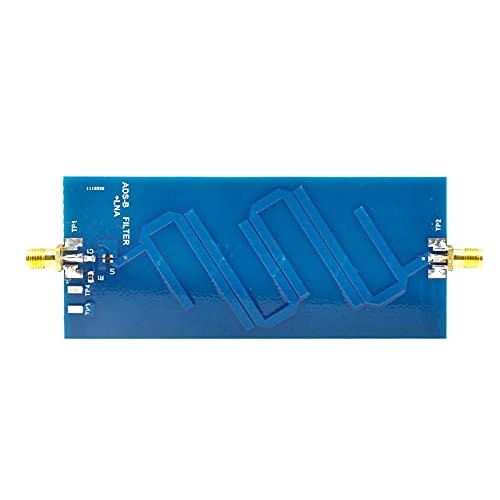

ADS-B Active Receiving Antenna 1090 MHz ADS-B + LAN Filter Bandpass 2.5-5.5V 20 dB Active Gain SMA Standard Head

Description

• ADS-B Active Receiving Antenna 1090 MHz ADS-B + LAN Filter Bandpass 2.5-5.5V 20 dB Active Gain SMA Standard Head

ADS-B Active Receiving Antenna 1090 MHz ADS-B + LAN Filter Bandpass 2.5-5.5V 20 dB Active Gain SMA Standard Head
Product description
ADS-B active receiving antenna 1090 MHz
1 Technical indicators
1) Operating frequency: 1090 15 MHz
2) Passive gain: 2dBi (dipole antenna)
3) Antenna polarization: omni-directional vertical line polarization
4) active gain: 20 dB
5) out-of-band rejection:> 30 dB
6) Working voltage: 2.5-5.5V (skin negative core)
7) operating current: 80 ma
8) system impedance: 50 ohms
9) Antenna weight: 23.4g
10) Dimensions: 12.55x4.6x0.66cm
11) Connector shape: SMA standard female head (inner outer screw hole)
Package:
1 x ADS-B active receiving antenna
