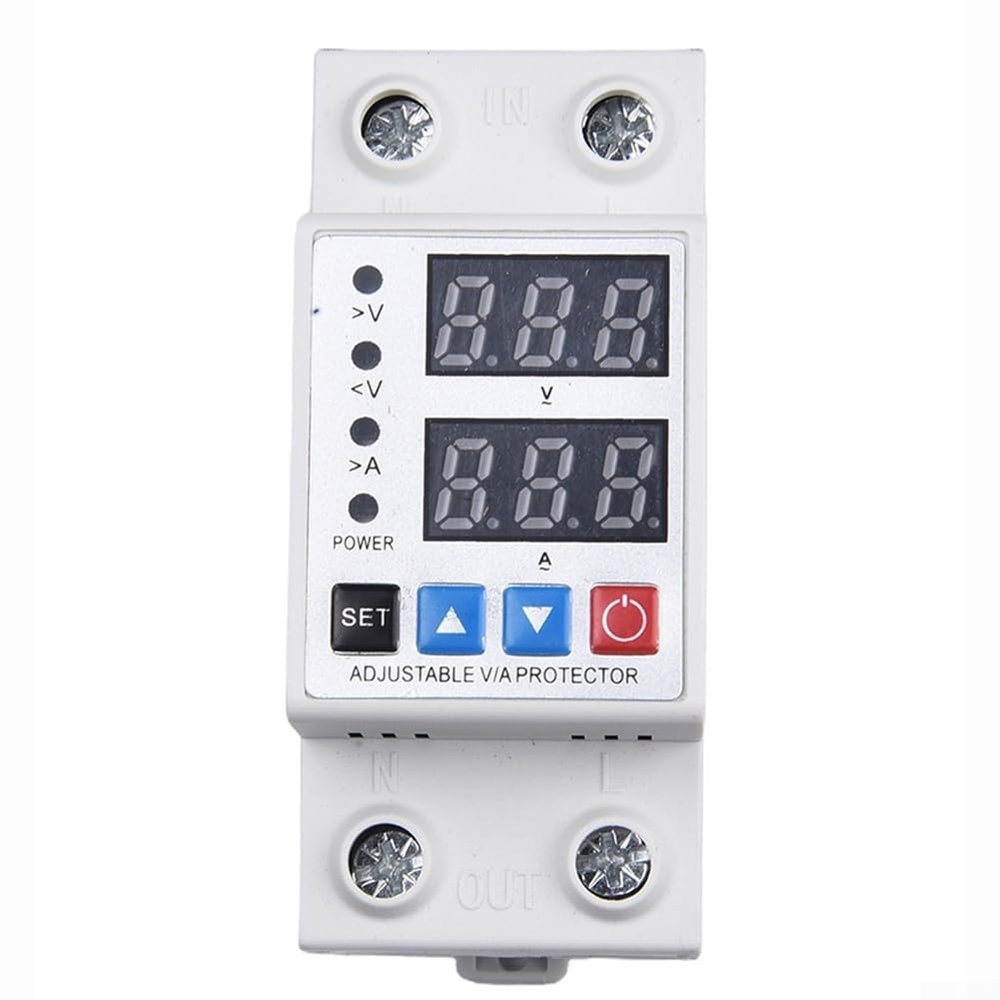

Adjustable Voltage Protector with Dual Digital Display for AC 230V Single-Phase, Overvoltage Undervoltage Overcurrent Protection, 1A-63A Range, Automatic Recovery, DIN Rail Mount(40A)

Description

• Comprehensive Overvoltage, Undervoltage & Overcurrent Protection: Automatically monitors single-phase AC 230V circuits and instantly cuts off power to prevent damage to household appliances. Features adjustable overvoltage (230-300V), undervoltage (140-220V), and overcurrent (1A-63A) settings for complete home electrical safety.
• Intelligent Automatic Recovery Function: Automatically restores power once the circuit voltage returns to normal, eliminating the need for manual reset and providing convenient, reliable home power management.
• Real-Time Voltage & Current Display: Built-in voltage and current measurement allows you to monitor circuit status at a glance, facilitating easy troubleshooting and preventive maintenance for enhanced appliance protection.
• Adjustable Settings & High Compatibility: Offers 40A or 63A optional current ratings and adjustable power-on delay (1-500 seconds) to suit various home distribution needs. Features 35mm DIN rail mounting for easy integration into residential electrical boxes.
• Efficient Performance: Constructed from high-quality ABS material with a mechanical life of 100,000 operations and low power consumption (<2W). Optimized for reliable home use, it provides robust voltage limiting and automatic recovery to safeguard your valuable electronics.

Features:
Automatic overvoltage and undervoltage for protection is suitable for single-phase AC 230V, 50/60Hz, rated working current 63A or load below 80A.
It is mainly used for overvoltage, undervoltage and overcurrent for protection of single-phase electrical equipment in residential box-type incoming lines or distribution lines.
Its main feature is that when the circuit has overvoltage, undervoltage, overcurrent and other faults, the product can instantly cut off the power supply to protect the electrical equipment from damage, and when the circuit voltage returns to normal, it can automatically connect the power supply.
1. Overvoltage for protection
2. Undervoltage for protection
3. Overcurrent for protection
4. Automatic recovery
5. Voltage display (voltage measurement)
6. Current display (current measurement

Specifications:
Part name: Adjustable voltage protector
Color: White
Material: ABS
Size: As shown
Voltage: 40A.63A (optional)
Product model: YC6VA
Voltage: 230VAC 50/60Hz
Overcurrent: 1A~40A/1A~63A, adjustable
Overvoltage: 230~300V, adjustable
Undervoltage: 140~220V, adjustable
Power-on delay: 1s~500s (default 10s)
Power consumption: <2W
Motor life: 100,000 times
Installation: 35mm DIN rail

Package contents:
1 * Adjustable voltage protector
