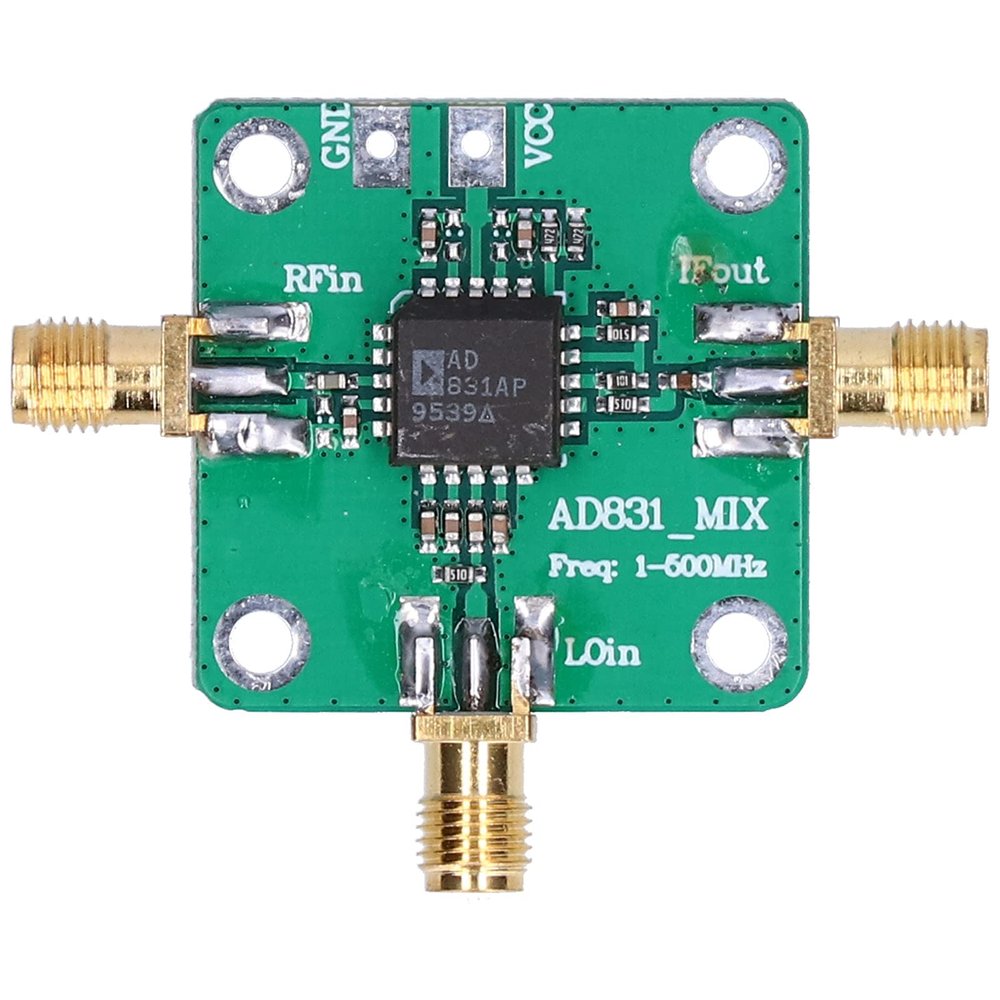

AD831 Mixer Module RF Bandwidth Single Chip Radio Converter 1 to 500 MHz for HF VHF Receivers and DMR Base Stations Single Power Supply Design with 250 MHz Output Bandwidth

KLANATA

AD831 Mixer Module RF Bandwidth Single Chip Radio Converter 1 to 500 MHz for HF VHF Receivers and DMR Base Stations Single Power Supply Design with 250 MHz Output Bandwidth

316,60 kr. 527,66 kr.
Buying Bulk?
  • Order within 6 hours and 29 minutes to get between June 11 - June 17
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • Noise Figure and Performance: This mixer module features a 10.3 dB SSB noise figure at 70 MHz with no insertion loss and eliminates the requirement for external duplexers or passive termination.
  • Wide Dynamic Range: The AD831 provides a +24 dBm third order point and achieves -10 dBm LO power consumption, removing the need for high power drivers and reducing shielding or isolation issues.
  • and Wide Bandwidth: RF and LO operating frequencies reach up to 500 MHz while the single ended voltage IF output provides a 250 MHz bandwidth for signal processing.
  • Single Power Supply Design: Designed for operation with a single power supply, this module includes DC isolation capacitors on the RF, IF, and LO ports for simplified circuit integration.
  • Technical Application Versatility: Suitable for HF and VHF receiver down conversion, DMR base station second mixers, ultrasound imaging Doppler shift detection, and DC coupling for baseband frequency conversion.
