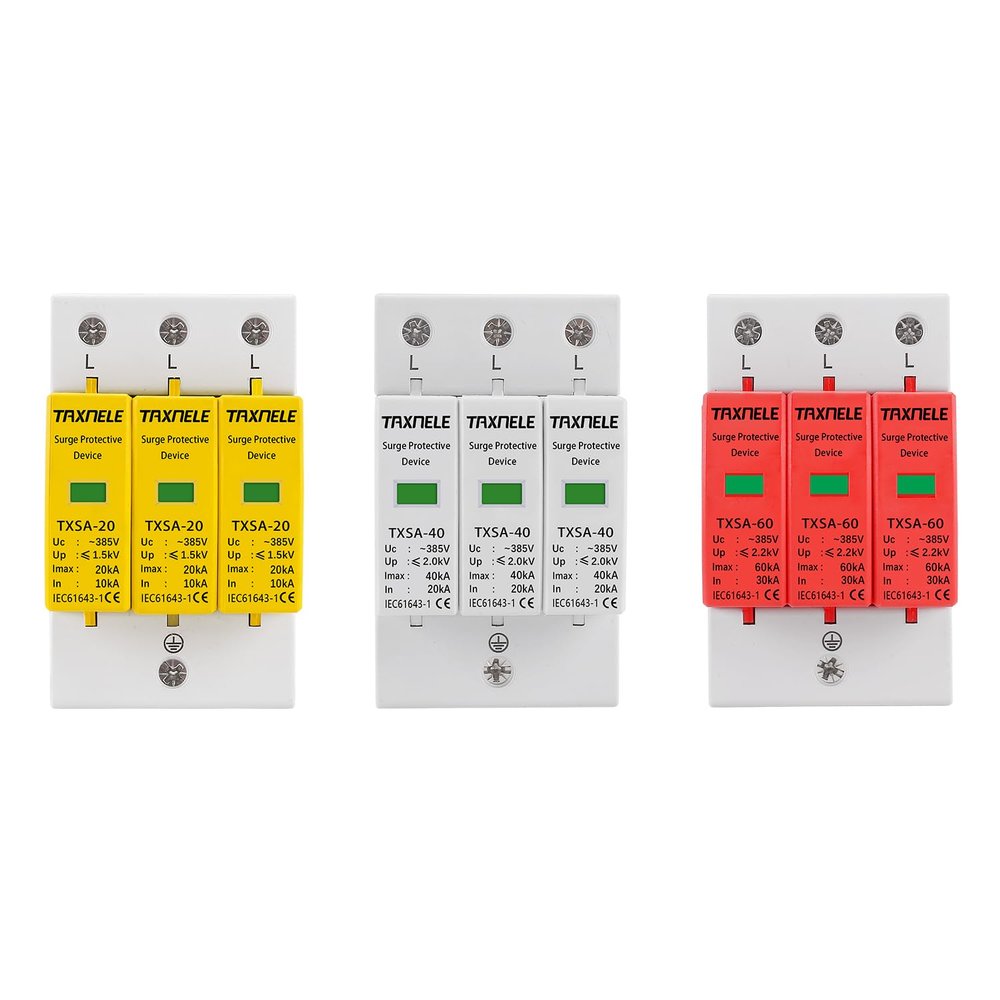

AC SPD 3P 385V 20KA 40KA 60KA House Lightning Surge Protector Surge Protective Device Low-Voltage Arrester Device 10KA 30KA 35mm DIN Rail Mounting (30-60KA)

Description

• Effective Circuit ProtectionThe surge protector perfectly protects the electrical system from lightning strikes or overvoltages.
• Fast ResponseResponse time: 25ns;This surge protector can quickly respond to lightning strikes and unload the voltage to protect your home appliances and your safety. This surge protector has a visual window with red and green indicators for at-a-glance power switching.
• Easy to Use The lightning arrester is DIN rail mounted, removable assembly, easy to plug and unplug. The circuit connection is very simple, it only takes a few minutes to complete the simple wiring, easy to use and maintain.
• Stable and DurableThe lightning arrester shell is made of high quality PC material, with stable structure, excellent performance and long service life. The anti-crack design prevents the fasteners from cracking and makes wiring simple and easy. With excellent internal components, especially the precision chip
• ApplicableIt is suitable for providing safety protection for electronic equipment, instrumentation and communication lines, etc

Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;

Max Continuous Operating Voltage (Uc~)385VAC
Voltage Protective Level (Up): 2.2kV
Nominal Discharging Current (In): 10KA/20KA/30KA
Max Discharging Current: 20kA/40kA/60kA
Response Time: <25ns, 50/60Hz
Number of poles: 3P
Standard: IEC/EN 61643-1
