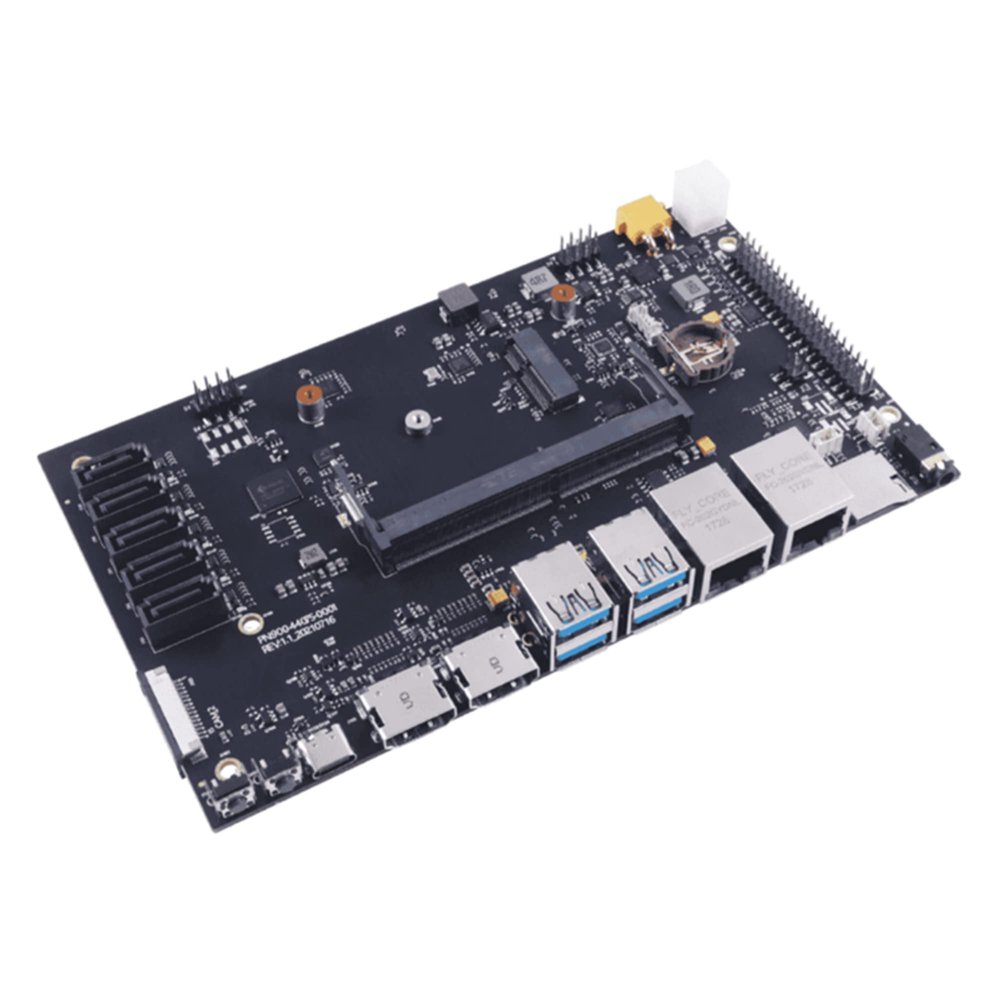

A205 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with Compact Size and Rich Ports

Description

• Rich peripheral interfaces and complete features
• Up to 6 CSI camera connection allowance
• 5 SATA allows connection to multiple hard drives
• Equipped with an anti-fall aviation plug that supports high currents
• All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration

Product introduction

FeatureA205 Carrier for Jetson Nano/NX/TX2 NX
Module CompatibilityJetson Nano/NX/TX2 NX
PCB Size/Overall Size170mm x 100mm
Display2x HDMI
Ethernet2x Gigabit Ethernet (10/100/1000M)
USB
-4x USB 3.0 Type-A (Integrated USB 2.0)
-1x USB 2.0 Type C(Support OTG)
SATA1x 5 SATA
M.2 KeyE1xM.2 Key E Interface
CSI Camera6x Camera (MIPI CSI-2 )
TF_Card1x TF_Card Slot
Audio1x Audio Jack,2 x Microphone, 2x Speaker(1W)
SPI Bus1x SPI Bus(+3.3V Level)
FAN2x Fan(12V/5V),1x FAN(5V PWM)
CAN1x CAN

Misc.
-1x System Control
-1x Power Control
-2x I2C Link (+3.3V I/O)
-1x UART(+3.3V Level)
-2x GPIO(+3.3V Level)
-2x SPI Bus(+3.3V Level)
-1x LED State

Power Requirements+13V to +19V DC Input@8A
Operating Temperature-25 to +80
