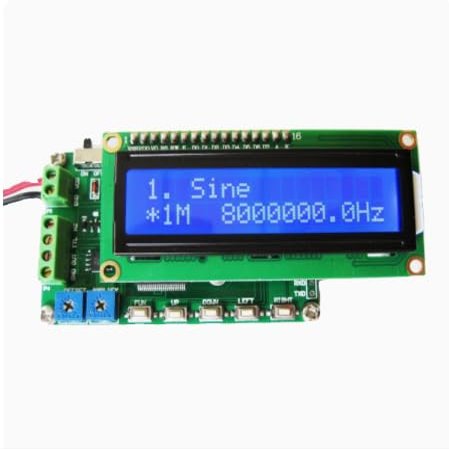

8M DDS Function Signal Generator Signal Source 60M Frequency Meter DDS820

Description

• working current<100 mA
• Dimensions 57 * 45 * 20 mm length x width x height
• 2 GND module power supply negative pole
• The positive pole of the power supply for the VDD module (7V~9V)

This module is easy to use and inputs frequency data through button operations
2 Product application:
Signal generator
Instrument calibration
DC motor control
Frequency meter
3 Technical parameter table:
Number, Project Parameters, Unit Remarks 1. Sine wave range: 0.1~8000000 Hz
2 Triangular wave range: 0.1~100000 Hz
3. Increasing wave range from 0.1 to 100000 Hz
4. Decreasing wave range from 0.1 to 100000 Hz
5 rectangular wave ranges from 0.1 to 100000 Hz with a duty cycle of 50%
6 rectangular wave duty cycle 1-99% duty cycle
7 signal amplitude 0-10 VDC maximum amplitude 5.0 Vpp
8. Measurement frequency range: 1~60M Hz
9. Frequency measurement input voltage range 0.7~10 VDC
10 working voltage 7-9 VDC
11 working current<100 mA
12 working temperature -40 ~65 Celsius
13 Storage temperature -40 ~65 Celsius
14 dimensions 57 * 45 * 20 mm length x width x height
4 Interface Description and Related Operations 5 Wiring P1 wiring definition:
Meaning of serial number symbol
The positive pole of the power supply for the VDD module (7V~9V)
2 GND module power supply negative pole
P4 wiring definition:
Meaning of serial number symbol
Input terminal for measuring frequency at 1 Hz
2 TTL high-frequency pulse output
3 OUT multiple signal outputs
4 GND power supply negative pole (ground wire)
