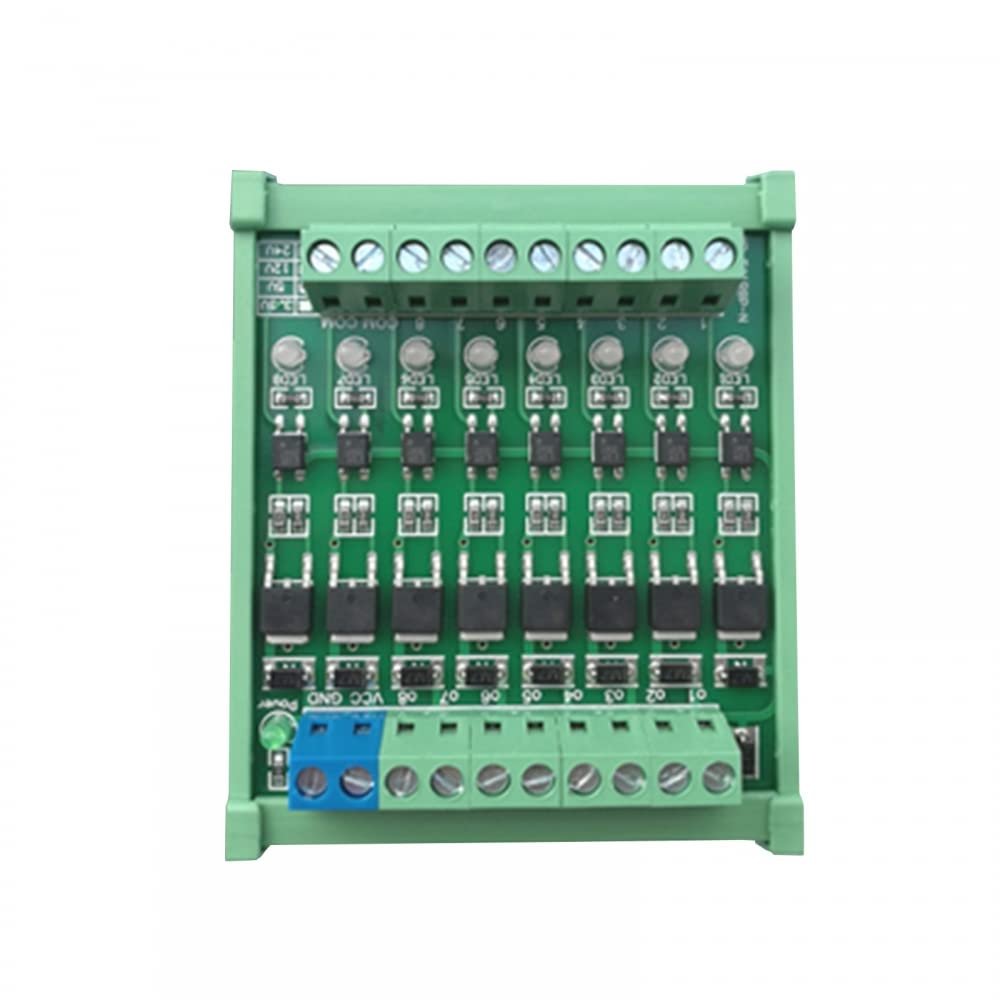

8-Channel PLC Amplifier Circuit Board, PLC Amplifier Circuit Board DC 3.3V/DC 5V Optocoupler Isolated Module

Description

• It uses high-quality transistors,superior performance,stable and reliable quality.
• Input signal optocoupler isolation,strong anti-interference ability.
• It adopts DIN35mm flame retardant shell and standard guide rail type installation design.
• It has a signal indicator and a power indicator,which can be used to see the working status of the module.
• SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service until you are satisfied.

welcome to my store, Hope you have a pleasant shopping trip!
Features:
It is a 8-channel PLC amplifier circuit board.It is compatible with positive/negative input modes.Support independent output of each channel,the maximum output capacity can reach 30V,5A.
Specifications:
Input Voltage:DC 3.3V/DC 5V
Input Current:5mA-10mA
Output Current:5A(Max)
Output Voltage:DC 5V-24V
Output Type:non-contact type
Driving Element:P/N channel field effect transistor
Action Time:1ms (Max)
Reset Time:1ms(Max)
Switching Frequency:2000Hz(Max)
Output Property:NPN output
Work Temperature:-25~85
Work Humidity:5%~95%RH
Size:87*47*39mm
Package List:
1 X 8-Channel PLC Amplifier Circuit Board
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow 1-2cm slight dimension difference due to different manual measurement.
