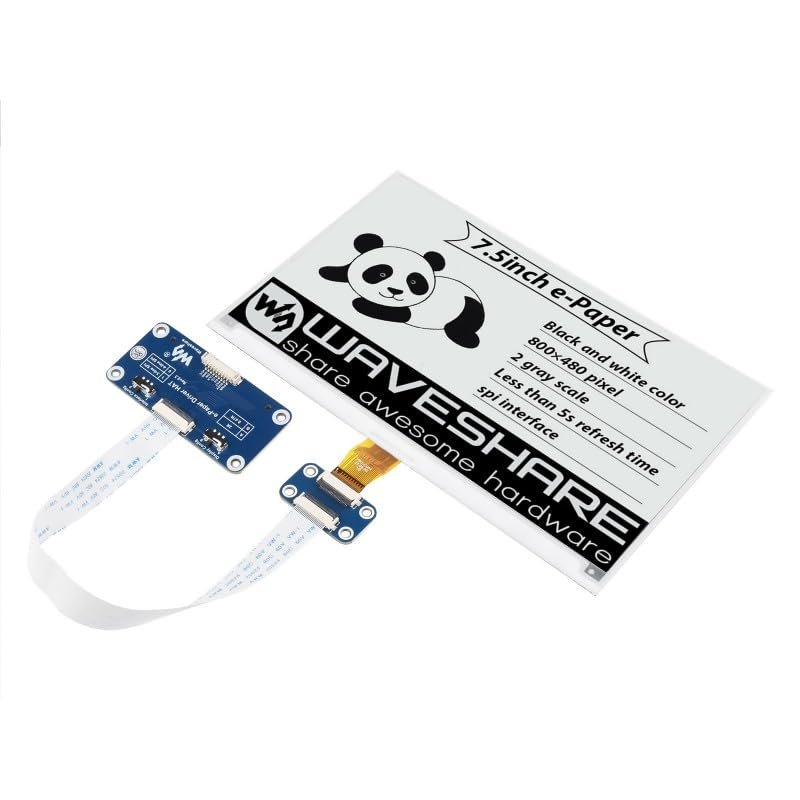

7.5inch E-Ink Display HAT Compatible with Raspberry Pi 800480 Resolution SPI Interface Paper-Like Displaying Without Electricity

Description

• This is an official E-Ink display of Waveshare.This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display, MED.
• No backlight, keeps displaying last content for a long time even when power down.The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement.
• Ultra low power consumption, basically power is only required for refreshing.The E-paper screen still has high visibility with a wide viewing angle of 180 degrees. It is the ideal choice for E-reading.
• SPI interface, for connecting with controller boards like RPi/Jetson Nano/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V / 5V MCUs.Comes with development resources and manual (examples for RPi/Jetson Nano/Arduino/STM32)

Parameter
Dimensions: 7.5inch
Outline Dimension (Driver Board): 65.0mm 30.2mm
Display Dimension: 163.2mm 97.92mm
Outline Dimension (Raw Panel): 170.2mm 111.2mm 1.18mm
Outline Dimension (Screen): 177.2mm 118.2mm
Operating Voltage: 3.3V / 5V (Both power supply and signal need to be 5V.)
Communication Interface: SPI
Dot Pitch: 0.205mm 0.204mm
Resolution: 800 480
Display Color: Black, White
Grey Scale: 2
Refresh Time: 5s
Refresh Power: 26.4mWtyp.
Standby Current: <0.01uA (close to 0)

Package Content
7.5inch e-Paper
7.5inch e-Paper x1
7.5inch e-Paper HAT
7.5inch e-Paper x1
e-Paper Driver HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1
