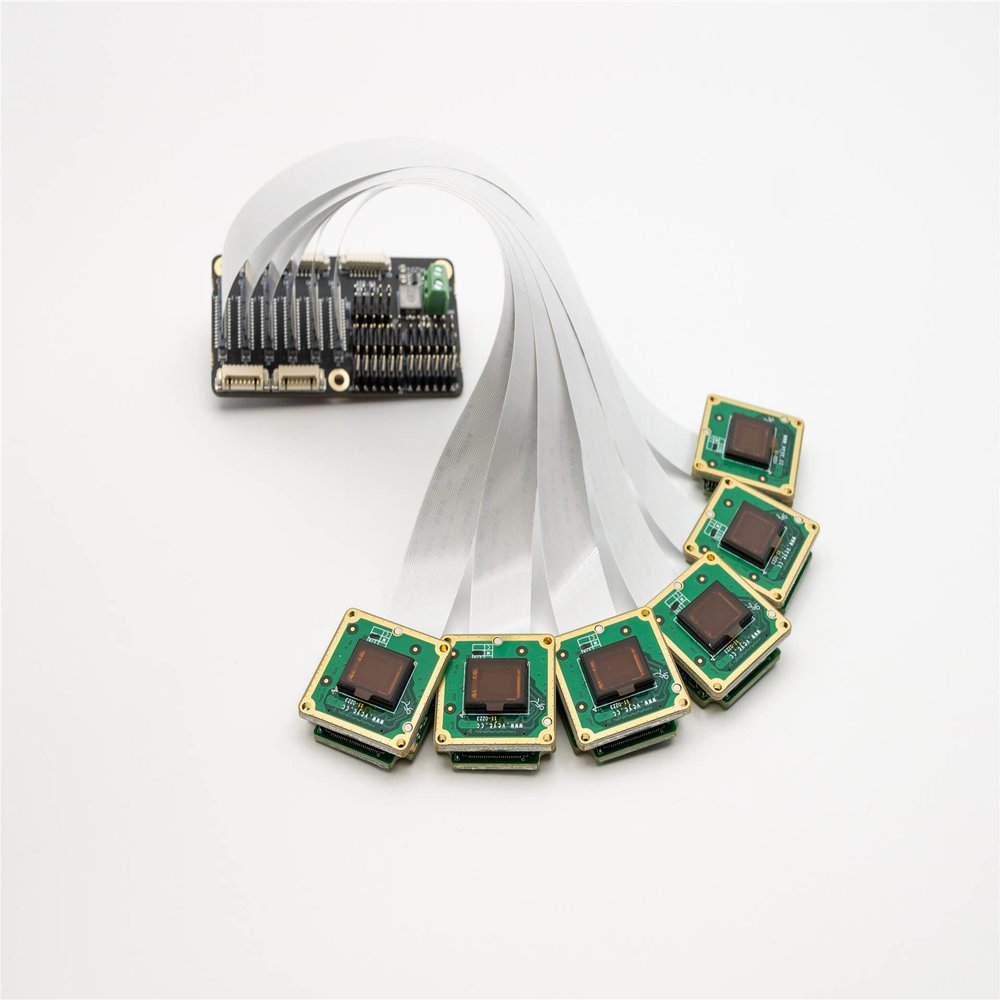

6MP Machine Vision MIPI CSI-2 Camera, MV-XAVIER-ORIN-6CAM-IMX178M for Jetson AGX-Xavier,Orin and TX2 Devkit

Description

• 6M Pixel IMX178LLR-C Rolling Shutter Sensor
• Has a small size and rich functions
• Open source driver and demo.Support Jetson AGX XAVIER,AGX ORIN,TX2
• Hardware and Software trigger source
• Suitable for machine vision,Pls refer to veye.cc for more info

Package List n*MV-MIPI-IMX178M 1*ADP-N4 n*C-MOUNT01 Screws and Cables
Product introduction
MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPI interface.
This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component. 6M Pixel SONY STARVIS CMOS SENSOR MIPI CSI-2 Interface Mono-8,Mono-10,Mono-12 Data Format Video streaming mode,Trigger modeHigh-speed continuous trigger mode Hardware and Software trigger source Support trigger frame number, interval, delay, trigger filter function Strobe synchronization ROI Flexible frame rate settings

Technical Details
Shutter Mode: Rolling Shutter
Sensor: IMX178LLJ-C
Color: MONO
Image Size: 1/1.8''
Unit Cell Size: 2.4um*2.4um
Resolution: 3088*2064
Max Frame Rate: 3088*2064 @ 22.3fps
Gain: 0 dB to 24 dB: Analog Gain (0.1 dB step)
24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
Exposure Time: <= 1/max frame rate
Shutter Mode: AE,ME,AE Once
ISP: Bad Pixel Correction,8bit GAMMA,User Lookup Table
ADC: 12 bit
Pixel Format: Mono8,Mono10,Mono-12,UYVY 8bit
Working Mode: Hardware Trigger,Software Trigger,Video streaming mode
Trigger Mode: Trigger Filtering,Trigger Delay,Trigger Polarity Control
Strobe Mode: Strobe Output Control,Strobe Delay,Strobe Polarity Control
