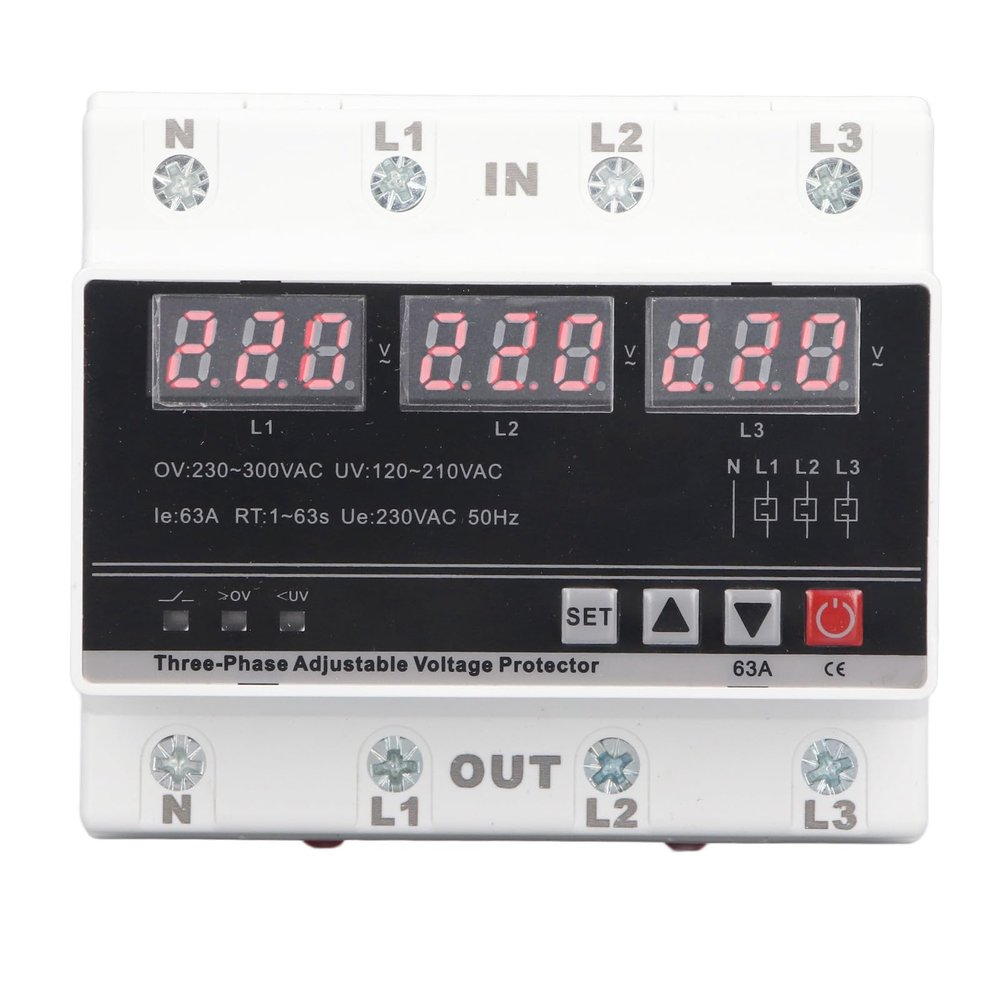

63A 3 Phase Adjustable Voltage Protector with Automatic Reset, Over Under Voltage, LED Display, DIN Rail Mounting AC120V300V

Description

• AUTOMATIC RESET: This adjustable protector has an automatic reset function to prevent prolonged power outages and respond quickly to prevent undervoltage hazards.
• DEVICE : Can effectively avoid equipment damage caused by high voltage at the moment of power on or short period of power off and flashing.
• MULTIPLE : Equipped with over under voltage , voltage imbalance , phase fault and phase failure , overcurrent , etc.
• 3 DIGITAL PANELS: The digital panel displays the working voltage in real time, clear and intuitive, with complete buttons to ensure simple and convenient
• DIN RAIL MOUNTING: This protector uses standard 35mm DIN rail mounting, convenient and sturdy, with quick response speed and sensitive internal components.

1. AUTOMATIC RESET: This adjustable protector has an automatic reset function to prevent prolonged power outages and respond quickly to prevent undervoltage hazards.
2. DEVICE : Can effectively avoid equipment damage caused by high voltage at the moment of power on or short period of power off and flashing.
3. MULTIPLE : Equipped with over under voltage , voltage imbalance , phase fault and phase failure , overcurrent , etc.
4. 3 DIGITAL PANELS: The digital panel displays the working voltage in real time, clear and intuitive, with complete buttons to ensure simple and convenient operation.
5. DIN RAIL MOUNTING: This protector uses standard 35mm DIN rail mounting, convenient and sturdy, with quick response speed and sensitive internal components.

Spec:
Item Type: Adjustable Voltage Protector
Model: CHLT 616
Material: PC
Rated Power Supply Voltage: AC230V
Working Voltage Range: AC120V-300V
Rated Frequency: 50/60Hz
Overvoltage Detection Value: 230-300V (factory set 270V)
Undervoltage Value: 120V-210V (factory set 170V)
Recovery Delay: 1-600s (factory set 30s)
Overcurrent Value: 1-63A (factory set 63A)
3 Phase Voltage Imbalance Recovery Value: 5V-95V (factory set 10V)
Phase Sequence Switch: ON OFF (factory set ON)
Display Type: LED
Voltage Measurement Accuracy: 1% (within the entire range)
Rated Insulation Voltage: 450V
Level: IP20
Pollution Level: 3
Altitude: Working Temperature: -5-40
Humidity: 50% or 40 (non condensing)
Storage Temperature: -25-55
Installation: 35mm Rail

How to Use:
Please use according to the wiring diagram.

PackageList:
1 x Adjustable Voltage Protector
