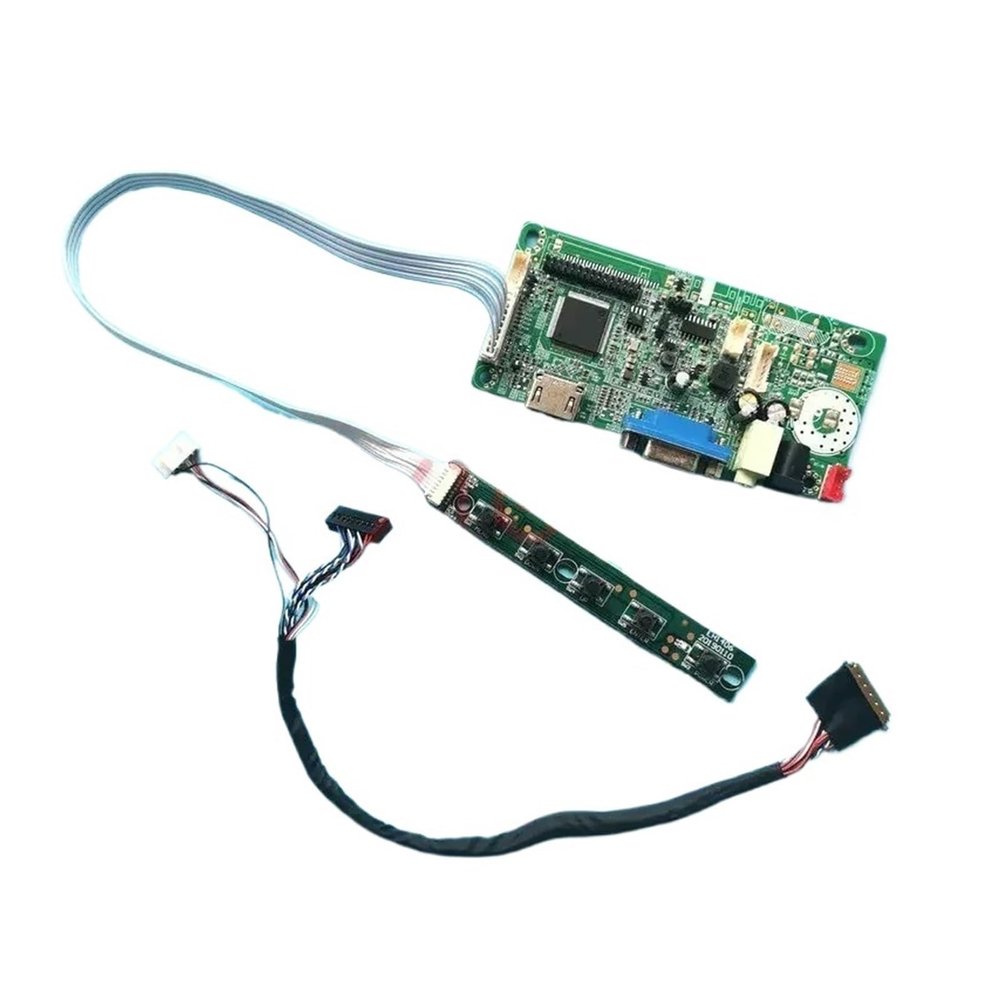

58C Driver Controller Board for LP101WSA-TLA1/TLB1/TLN1/TLP1 1024x600 HDMI-Compatible Laptop Matrix VGA LVDS 40Pin 10.1" DIY Kit(for LP101WSA(TL)(A1))

Description

• Powerful signal conversion function: It can convert analog signals output by the computer host into digital signals, and also convert between different digital signals.
• Clear and stable image display: The main control chip on the driver board controls the image display based on the LCD screen data stored in the MCU microcontroller, which can effectively ensure the clarity and stability of the image.
• High resolution support: It can provide users with clearer and more delicate images, whether watching high-definition videos, designing graphics, or playing games, it can bring excellent visual experience.
• Good maintainability: Users with certain circuit knowledge can easily repair, reducing maintenance costs and difficulty.
• 58C Driver Controller Board For LP101WSA-TLA1/TLB1/TLN1/TLP1 1024x600 HDMI-Compatible Laptop Matrix VGA LVDS 40Pin 10.1" DIY Kit

Battery, charger, power adapter, screen replacement, safety lock, screen protector, heat sink, external fan, solid-state drive, adapter, external keyboard, headphones, protective case, keyboard film, bracket, wireless mouse, power bank, USB hub, docking station, internal storage
Instructions for purchasing this kit:
1, Before purchasing, Please ensure that your screen model is exactly the same as the model in our list, and that the screen itself can be turned on and displayed normally. If your screen is damaged, please do not place an order as this kit cannot repair and drive damaged screen.
2, If your screen model is not in our product list. Please provide us with the complete screen model to confirm the suitable kit (This is very important, Wrong purchase may lead to unusable). The model label can be found on the back of the screen panel. As shown in the following photo:
3, Power adapter input: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Please note: Do not use a power adapter with voltage exceeding 12V, as this will damage the circuit board.
4, This controller board kit is only suitable for LED screen of LVDS 40-Pin signal ports. When the correct signal input is not detected. After about 5 seconds, it will automatically enter standby mode. The indicator light changed from green to red. As shown in the following photo:
5, The kit includes:
1Pcs x Controller motherboard
1Pcs x LVDS 40-Pin signal cable
1Pcs x Keyboard with cable
In addition to the products included in the kit, you may also need the following accessories:
DC 12V 3A Power adapter and HDMI or VGA signal cable.
Please note:that there are two versions of the controller motherboard, with the same functionality. We will configure according to your screen model.
6, Please refer to the photos below for screen cable connections and language settings. (OSD menu has multiple interfaces. If different, please contact us)
==========
Part Numb
