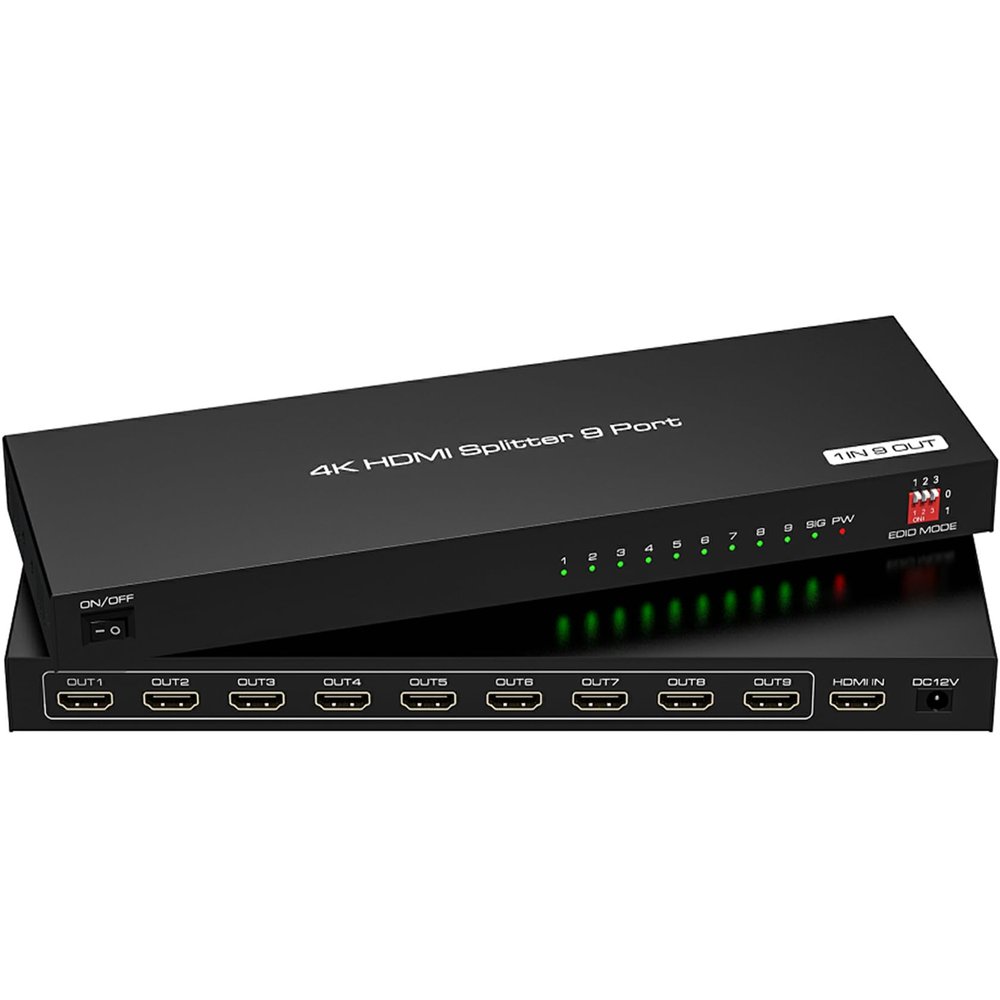

4K 60Hz HDMI Splitter 1x 9 Video Distributor Converter 1 in 9 Out Multi-Screen Display Screen Share Support EDID Resolution Management Function 1 PC to Several Monitor

Description

• 1If your screen comes with splicing function, then it supports connecting the splicing screen project to recognise the resolution automatically. Can support 9 TVs to display the same picture at the same time.
• 2Long-distance transmission built-in signal amplification, support for 30M long-distance transmission, (more than 10M wires need to be amplified with a chip). Support input 15M distance, output 15M distance.
• 3Audio synchronous transmission, HDMI interface supports audio synchronous transmission, (does not support independent audio separation).
• 4EDID resolution management function, to solve the compatibility problem of displaying between different resolutions of TV. 4K picture is clearer, support up to 4K60Hz backward compatible with 1080P.
• 5Plug and play, pure hardware design, no driver software required.

Features Support 1 HDMl input source to 9 HDMI sink output.Resolution reach up to 4K30Hz. Support Blue-Ray 24/50/6Ofps/HD-DVD/xvYCC. Digital audio format, as DTS-HD/Dolby-trueHDILPCM7.1/DTS/Dolby-AC3/DSD.Easy to install. DC 12v power supply. Support for EDID management. Specifications HDMl resolution:4K30-420,3D/1080p/1080i/720p/576p/576i/480p/480i Support video color format :8bit Support audio format :DTS-HD/Dolby-trueHDILPCM7.1/DTS/Dolby-AC3/DSD Max bandwidth:165MHz Max baud rate:4.95Gbps Input/Output TMDS signal:0.51.5Volts p-p(TTL) Input/Output DDC signal :5Volts p-p (TTL) Input cable distance:10m AWG26 HDMl standard cable sitance Output cable distance :10m AWG26 HDMl standard cable Max working current:12V/950MA(9PORT) Power adapter format Input:AC (50HZ,60HZ) : 100V-240V Operating Temperature range:(-0 to +40C) Operating Humidity range:5 to 90%RH(No Condensation) Storage Temperature :-20C60C/ -4F 140F Dimension (Lx Wx H) :265x83.5x22(mm) Net Weight:455g Package Contents 1.9-Port HDMl Splitter:1set 2.DC12V Power Adaptor:1pcs 3. User manual:1pcs
