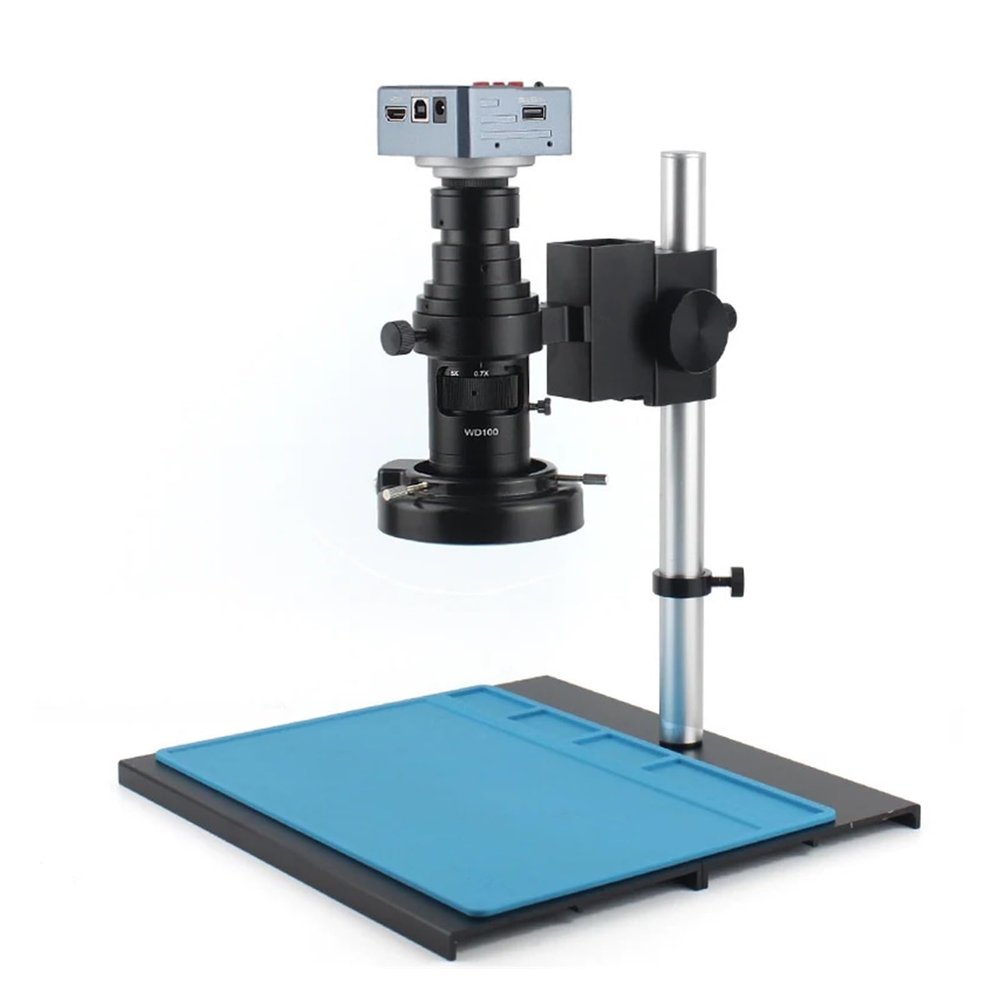

4K 48MP Ultra HD 1080P HDMI USB Digital Video Microscope Camera 200X C-Mount Lens Professional Phone PCB Soldering Repair Tools(A Suit)

Description

• 4K 48MP Ultra HD camera for clear and detailed images and videos
• 1080P resolution for high-definition viewing experience
• HDMI and USB connectivity for easy and convenient use
• Equipped with a 200X C-Mount Lens for professional-level magnification
• Ideal for phone PCB soldering repair and other professional tasks

Key Feature:
overall dimension : 66*66*40mm
Video Interface:HDMI USB-PC
Video Interface:4K @30FPS 1080p@60FPS
USB-PC output of display resolution:4K @25FPS
Udisk video resolution:4K @30FPS 1080p@60FPS
Lens:CS
working voltage:DC12V
working current : 200mA
optical format : 1/2"
pixel size : 2um*2um
Pixel array : 4K 3840*2160
TV Lines : 2000TVLine
FPS : 4K @30FPS 1080p@60FPS
scanning mode : progressive
shutter mode : electronic shutter
dynamic range : 78dB
S/N radio : 40dB
OSD language : Chinese / English
AWB mode : Primary White Balance/Manual/Auto
Cross line : Support 20 cross lines, color/line width/position/horizontal and vertical adjustable
B/W :
negative :
mirror flip :
Freeze :
10X-200X WD100 C-MOUNT Lens:
200x Feature
Working distance:100mm -175mm
Connector:C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 10 - 200X on the display)
Eyepiece lens adapter:0.4X
Fixed position:50mm
Locking:0.7X - 5X Locking
Auxiliary Objective Lens Thread:42mm
Size:132mm(L) * 55mm(DIA)
A set :include(SKU picture shall prevail)
1 x WD100C-mount Lens
1 x Camera Stand
1 x 4K microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x LED Ring Light
1 x work mat
B set :include(SKU picture shall prevail)
1 x WD100C-mount Lens
1 x Camera Stand
1 x 4K microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI Lines
1 x LED Ring Light
